2. 52 Typing Mechanism (continued)

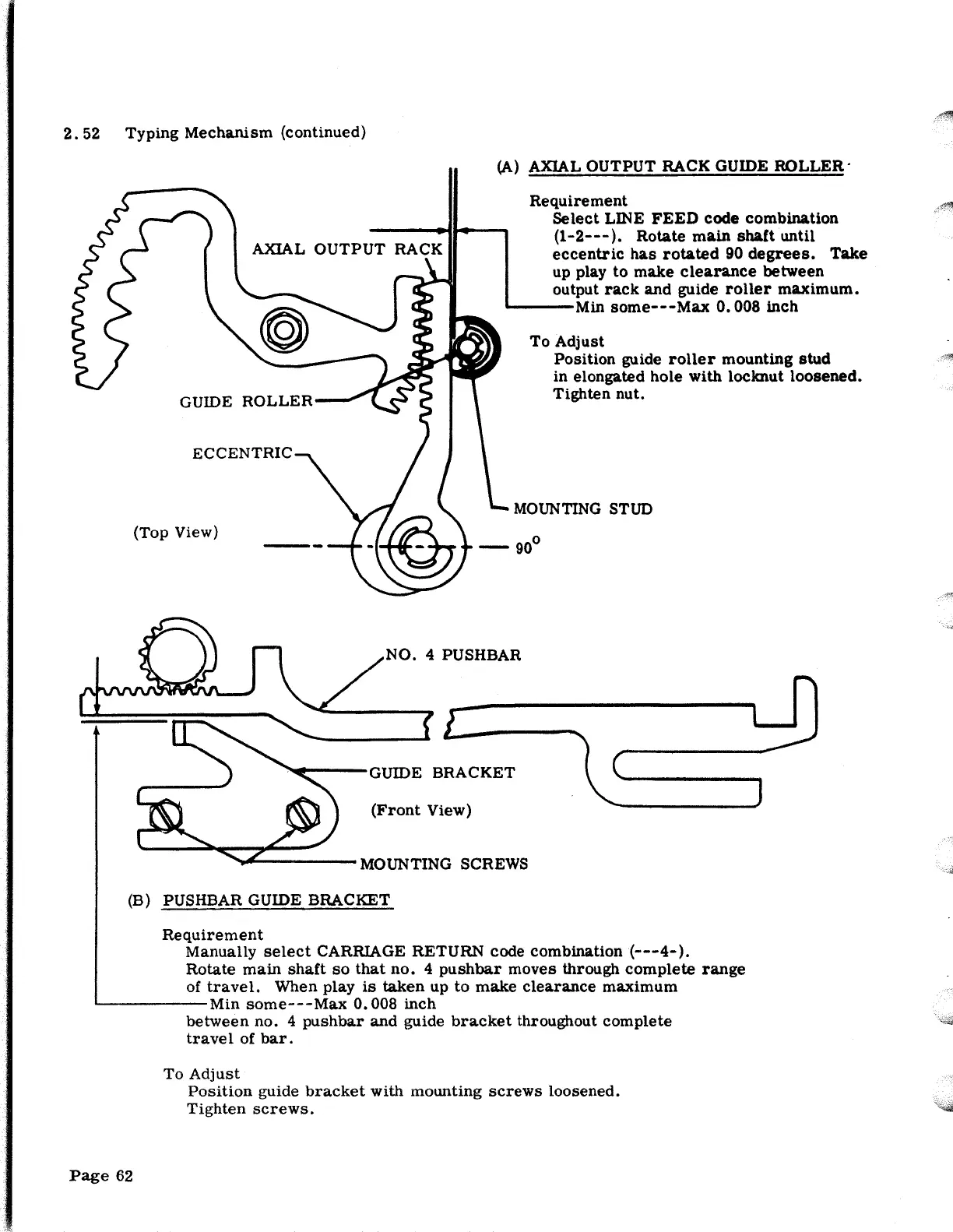

(A) AXIAL OUTPUT RACK GUIDE ROLLER·
Requirement
Select LINE FEED code combination
(1-2--- ). Rotate main shaft until
eccentric has rotated 90 degrees. Take
up play to make clearance between
output rack and guide roller maximum •
.__--Min some---Max 0. 008 inch
To Adjust
Position guide roller mounting stud
in elongated hole with locknut loosened.
Tighten nut.
ECCENTRIC
MOUNTING STUD
(Top View)
NO. 4 PUSHBAR
~.... GUIDE BRACKET
(Front View)
',1 MOUNTING SCREWS
(B) PUSHBAR GUIDE
BRACKET
Requirement
Manually select CARRIAGE RETURN code combination (---4- ).
Rotate main shaft so that no. 4 pushbar moves through complete range
of travel. When play is taken up to make clearance maximum
'-------Min some---Max 0. 008 inch
Page 62
between no. 4 pushbar and guide bracket throughout complete
travel of bar.
To Adjust
Position guide bracket with mounting screws loosened.
Tighten screws.
