Teletype 28 - Page 67

ISS 8, SECTION 573-118-700TC

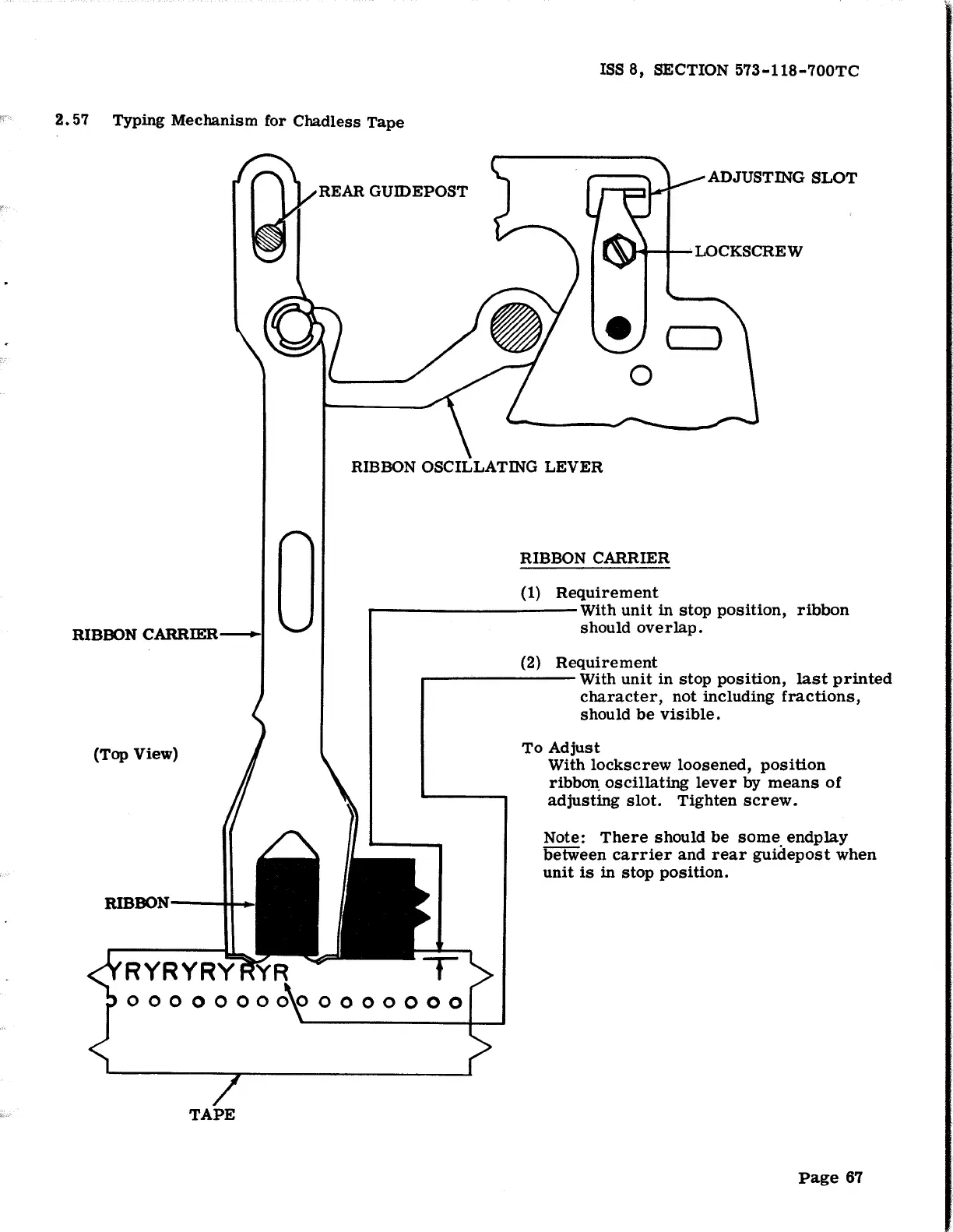

2. 57 Typing Mechanism for Chadless Tape
RIBBON CARRIER
(Top View)
RIBBON II •
RYRYRY
TAPE
ADJUSTING SLOT
REAR GUIDEPOST
I • I · LOCKSCREW
C:J
RIBBON OSCILLATING LEVER
RIBBON CARRIER
(1) Requirement
r-----------With unit in stop position, ribbon
should overlap.
(2) Requirement
.---------With unit in stop position, last printed
character, not including fractions,
should be visible.
To Adjust
With lockscrew loosened, position
ribbon. oscillating lever by means of
adjusting slot. Tighten screw.
Note: There should be some endplay
between carrier and rear guidepost when
unit is in stop position.
Page 67
