ISS 8, SECTION 573-118-700TC

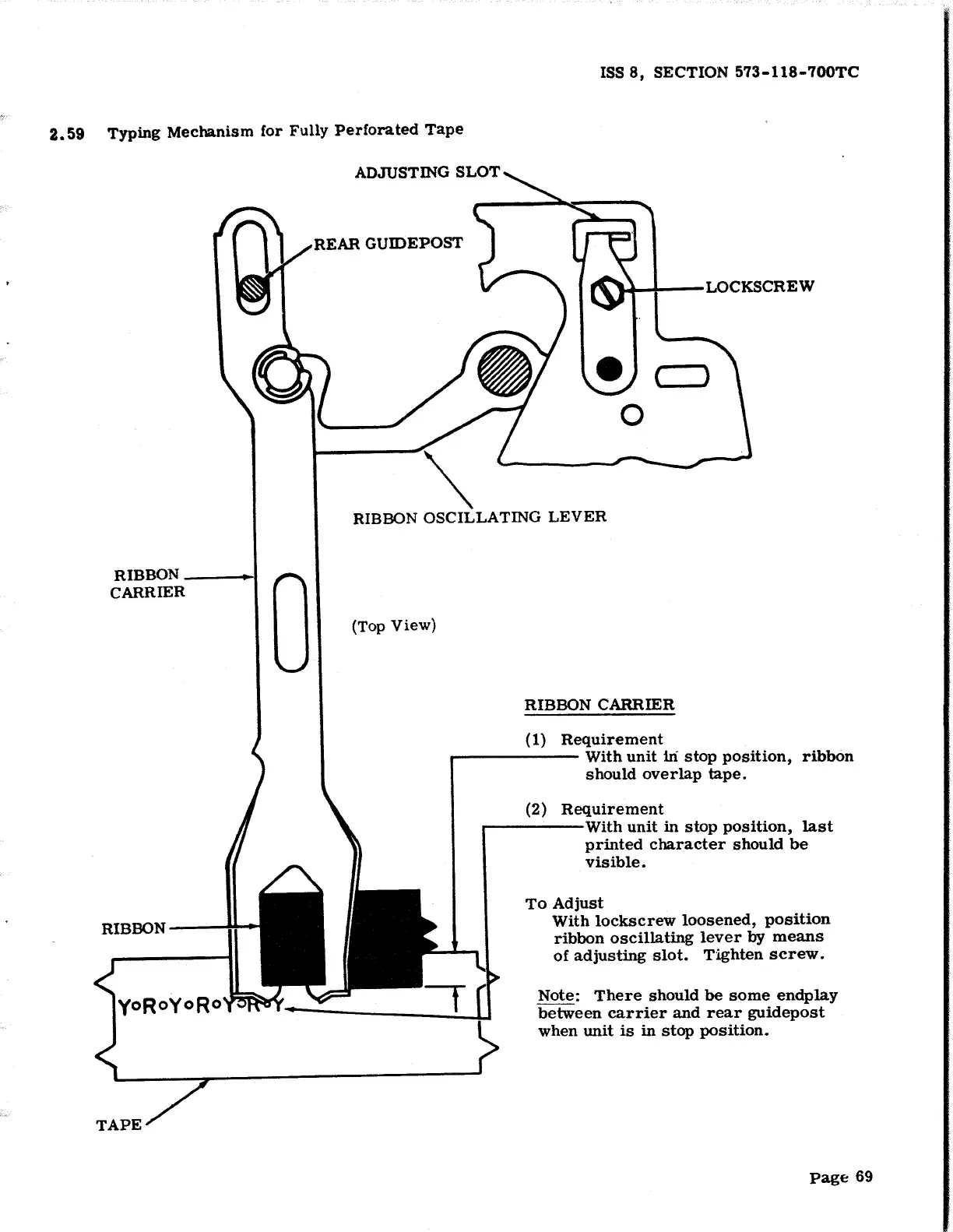

2. 59 Typing Mechanism for Fully Perforated Tape
RIBBON I
CARRIER
RIBBON
!! •
ADJUSTING SLOT
REAR GUIDEPOST
1 ~ I LOCKSCREW
r=>
RIBBON OSCILLATING LEVER
(Top View)
RIBBON CARRIER
( 1) Requirement
------- With unit iii stop position, ribbon
should overlap tape.
(2) Requirement
---With unit in stop position, last
printed character should be
visible.
To Adjust
With lockscrew loosened, position
ribbon oscillating lever by means
of adjusting slot. Tighten screw.
Note: There should be some endplay
between carrier and rear guidepost
when unit is in stop position.
Page 69
