Teletype 28 - Page 71

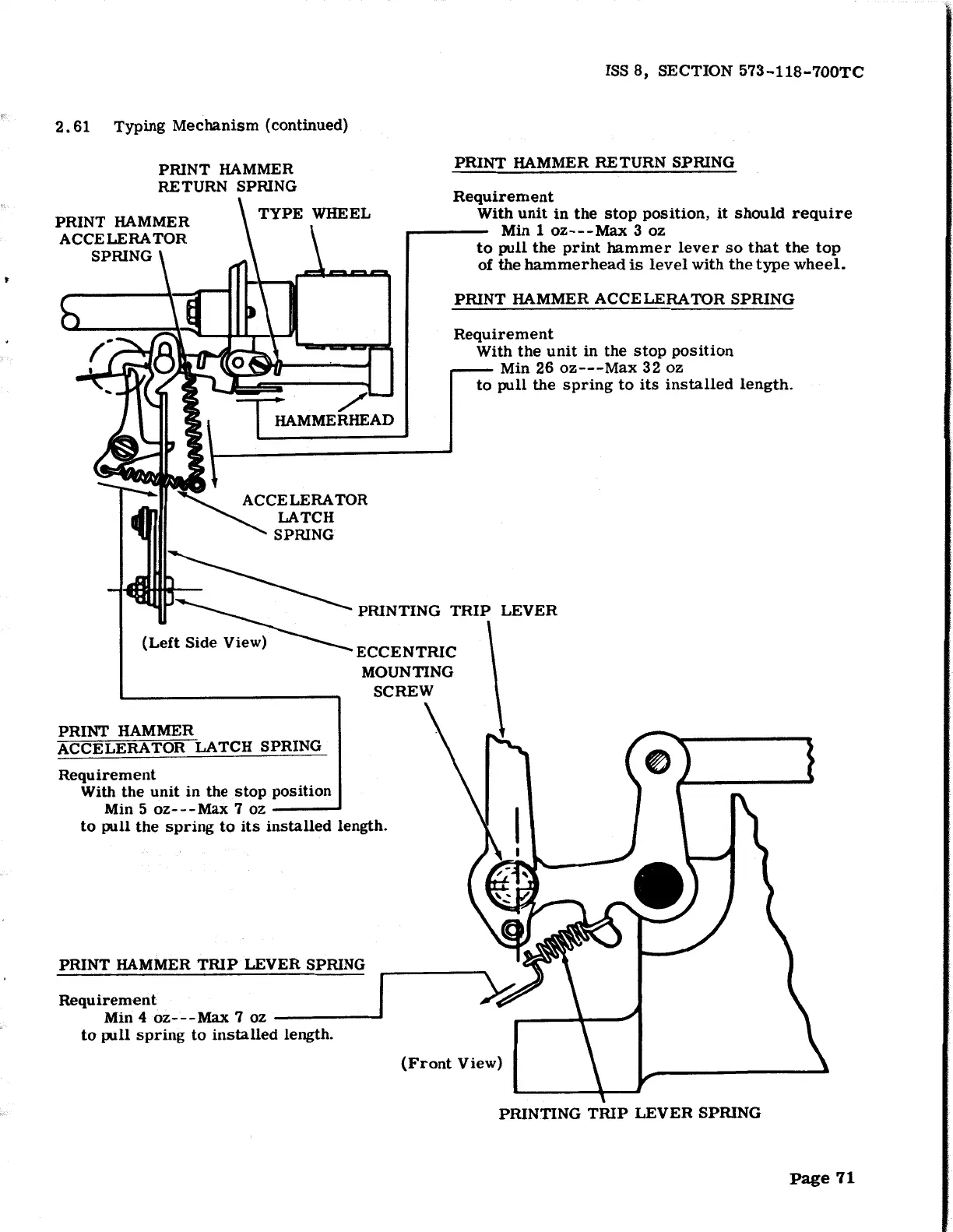

2. 61 Typing Mechanism (continued)
PRINT HAMMER
RETURN SPRING
PRINT HAMMER
ACCELERATOR
SPRING
/
HAMMERHEAD
ACCELERATOR
LATCH
SPRING
ISS
8, SECTION 573-118-700TC
PRINT HAMMER RETURN SPRING
Requirement
With unit in the stop position, it should require
Min 1 oz---Max 3 oz
to pull the print hammer lever so that the top
of the hammerhead is level with the type wheel.
PRINT HAMMER ACCELERATOR SPRING
Requirement
With the unit in the stop position
Min 26 oz---Max 32 oz
to pull the spring to its installed length.
PRINTING TRIP LEVER
PRINT HAMMER
ACCELERATOR LATCH SPRING
Requirement
With the unit in the stop position
Min 5
oz--- Max 7 oz ___ _.
ECCENTRIC
MOUNTING
SCREW
to pull the spring to its installed length.
PRINT HAMMER TRIP LEVER SPRING
Requirement
Min 4 oz- --Max 7 oz ------'
to pull spring to installed length.
(Front View)
PRINTING TRIP LEVER SPRING
Page 71
