ISS 8, SECTION 573-118-700TC
2. 63 Typing Mechanism for Fully Perforated Tape (continued)
Note: Adjustments on this page do not apply to tape printer.

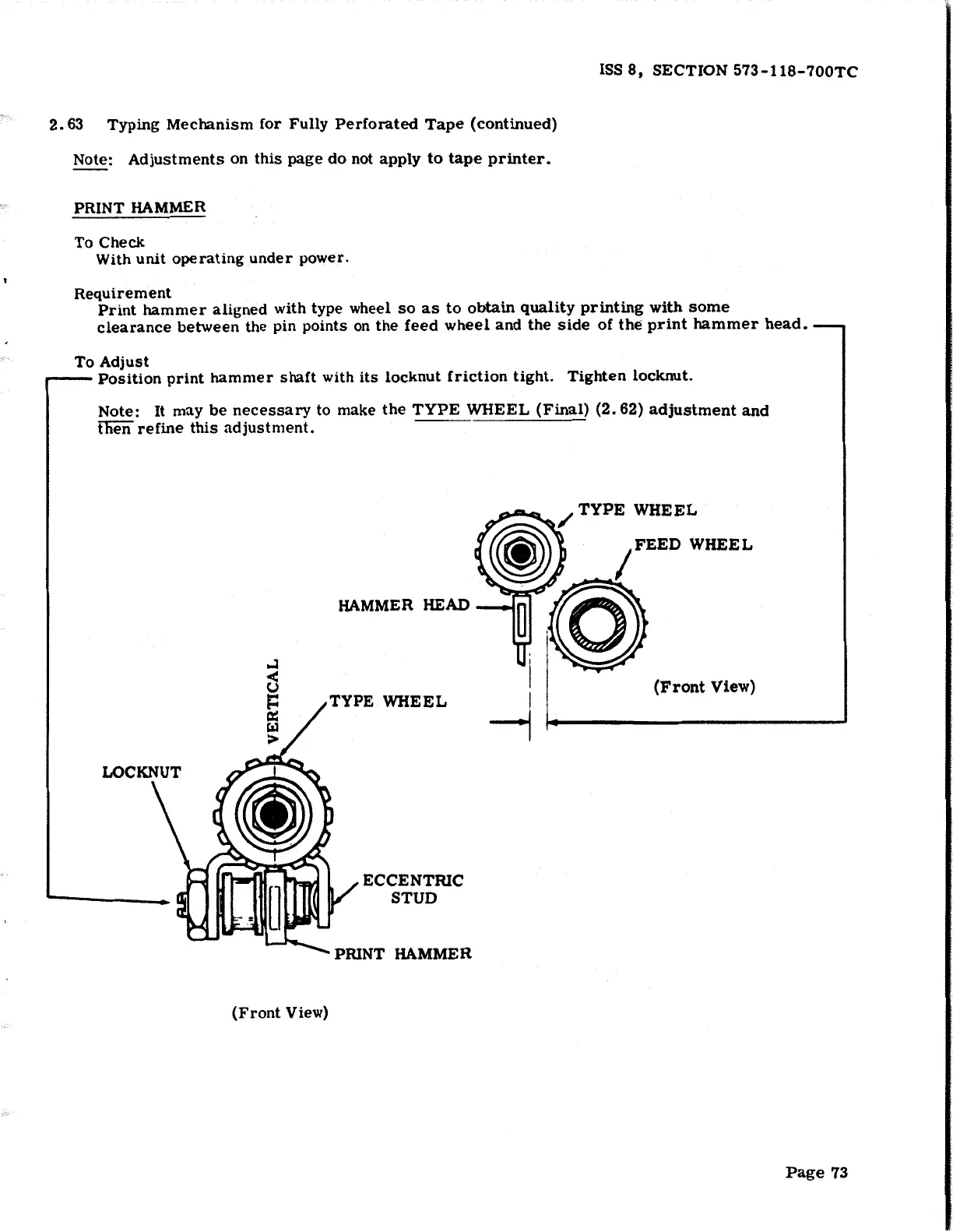

PRINT HAMMER
To Check
With
unit operating under power.
Requirement
Print hammer aligned with type wheel so as to obtain quality printing with some
clearance between the pin points on the feed wheel and the side of the print hammer head.
To Adjust
.---- Position print hammer shaft with its locknut friction tight. Tighten locknut.
Note: It may be necessary to make the TYPE WHEEL (Final) (2. 62) adjustment and
then refine this adjustment.
(Front View)
HAMMER
HEAD
TYPE WHEEL
ECCENTRIC
STUD
PRINT HAMMER
(Front View)
Page 73
