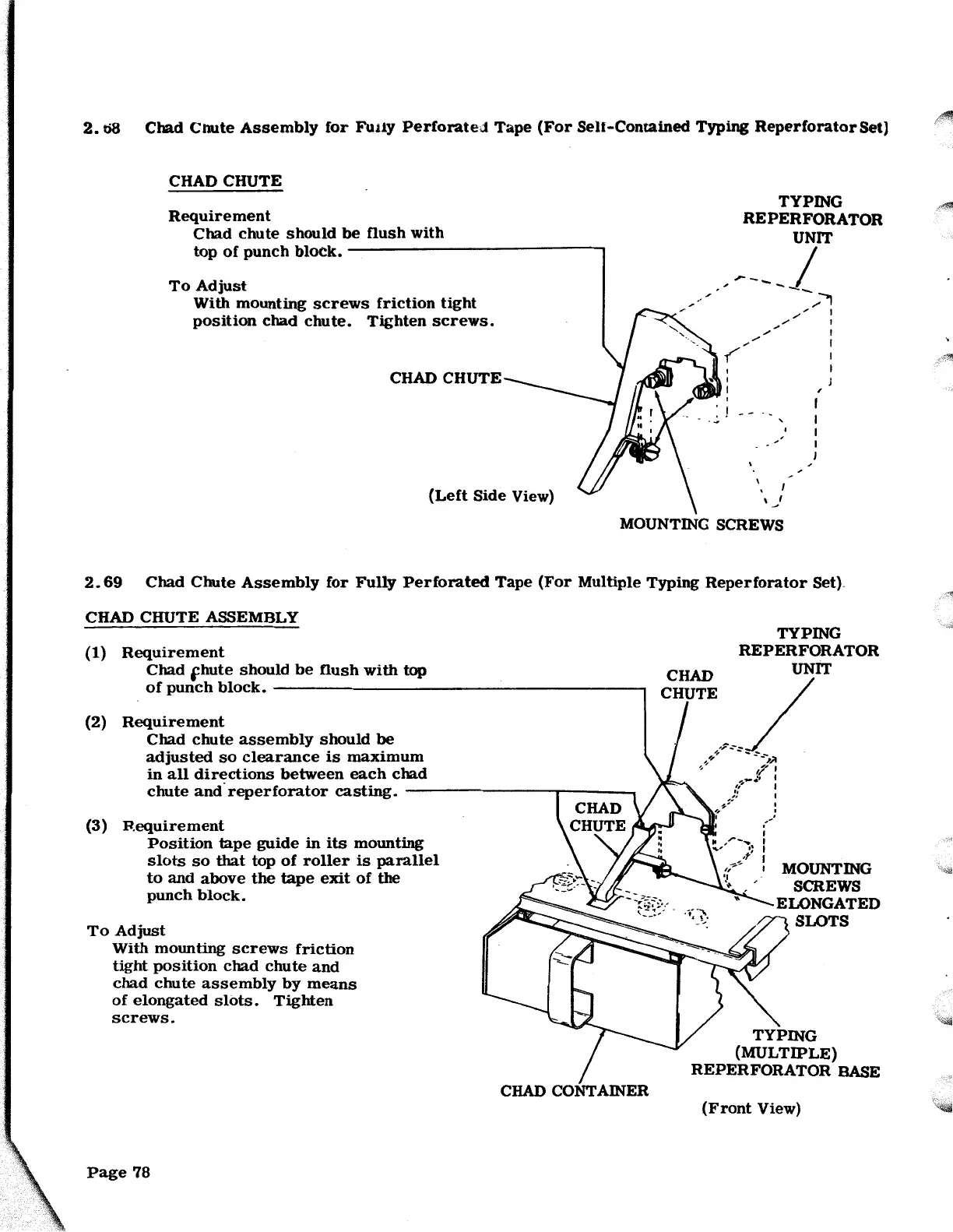

2. ti8 Chad cnute Assembly for FuHy PerforateJ Tape (For Sell-Contained Typing ReperforatorSet)
CHAD CHUTE
Requirement
Chad chute should be flush with
top of punch block. --------------,
To Adjust
With mounting screws friction tight
position chad chute. Tighten screws.
CHAD CHUTE
(Left Side View)
TYPING
REPERFORATOR
UNIT
~-- I
. , - ----,.-,
,.
{" ..
I
!
,,/ I
.. ....
/
,'
I
' I
,
MOUNTING SCREWS
2. 69 Chad Chute Assembly for Fully Perforated Tape (For Multiple Typing Reperforator Set).
CHAD CHUTE ASSEMBLY
(1) Requirement
Chad fhute should be flush with top
ofpunchblock. ---------------------~
(2) Requirement
Chad chute assembly should be
adjusted so clearance is maximum
in all directions between each chad
chute and· reperforator casting. ---------r-----.
(3) Requirement
Position tape guide in its mounting
slots so that top of roller is parallel
to and above the tape exit of the
punch block.
To Adjust
With mounting screws friction
tight position chad chute and
chad chute assembly by means
of elongated slots. Tighten
screws.
Page 78
CHAD CONTAINER
TYPING
REPERFORATOR
CHAD UNIT
CHUTE"--./
,," - ~--.,;.
< ,f' I
,,
!I
,.-J• I
tl' I
J:
of: ..
MOUNTING
SCREWS
ELONGATED
SLOTS
TYPING
(MULTIPLE)
REPERFORATOR BASE
(Front View)
