Teletype 28 - Page 9

or the multiple reperforator base, refer to the
applicable sections for the additional adjust-
ments.
1. 12 To facilitate adjustments, remove typing
reperforator from base. For typing
reoerforator equipped with one-shaft mechanism,
MAIN SHAFT ASSEMBLY
ISS
8, SECTION 573-118-700TC
refer to Section 573-118-702TC for disassembly
and reassembly routines for the 28 typing
reperforator. For typing reperforator equipped
with two-shaft mechanism, refer to Section
573-117-702TC for disassembly and reassembly
routines for the 28 perforator transmitter
base.
REMOTE CONTROL
BLANK
TAPE FEED OUT
'MECHANISM

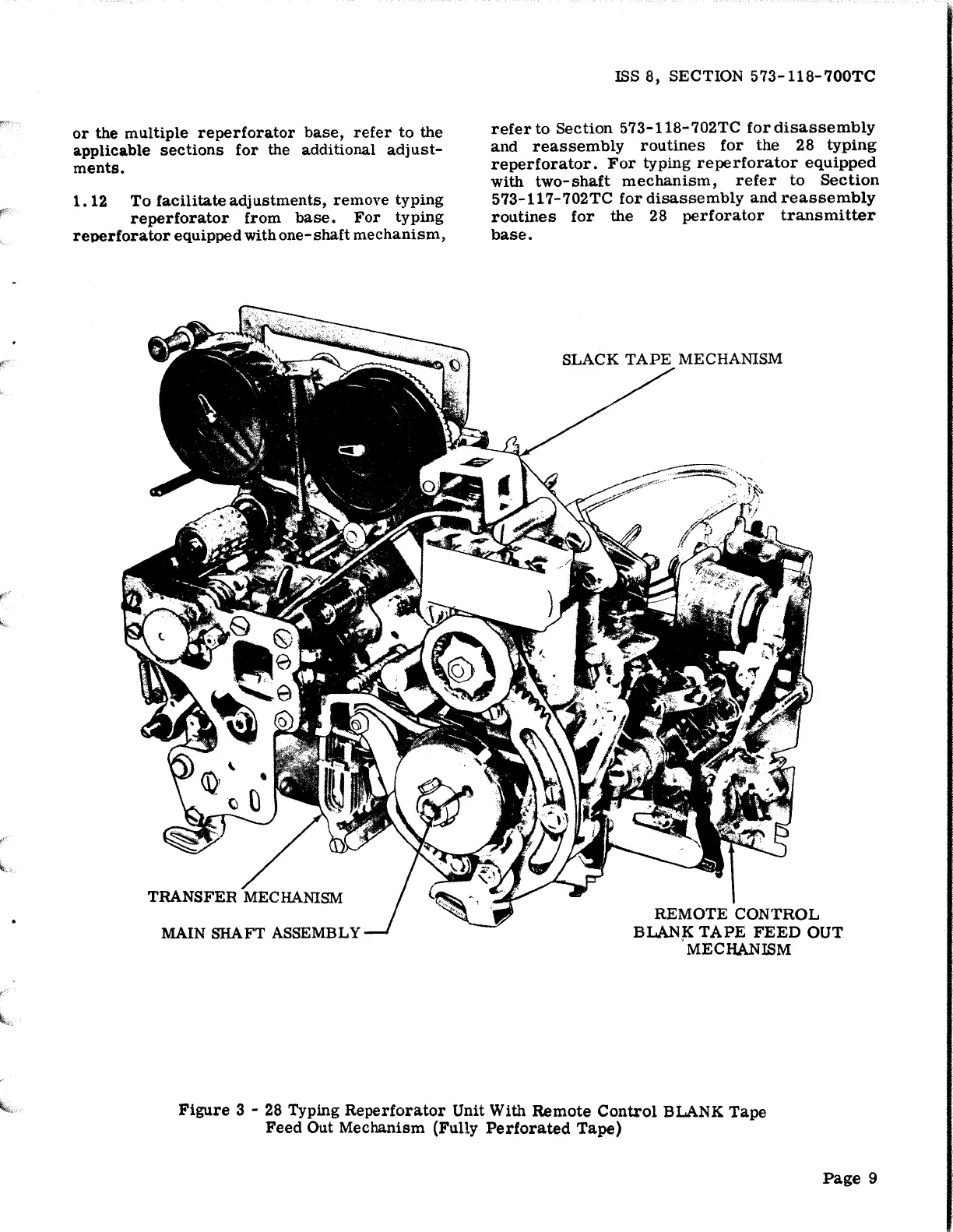

Figure 3 - 28 Typing Reperforator Unit With Remote Control BLANK Tape
Feed Out Mechanism (Fully Perforated Tape)
Page 9
