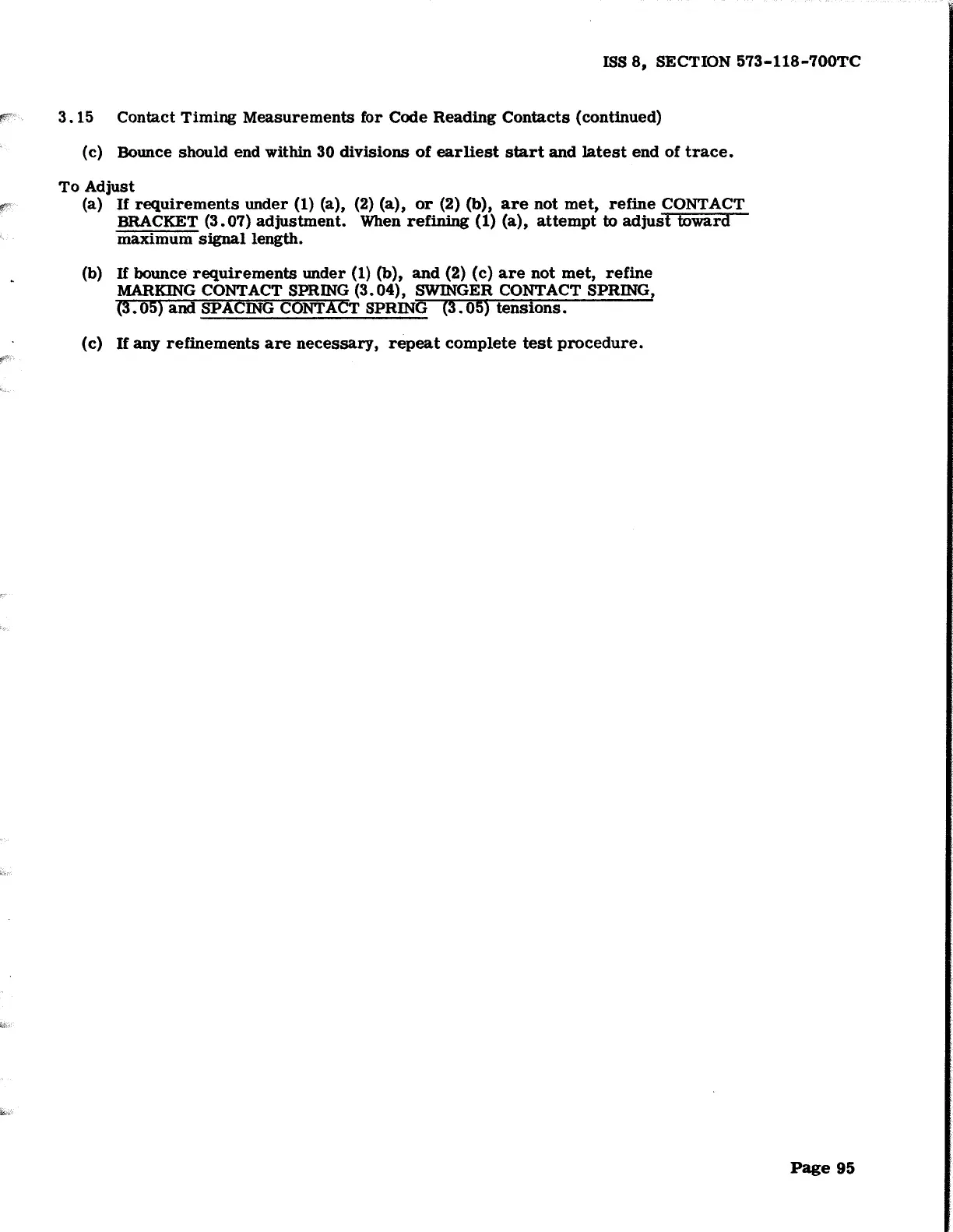

ISS 8, SECTION 573-118-700TC
3. 15 Contact Timing Measurements for Code Reading Contacts {continued)
(c) Bounce should end
within 30 divisions of earliest start and latest end of trace.
To Adjust
(a)
If requirements under (1) (a), (2) (a), or (2) (b), are not met, refine CONTACT
BRACKET (3.07)
adjustment. When refining (1) (a), attempt to adjust toward
maximum signal length.
(b) If bounce requirements under (1) (b), and (2) (c) are not met, refine
MARKING CONTACT SPRING (3. 04), SWINGER CONTACT SPRING,
(3.05)
and SPACING CONTACT SPRING (3.05) tensions.
(c) If any refinements are necessary, repeat complete test procedure.
