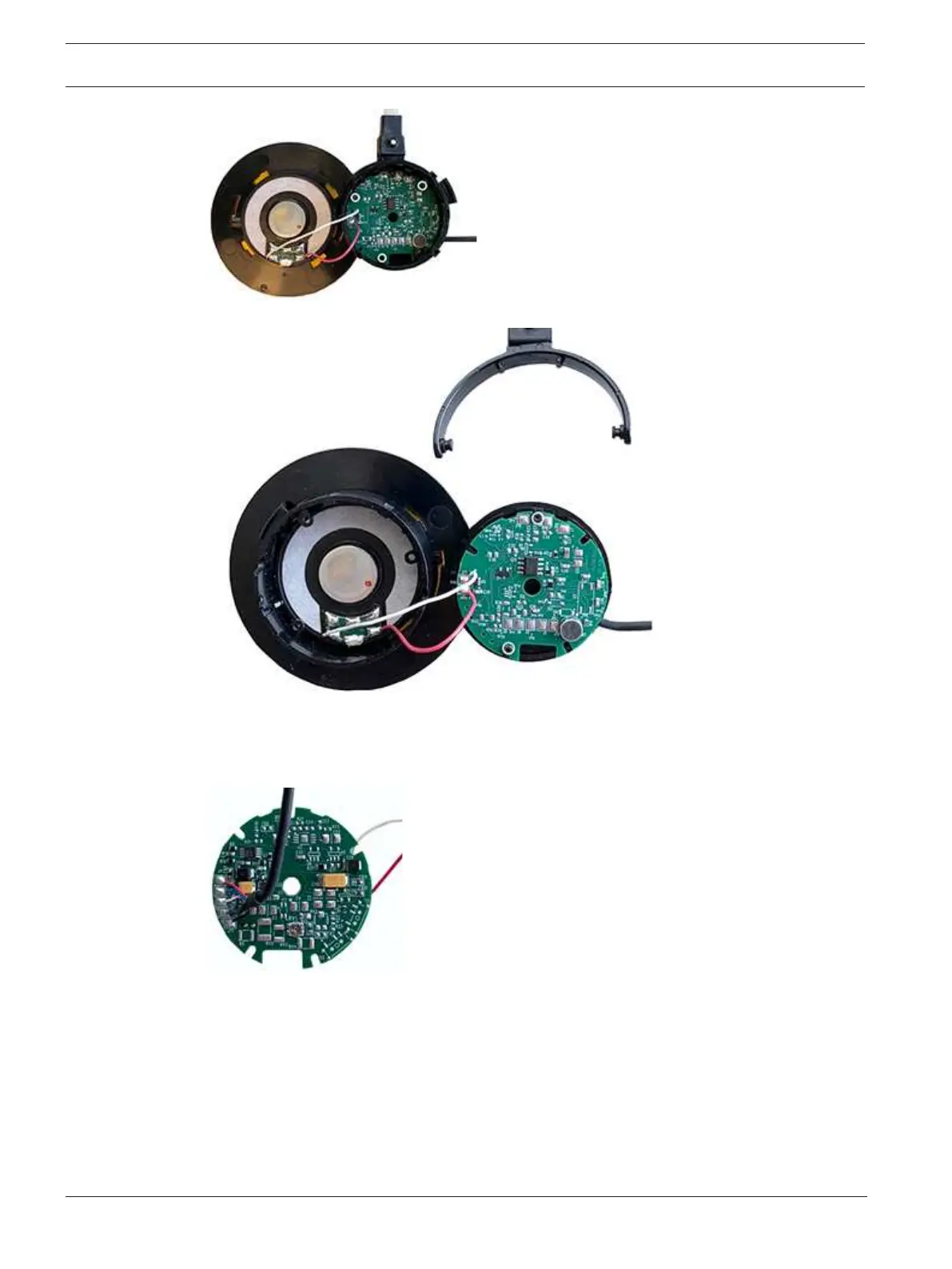

3. Remove the housing and the yoke/glider assembly.
4. Using a T-5 screwdriver, remove two screws (as shown).
5. Remove the PCBA.
6. Using a soldering iron, carefully disconnect the wires from the speaker and overhead
cord, and boom mic solder terminals, as needed.
