3. Carefully wind the overhead cord around the glider.
7.2 Non-boom side assembly
To assemble the non-boom side assembly, do the following:

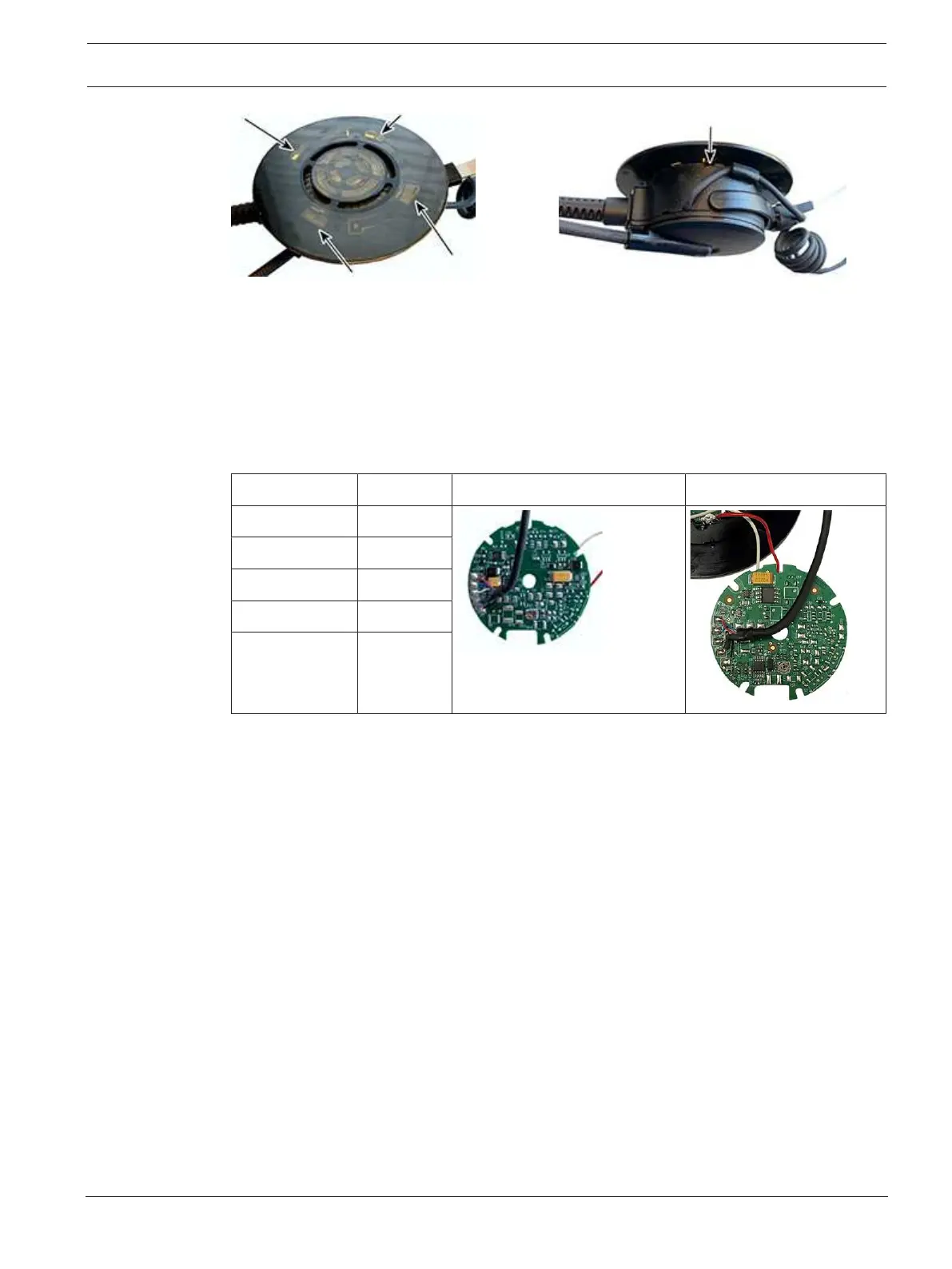

1. Solder the overhead cord to the PCBA.
Models -0210, -0211, -0212 Model -0214
J11 Red
J12 Blue
J9 White
J10 Shield
J17 Black
Table7.4: Non-boom Side Overhead Cable Wiring
2. Using the two shorter screws, attach the PCBA to the cover.
