38 en | Assembly AIRMAN 8+
2024-11 | 07 | F.01U.387.060
Customer Maintenance Manual
Bosch Security Systems, LLC

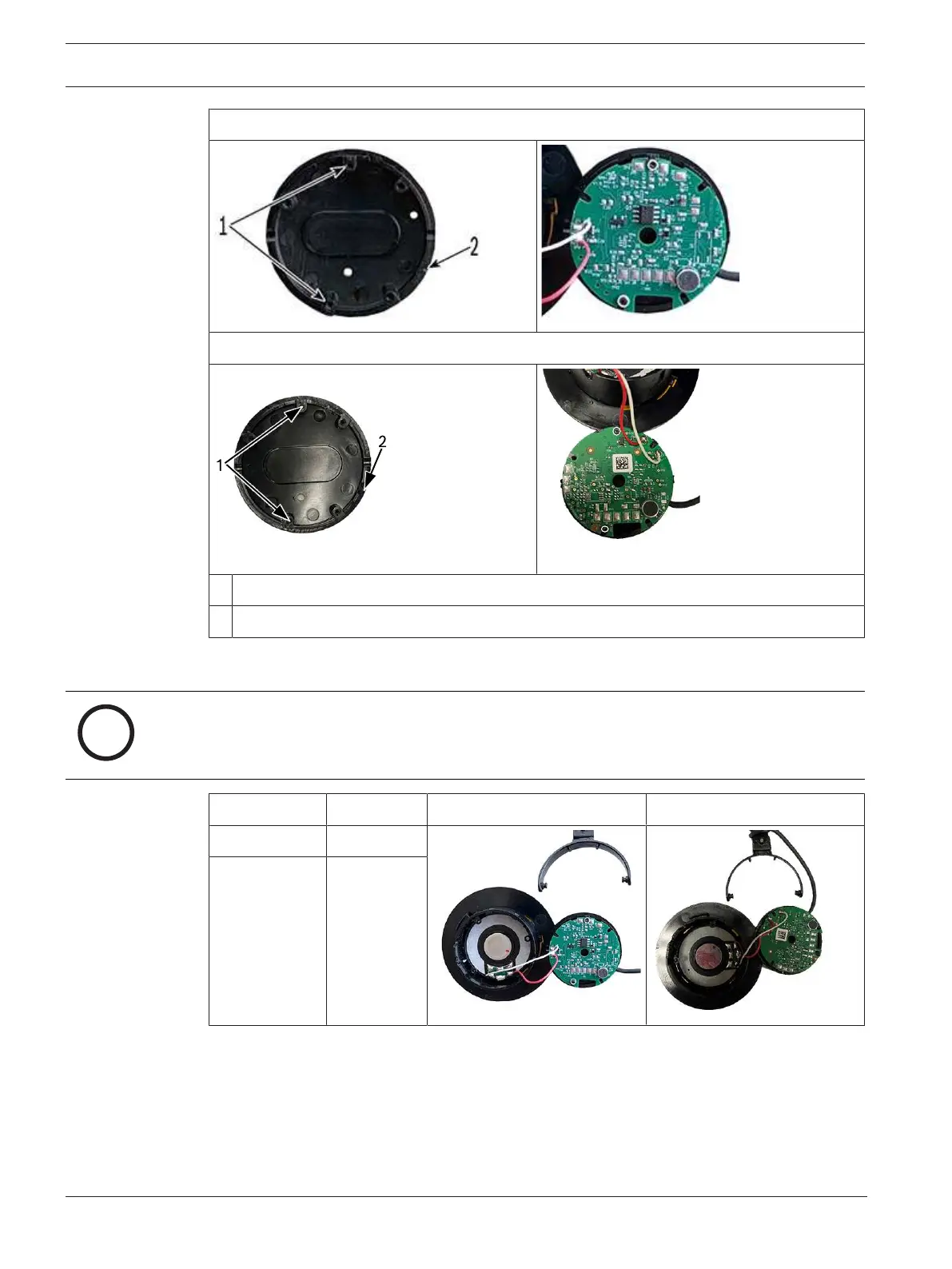

Models -0210, -0211, -0212
Model -0214
1 Alignment posts for PCBA screw
2 Path for overhead cord
3. Solder the wires to the speaker.
i
Notice!
Align the red wire with the polarity dot on the speaker (as shown)
Models -0210, -0211, -0212 Model -0214
J13 Red
J14 White
Table7.5: Non-boom Side Speaker Wiring
4. Route the speaker wires through the housing and solder to the PCBA.
5. Place yoke on the housing.
