7 Assembly
7.1 Boom side assembly

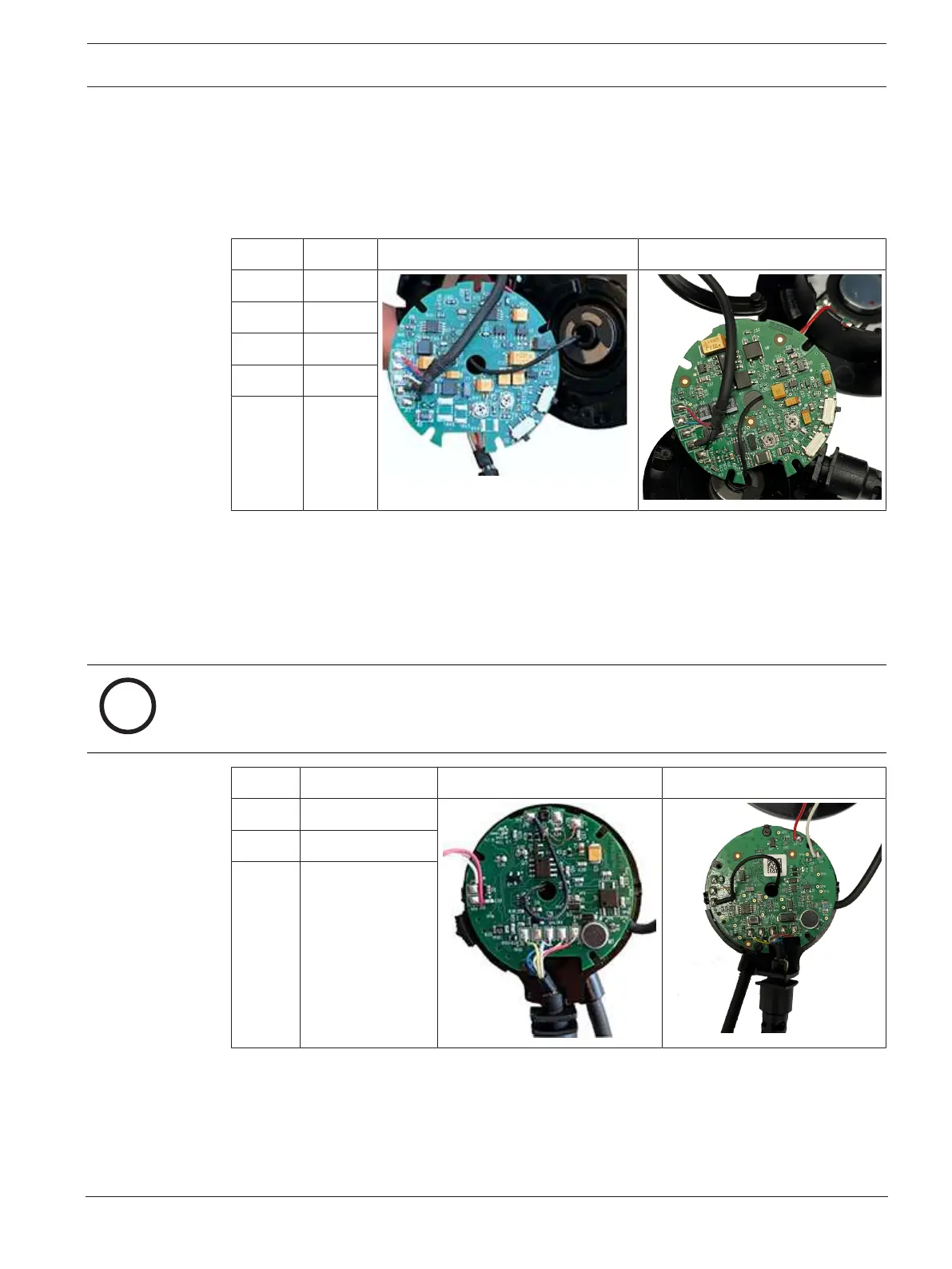

To assemble the boom side assembly, do the following:
1. Solder the overhead cord to the PCBA.
Models -0210, -0211, -0212 Model -0214
J11 Red
J12 Blue
J9 White
J10 Shield
J17 Black
Table7.1: Boom Side Overhead Cable Wiring
2. Solder the cable assembly to the PCBA.
3. Thread the boom mic wires through the center hole.
4. Using the two shorter screws, attach the PCBA to the boom mic assembly.
5. Solder the boom mic wires to the PCBA.
i
Notice!
Use shield as an anchor point so there is slack on smaller wires.
Models -0210, -0211, -0212 Model -0214
J7 Red
J8 Green
J18 Shield
Table7.2: Boom Mic Wiring, -210, -211, -212
