34 en | Assembly AIRMAN 8+
2024-11 | 07 | F.01U.387.060
Customer Maintenance Manual
Bosch Security Systems, LLC
6. Solder the main cord to the PCBA
Airman8P-0210 Airman8P-0211 Airman8P-0212 Airman8P-0214
J5 Yellow
J6 No connection Black
J2 Shield or Drain + Blue
J1 White
J15 No Conn. Red
Table7.3: Main Cord Wiring
7. Route the speaker wires through the housing and solder to the PCBA.
J13 Red
J14 White

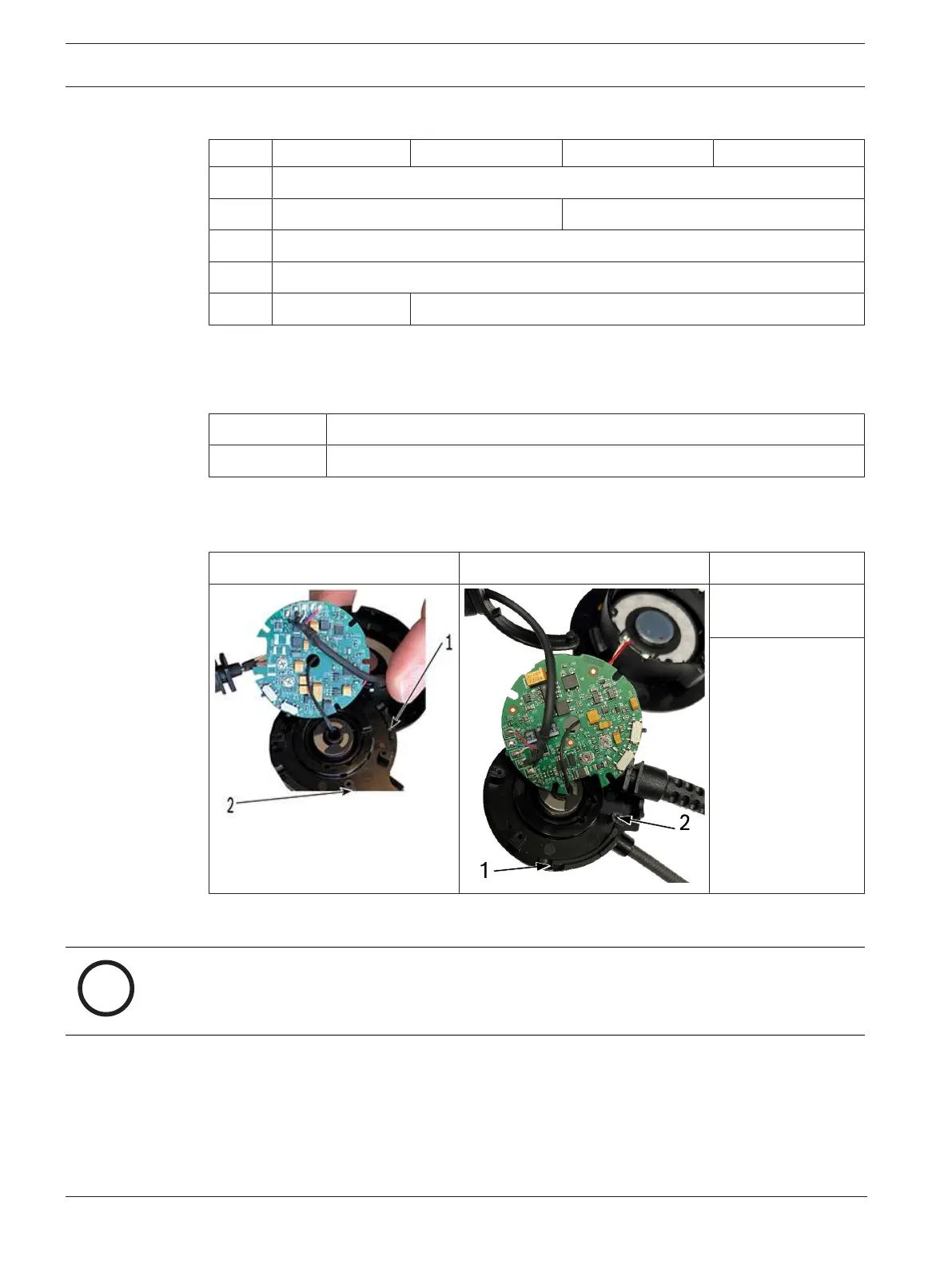

8. Route the overhead cord and the headset cord through the corresponding grooves
provided on the boom.
Models -0210, -0211, -0212 Model -0214
1 Path for overhead
cable
2. Alignment post
for PCBA screw
9. Place yoke on the housing.
i
Notice!
Take care to verify the orientation of the yoke, because it does not rotate 360°.
10. Place the switch cover on the ANR switch.
