Telex AIRMAN 8+ - Remove the MIC Prefilter; Remove the Yoke Assembly from the Headband Assembly; Boom Side Disassembly

AIRMAN 8+ Disassembly | en 29
Bosch Security Systems, LLC
Customer Maintenance Manual
2024-11 | 07 | F.01U.387.060

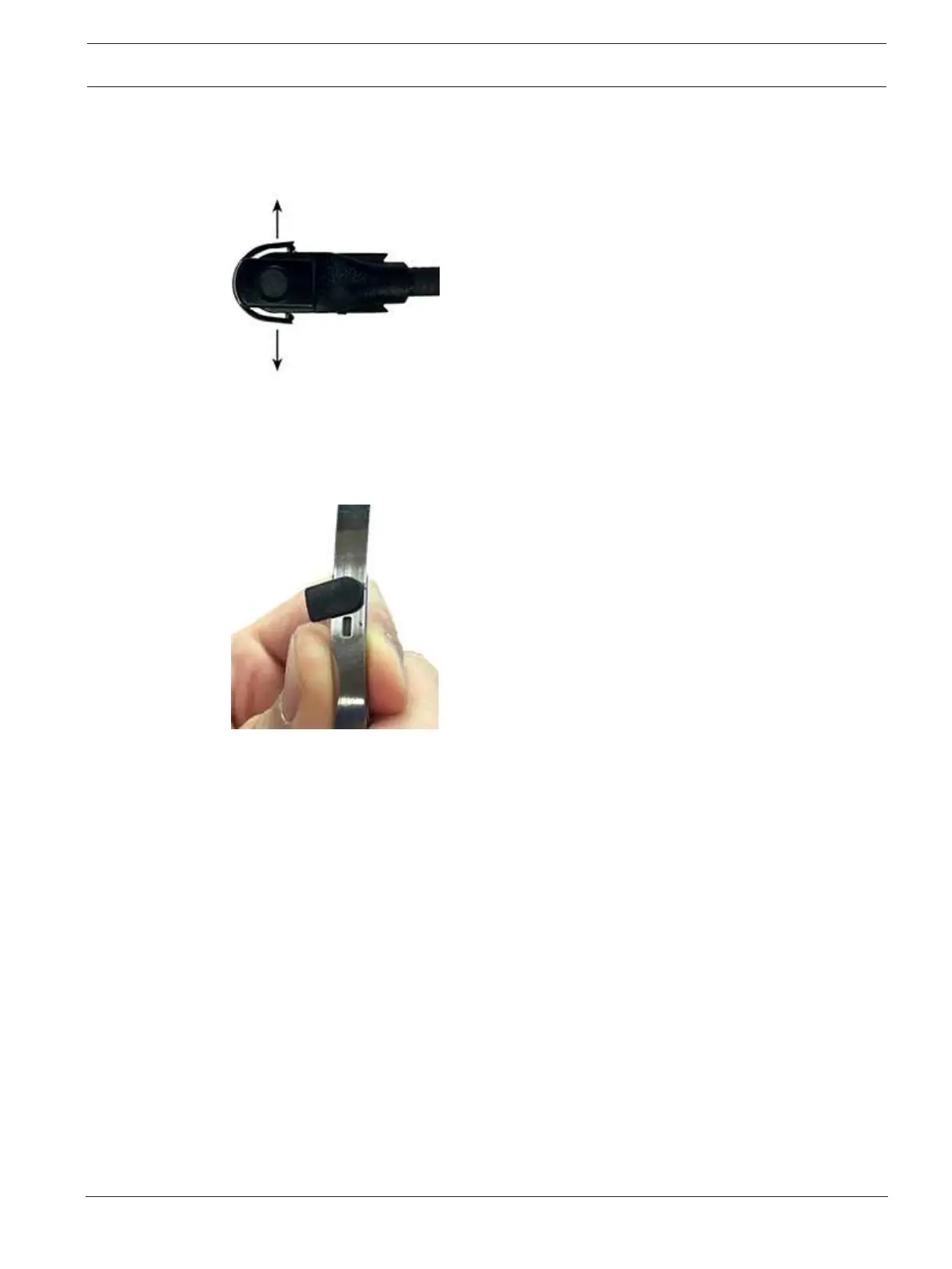

6.3 Remove the mic prefilter
To remove the prefilter, do the following:
4 Carefully pry the prefilter from the mic.
6.4 Remove the yoke assembly from the headband assembly
To remove the yoke assembly from the headband assembly, do the following:
1. Use a fingernail to lift the bottom edge of the black plastic spacer.
2. Swivel the black plastic spacer to the side and remove it from the assembly.
3. Slide the yoke assembly off of the headband.
6.5 Boom side disassembly
To remove the speaker assembly and sleeve, do the following:
1. At the same time, push the two retaining cams located in the speaker assembly out of
the way.
2. Rotate the speaker faceplate approximately 15° clockwise.
