LE910C1 Hardware User Guide
1VV0301298 Rev. 1.08 - 2017-11-14
Reproduction forbidden without written authorization by Telit Communications S.p.A. - All Rights Reserved
Telit Confidential Information, provided under NDA Page
99 of 119
10.3. Recommended Footprint for the Application
Figure 24 shows the recommended footprint for the application board (dimensions are in mm).
To facilitate replacing the LE910C1 module if necessary, it is suggested to design the application
with a 1.5 mm placement inhibit area around the module.
It is also suggested, as a common rule for an SMT component, to avoid having a mechanical part of
the application in direct contact with the module.
NOTE:
In the customer application, the region marked as INHIBIT in Figure 24 must be clear of any signal
wiring or ground polygons.

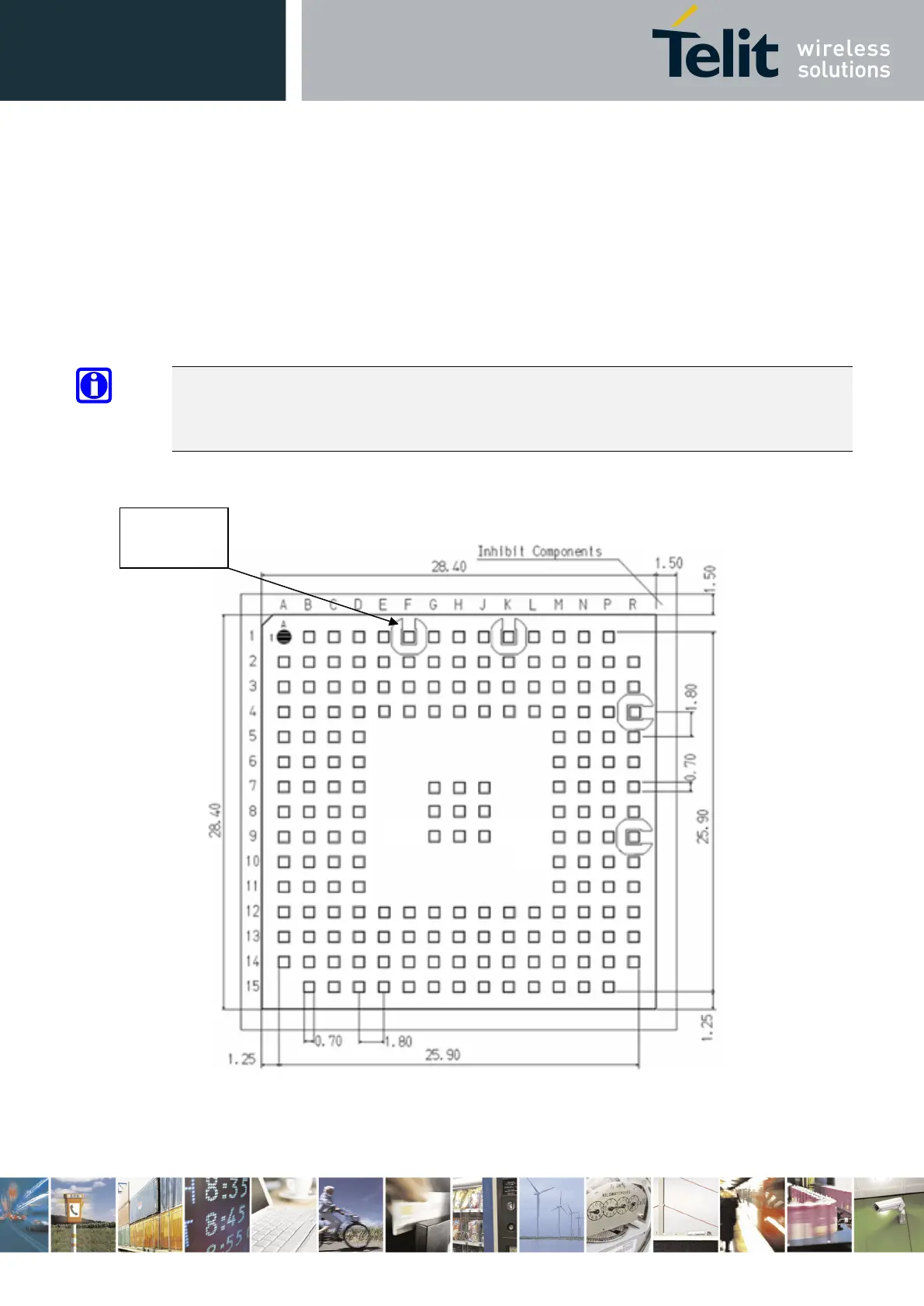

Figure 24: Recommended Footprint - Top View, 181 pads (dimensions are in mm, top view).
4 x Route
Inhibit
