2.2.2
M.2 LN930-AP Module
The M.2 APAC LTE module is another Intel design based on the XMM™7160 modem
platform. The module has a targeted area of operation in the Asia Pacific rim and offers 3G
and LTE datacard functionality, 2G Functionality is not supported.
The M.2 APC LTE module includes support at the 75 pin application interface for M.2
Control, USB 2.0 HS, GNSS, USIM and Antenna Tuning.

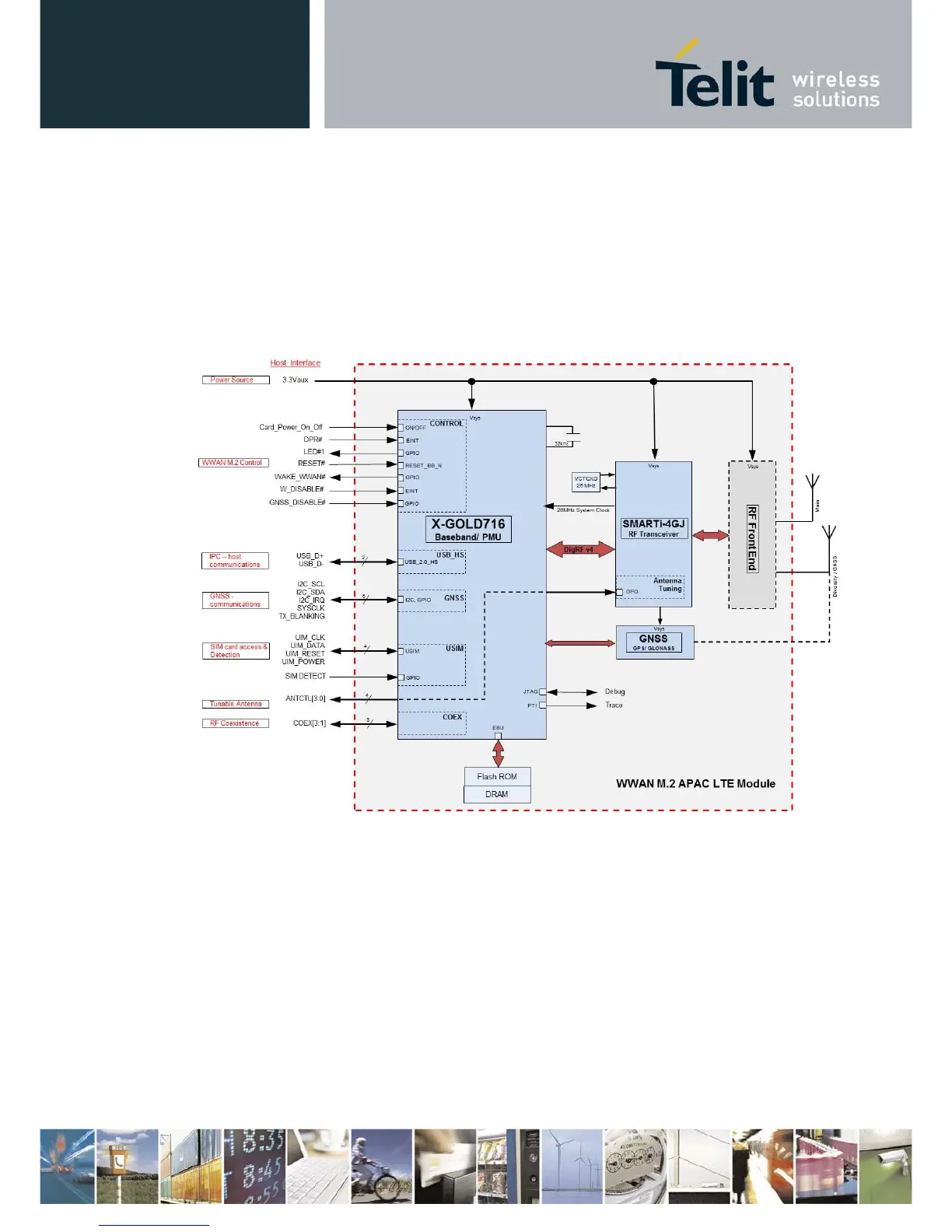

A block diagram of the M.2 APAC LTE module is shown in
Figure 2
.
Figure 2
M.2 APAC LTE Module Block Diagram
