Telit Wireless Solutions LN930 - Figure 20 WWAN Card 3042 MID-Plane Land Pattern with Slot Key Removed

LN930 M.2 Hardware User Guide
1VV0301078 Rev.10 – 2015-11-11
Reproduction forbidden without written authorization from Telit Communications S.p.A. - All Rights Reserved. Page 77 of 88

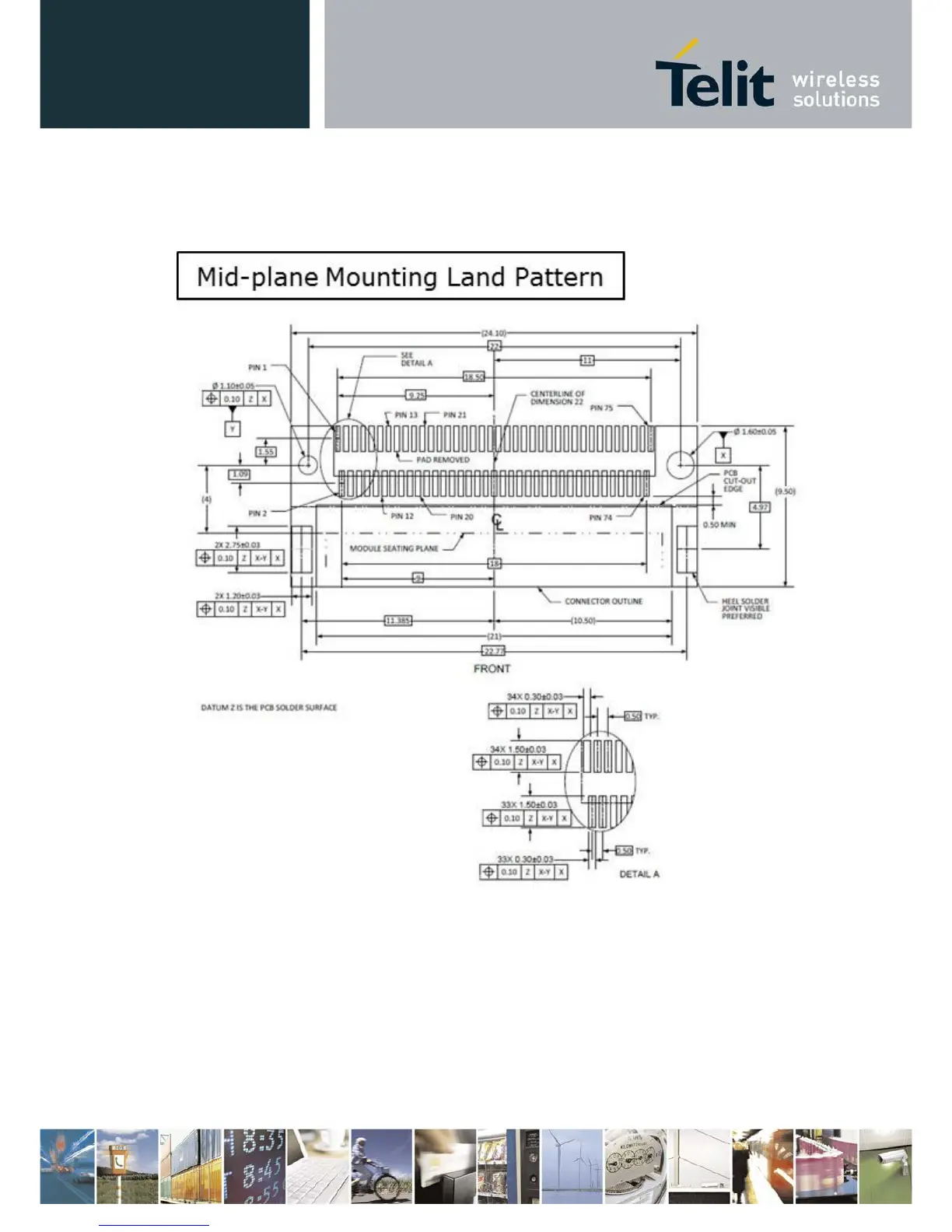

Figure 20 illustrates a typical mid-plane (in-line) land pattern with slot key removed.
Figure 20 WWAN Card 3042 Mid-plane Land Pattern with Slot Key Removed
