11
WWAN Card Type 3042-S3-B
11.1
Mechanical Dimensions
The mechanical dimensions of WWAN Card Type 3042 are shown in
Figure 17
and
Figure 17
.
The WWAN card is 30 mm x 42 mm. The height is 1.5 mm from the top of the PCB to the
top of the outside shield. There are a total of 75 pins; however 8 pins are lost to support the
slot+. All components are mounted on the Top side
.

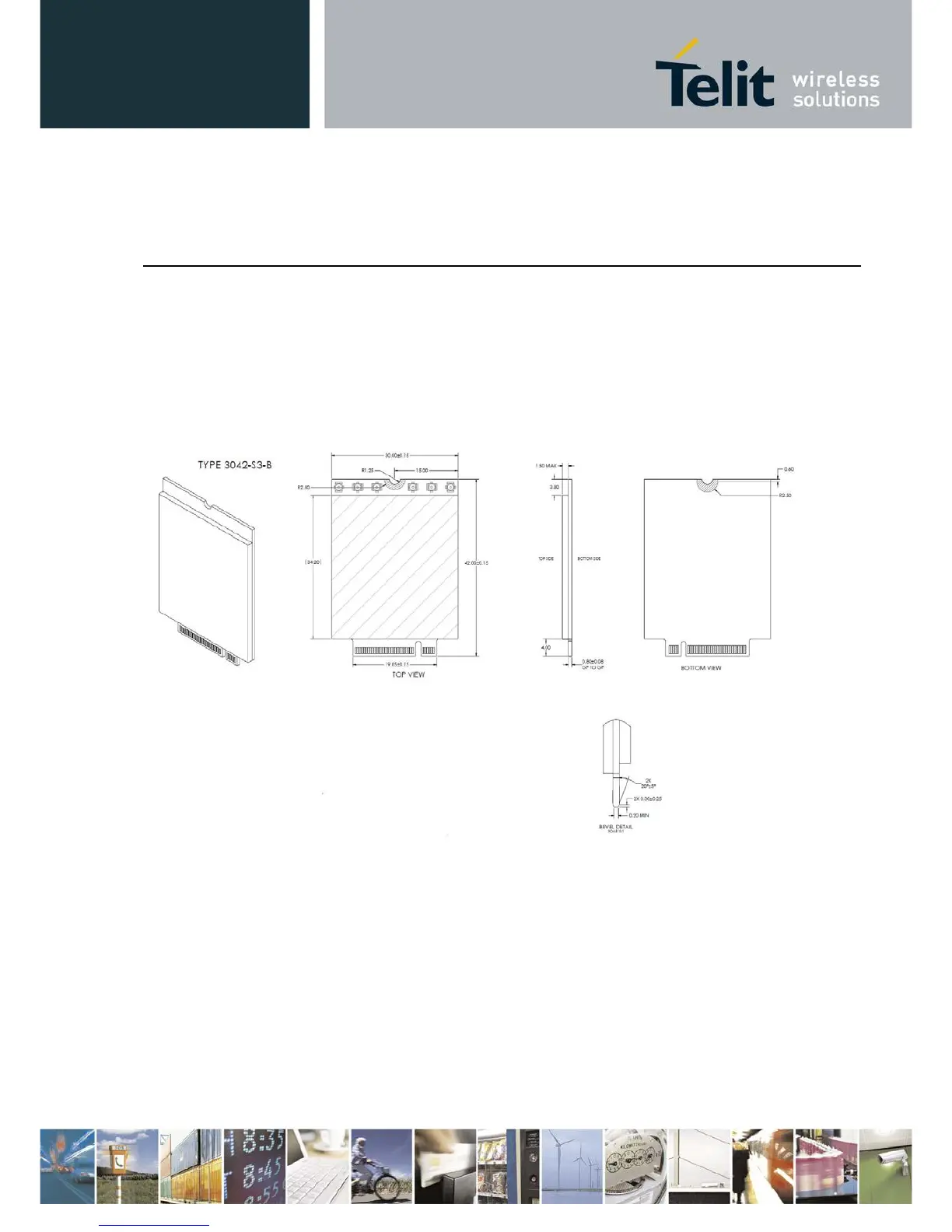

Figure 17 WWAN Card 3042 Mechanical Dimensions
