11.2
Land Pattern

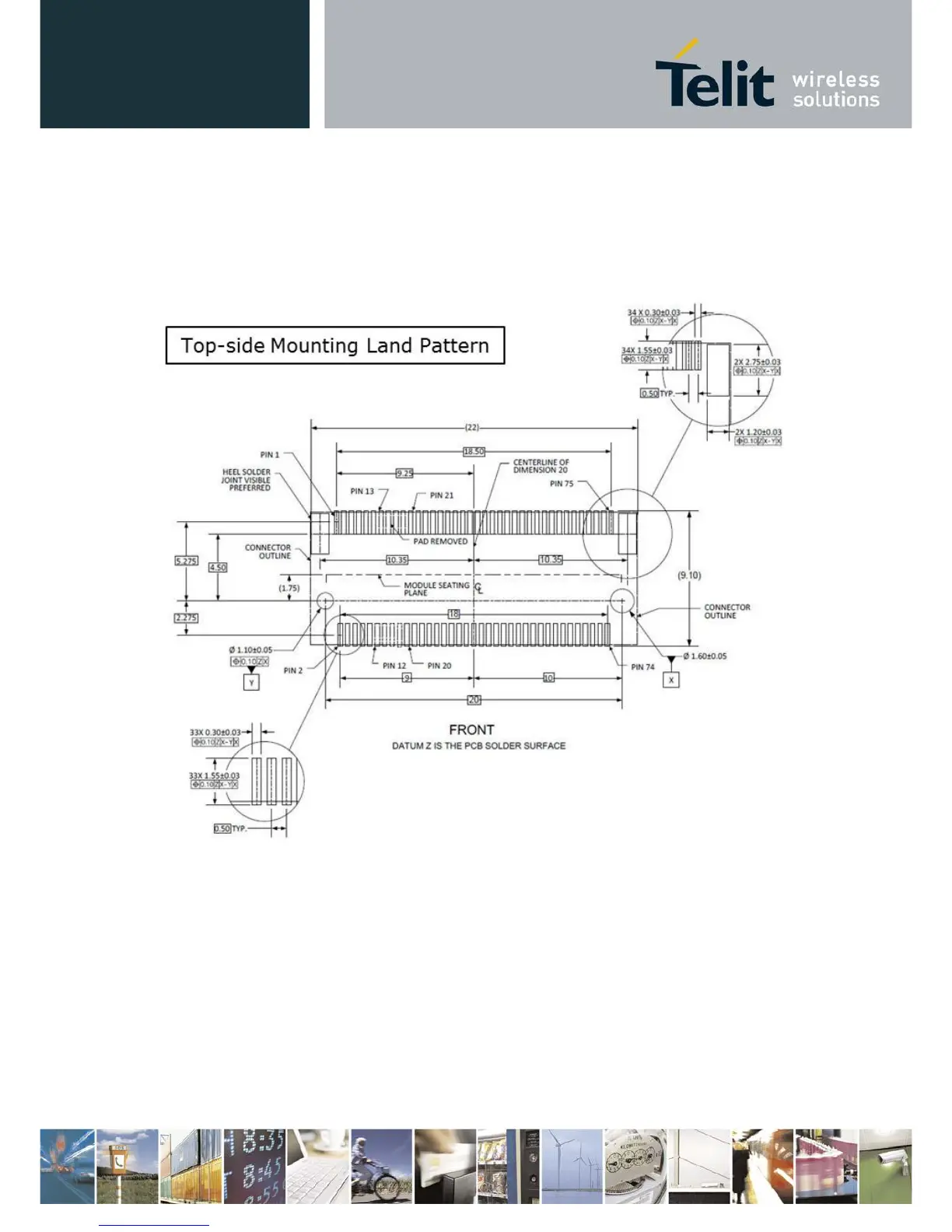

Figure 19 illustrates a typical land pattern for a top-mount connector with the key removed.
Figure 19 WWAN Card Type 3042 Top-Side Mounting Land Pattern
