ME910G1 HW Design Guide
1VV0301593 Rev.3 Page 59 of 97 2020-03-24
Registered in idle + power saving
It depends on the event that triggers the
wakeup (In sync with network paging)
Connecting
Blinking 1 sec on + 2 sec off

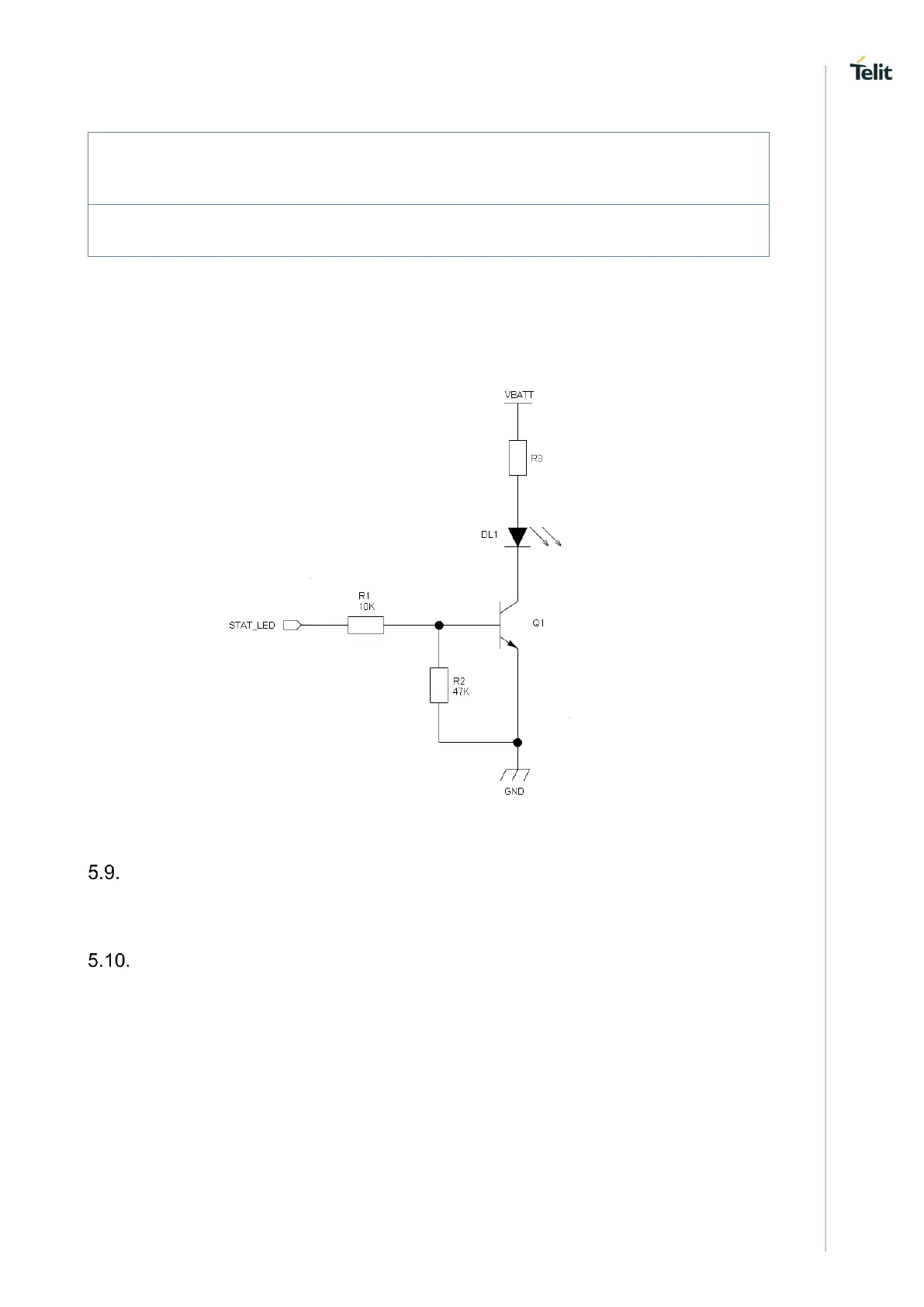

The reference schematic for LED indicator,
R3 must be calculated taking in account VBATT value and LED type. :
External SIM Holder
Please refer to the related User Guide (SIM Holder Design Guides, 80000NT10001a).
ADC Converter
The ME910G1 is provided by one AD converter. It is able to read a voltage level in the
range of 0÷1.8 volts applied on the ADC pin input, store and convert it into 10 bit word.
The input line is named as ADC_IN1 and it is available on Pad B1
The following table is showing the ADC characteristics:
