Telit Wireless Solutions UE910 series User Manual

Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 54 of 93

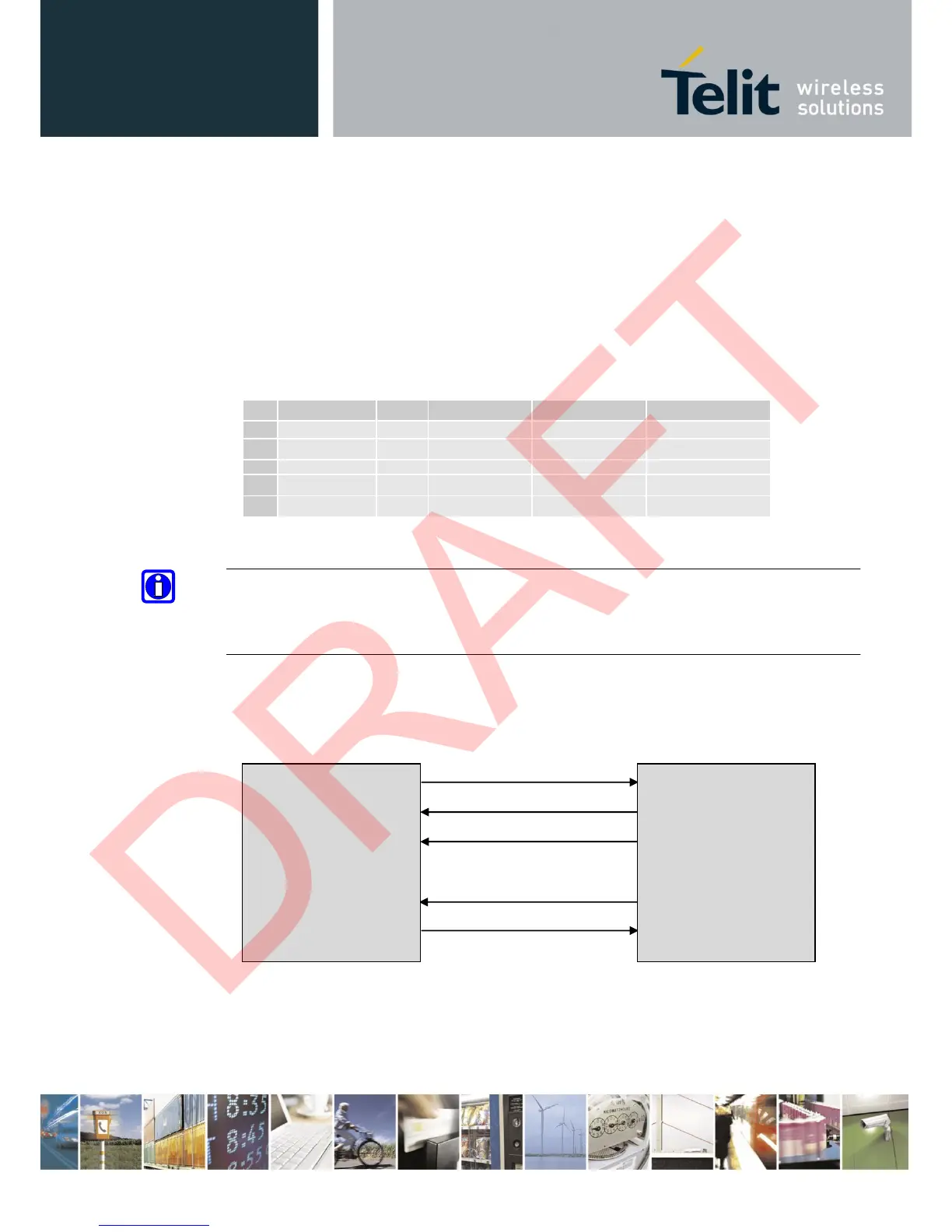

9 SPI port
The UE910 Module is provided by one SPI interface.
The SPI interface defines two handshake lines for flow control and mutual wake-up of the
modem and the Application Processor: SRDY (slave ready) and MRDY (master ready).
The AP has the master role, that is, it supplies the clock.
The following table is listing the available signals:
PAD
Signal
I/O
Function
Type
COMMENT
D15
SPI_MOSI
I
SPI MOSI
CMOS 1.8V
Shared with TX_AUX
E15
SPI_MISO
O
SPI MISO
CMOS 1.8V
Shared with RX_AUX
F15
SPI_CLK
I
SPI Clock
CMOS 1.8V
H15
SPI_MRDY
I
SPI_MRDY
CMOS 1.8V
J15
SPI_SRDY
O
SPI_SRDY
CMOS 1.8V
9.1 SPI Connections
NOTE:
Due to the shared functions, when the SPI port is used, it is not possible to use the AUX_UART
port.
SPI_MISO
SPI_MOSI
SPI_CLK
SPI_MRDY
SPI_SRDY
E15
D15
F15
H15
J15
UE910
AP
DRAFT
