14.9 Packing System (Reel)
The UE910 can be packaged on reels of 200 pieces each.

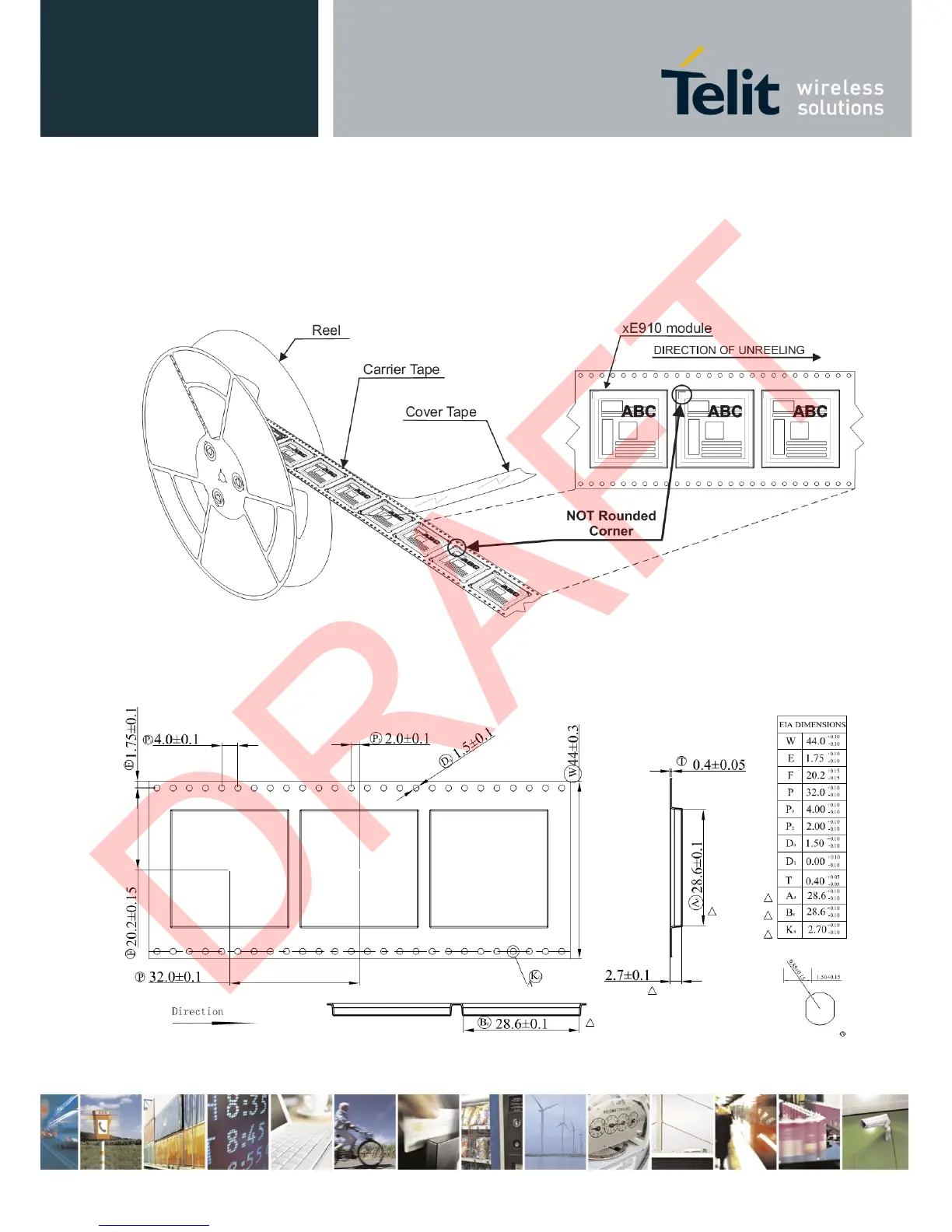

See figure for module positioning into the carrier.
14.9.1 Carrier Tape Detail
