Telit Wireless Solutions UE910 series User Manual

Reproduction forbidden without Telit Communications S.p.A. written authorization - All Rights Reserved page 64 of 93

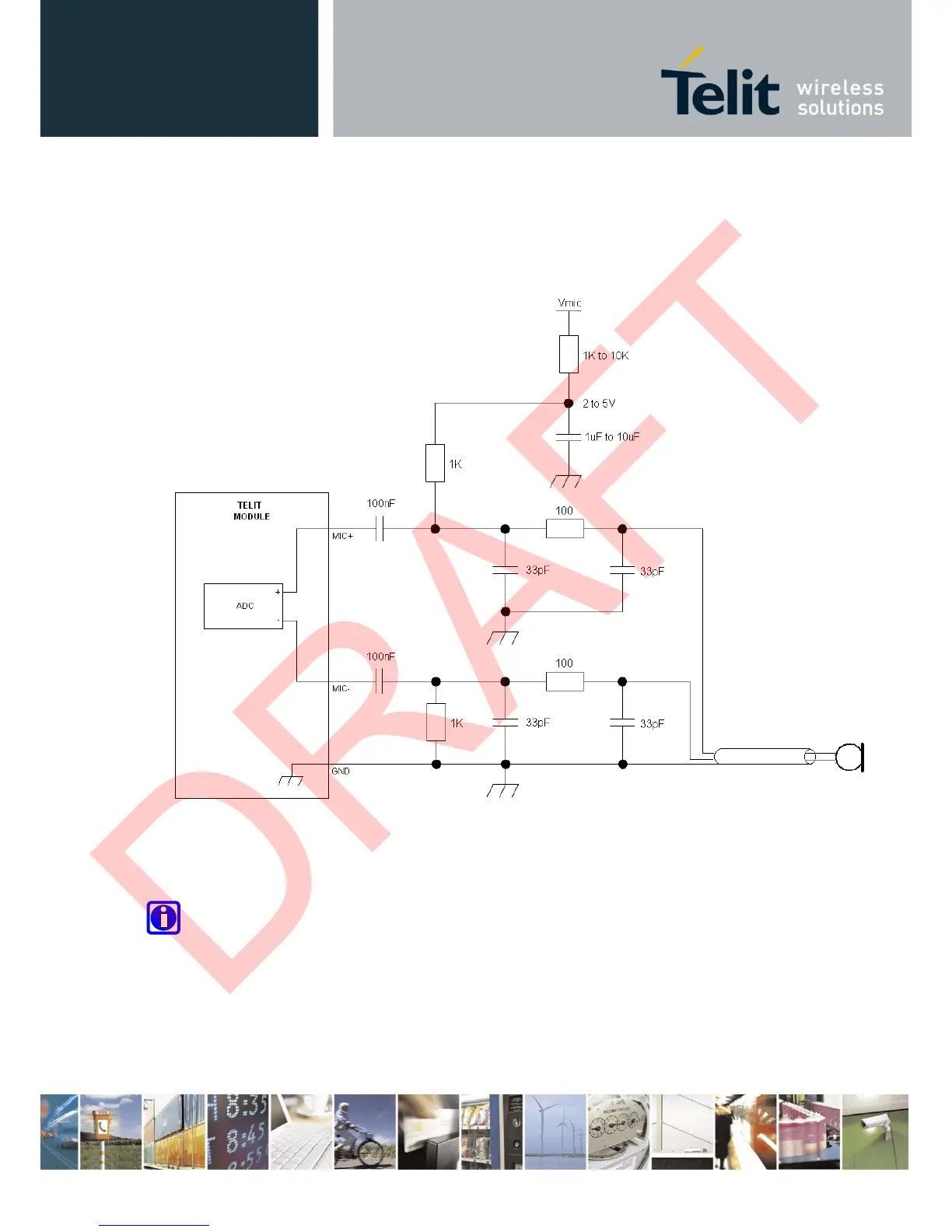

If a "balanced way" is anyway desired, much more care has to be taken to Vmic noise and
ground noise; also the 33pF-100Ohm-33pF RF-filter has to be doubled (one each wire).
TIP: Since the J-FET transistor inside the microphone acts as RF-detector-amplifier, ask
vendor for a microphone with anti-EMI capacitor (usually a 33pF or a 10pF capacitor placed
across the output terminals inside the case).
DRAFT
