Tenda A33 User Manual

Version1.0
44
7.3 Separate 2.4 GHz and 5 GHz
The WiFi extender supports both 2.4 GHz WiFi and 5 GHz WiFi. If you want to separate
the wireless network in the two frequency bands, you can operate as follows:
Configuration procedure:
Step 1 Start a web browser on the computer connected to the WiFi extender, and enter
re.tenda.cn in the address bar to access the web UI of the WiFi extender.

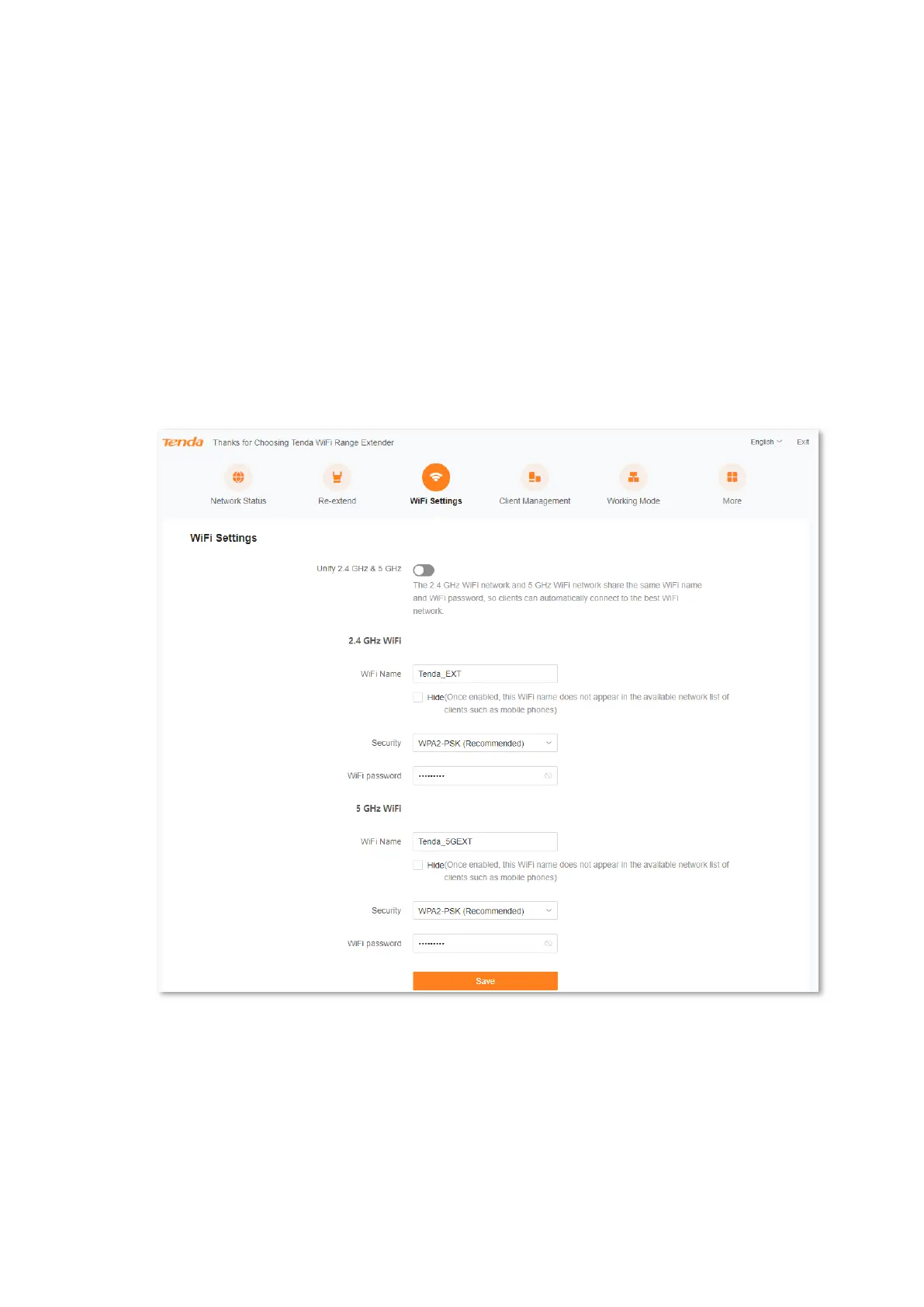

Step 2 Click WiFi Settings.
Step 3 Disable the Unify 2.4 GHz & 5 GHz function.
Step 4 Set WiFi name, security and WiFi password for 2.4 GHz WiFi and 5 GHz WiFi, respectively.
Step 5 Click Save.
---End
After the configuration completes, 2.4 GHz WiFi and 5 GHz WiFi are separated, and you can see
two different WiFi names. You can use your network devices to connect any of the two networks.

Tenda A33 Specifications

General

Maximum data transfer rate	1000 Mbit/s
Antennas quantity	2
Antenna gain level (max)	5 dBi
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency band	5/2.4 GHz
Signal strength	20 dBm
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Power LED	No
Product type	Network repeater
Product color	White
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	CE, RoHS
Certification	FCC
DC output current	1 A
DC output voltage	12 V
Power consumption (typical)	11 W

Weight and Dimensions

Depth	72 mm
Width	123 mm
Height	47.5 mm
