Tenda A33 User Manual

Version1.0
58
9.2 Switch the WiFi extender from AP mode to
extender mode
In the extender mode, you can extend the coverage of the existing WiFi network.
Suppose that the WiFi extender is working in AP Mode. You have a WiFi router which has
connected to the internet in your house. To expand the network coverage in your house, you can
switch the WiFi extender from AP mode to the extender mode.
Configuration procedure:
Step 1 Please remove the Ethernet cable (if any) connecting the WiFi extender with the
upstream device.
Step 2 Start a web browser on the computer connected to the WiFi extender, and enter
re.tenda.cn in the address bar to access the web UI of the WiFi extender...

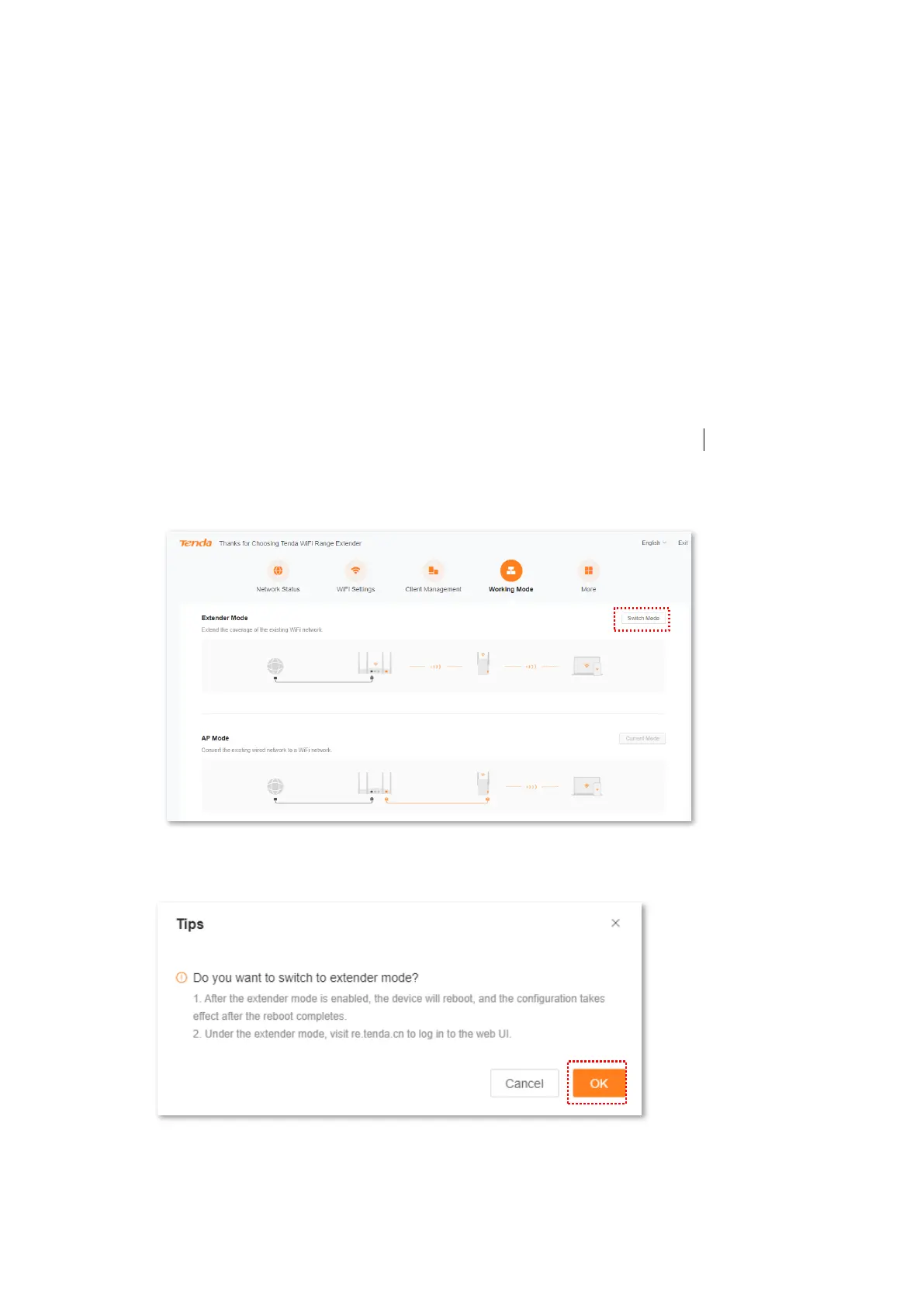

Step 3 Click Working Mode.
Step 4 Find Extender Mode, then click Switch Mode.
Step 5 After confirming the prompt message, click OK. The system will reboot to effectuate the
configuration.
---End

Tenda A33 Specifications

General

Maximum data transfer rate	1000 Mbit/s
Antennas quantity	2
Antenna gain level (max)	5 dBi
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency band	5/2.4 GHz
Signal strength	20 dBm
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Power LED	No
Product type	Network repeater
Product color	White
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	CE, RoHS
Certification	FCC
DC output current	1 A
DC output voltage	12 V
Power consumption (typical)	11 W

Weight and Dimensions

Depth	72 mm
Width	123 mm
Height	47.5 mm
