Tenda A33 User Manual

Version1.0
5
2.2 Extender mode
This WiFi extender supports two network extending methods. If your router has a WPS button,
you are recommended to use Method 2.
Method 1: Extend your WiFi network using web UI
Scenario 1: Mobile phone as the WiFi enabled device (An Android phone is used for illustration)

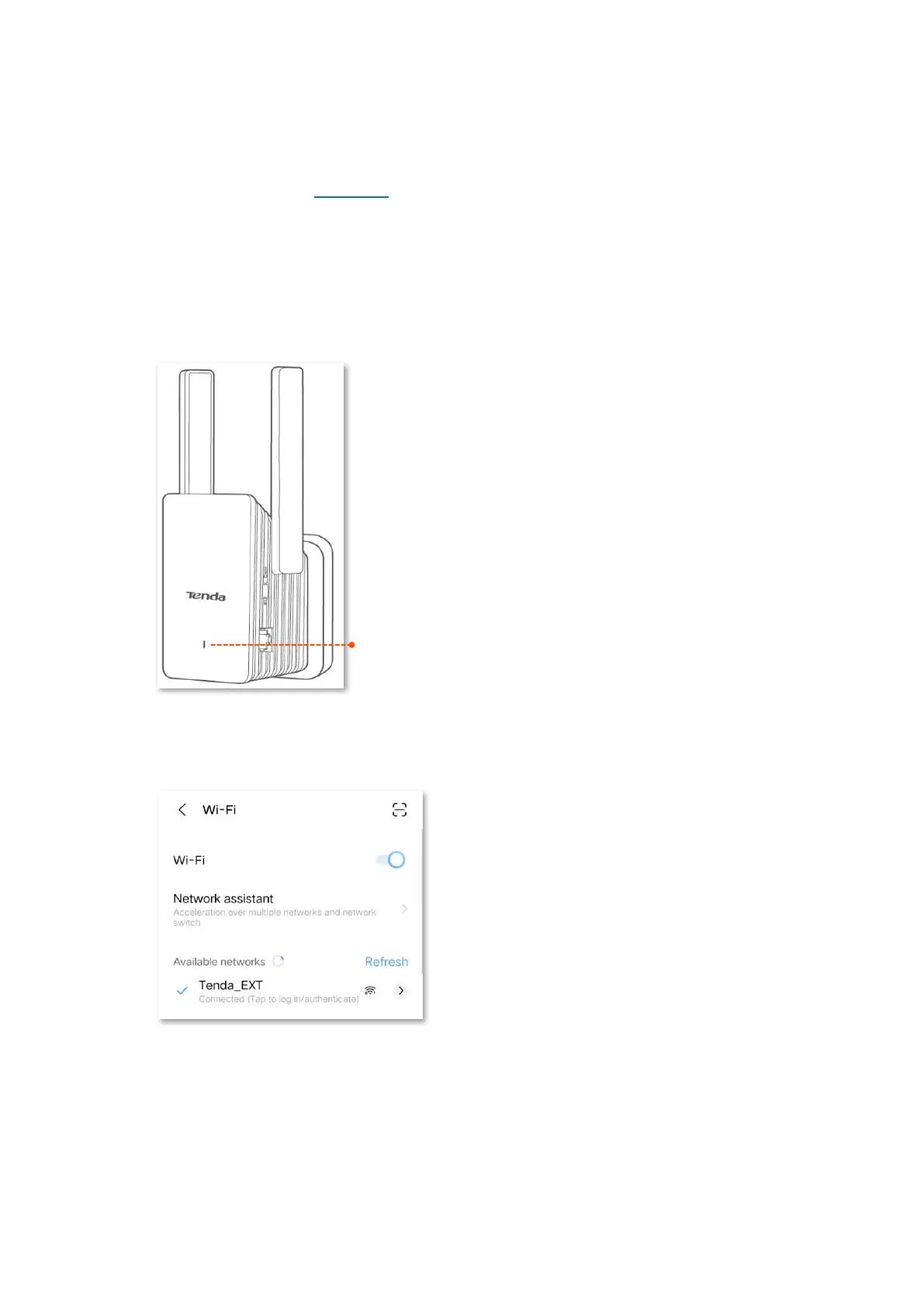

Step 1 Plug the WiFi extender into a power outlet near the router in the same room. Wait until
the LED indicator of the WiFi extender turns blinking red.
Step 2 Extend your WiFi network.
Connect your mobile phone to the WiFi network of the WiFi extender: Tenda_EXT. 1.
A quick setup page appears automatically.
LED indicator blinks red

Tenda A33 Specifications

General

Maximum data transfer rate	1000 Mbit/s
Antennas quantity	2
Antenna gain level (max)	5 dBi
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Frequency band	5/2.4 GHz
Signal strength	20 dBm
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
WLAN data transfer rate (max)	2402 Mbit/s
Cabling technology	10/100/1000Base-T(X)
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Ethernet LAN interface type	Gigabit Ethernet
Connectivity technology	Wired & Wireless
Ethernet LAN (RJ-45) ports	1
Security algorithms	WPA-PSK, WPA2-PSK, WPA3
Power LED	No
Product type	Network repeater
Product color	White
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 90 %
Operating relative humidity (H-H)	10 - 90 %
Sustainability certificates	CE, RoHS
Certification	FCC
DC output current	1 A
DC output voltage	12 V
Power consumption (typical)	11 W

Weight and Dimensions

Depth	72 mm
Width	123 mm
Height	47.5 mm
