Tenda O3 User Manual

46

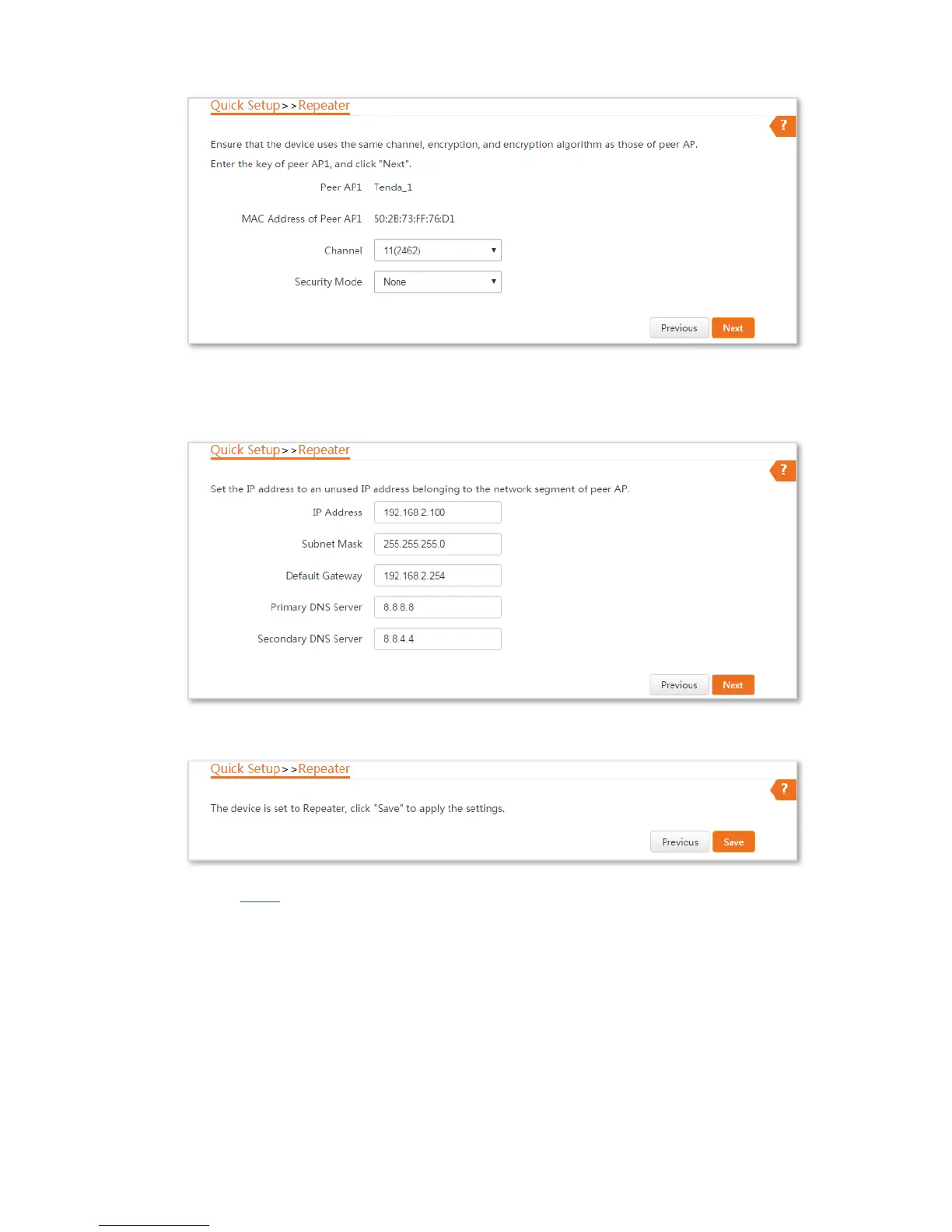

9. Set the IP address to an unused IP address belonging to the same network segment as that of the main
CPE. For example, if the IP address of the main CPE is 192.168.2.1, you can set this device’s IP
address to 192.168.2.X (X ranges from 2 to 254). Then click Next.
10. Click Save, and wait until the device reboots to activate the settings.
Step 2 Perform Step 1 above to set CPE2, CPE3 and CPE4 to Repeater mode respectively.
Step 3 Set the main CPE to Repeater mode to bridge CPE1, CPE2, CPE3 and CPE4.
1. Log in to the web UI of the main CPE, and choose Quick Setup to enter the configuration page.
2. Select Repeater mode, and click Next.
3. Select SSIDs of CPE1, CPE2, CPE3 and CPE4 respectively, and click Next.
4. Click Next at the bottom of the following page.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
