1.2.2 Appearance of O3
LED Indicators
O3
LED Indicator
Status
Description
LAN/WAN
Solid on
The device is being powered properly, and no data is being transmitted.
Blinking
Data is being transmitted over the port.
Off
The device is not powered on.
LED1, LED2, LED3
(Signal Strength LED)
Solid on
The device has wireless clients connected to it and may work in AP,
Repeater, or Router mode. If you performed auto bridging, the device is
already set to AP mode.
LED1, LED2 and LED3 are solid on: Perfect Signal
LED1 and LED2 are sold on, and LED3 is off: Good signal
LED1 is solid on, and LED2 and LED3 are off: Weak signal. Please adjust
the direction or location of the two devices.
Blinking
The device is working in Client, Universal Repeater or WISP mode, and
connected to a remote AP. If the device is automatically connected to the
other one, it is set to Client mode.
Off
The device is not connected to a wireless client or a remote AP.

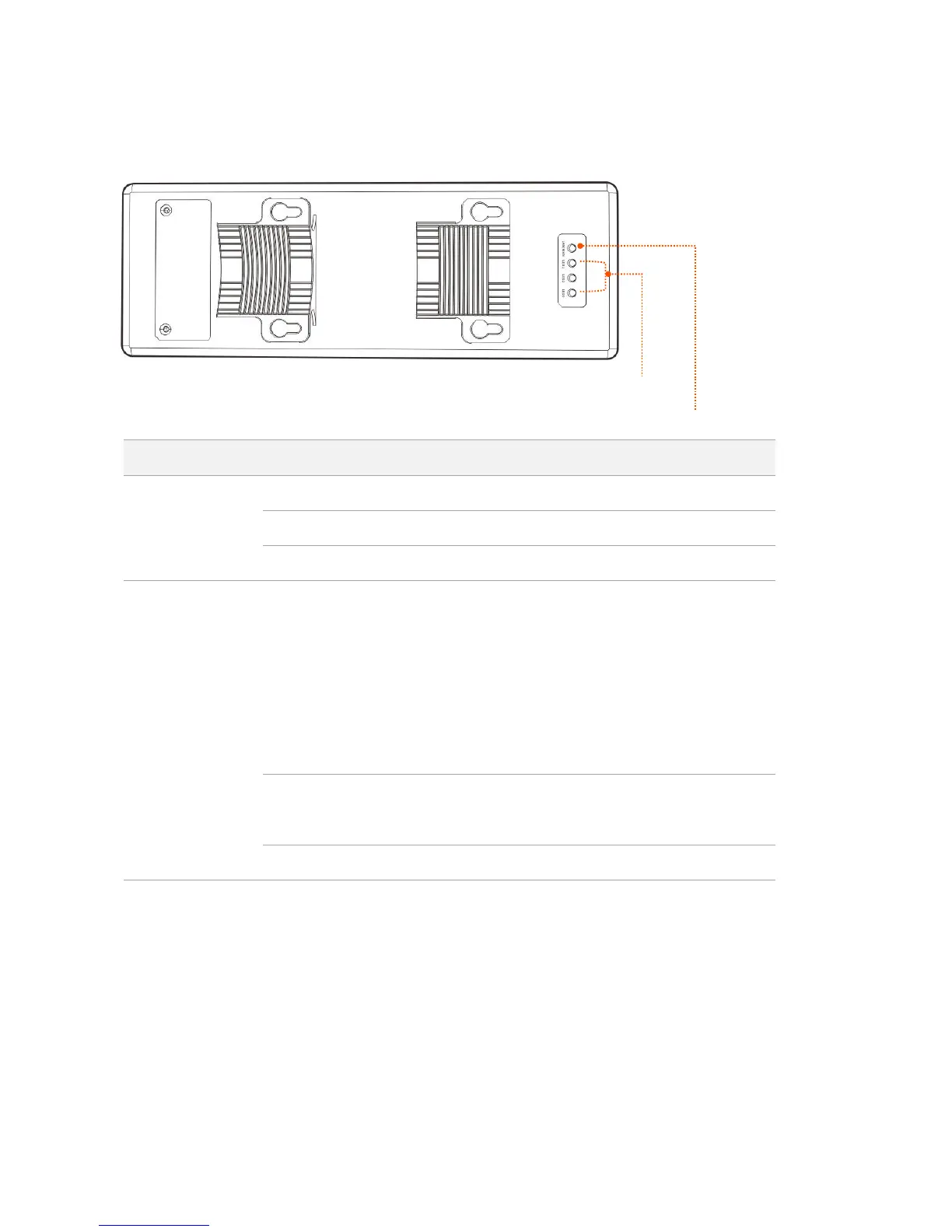

LAN/WAN LED indicator
LED1 - LED3 indicators

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
