Tenda O3 User Manual

20
3 Web UI
3.1 Login
Step 1 Connect the computer to the device.
1. Uncover the housing of the device.

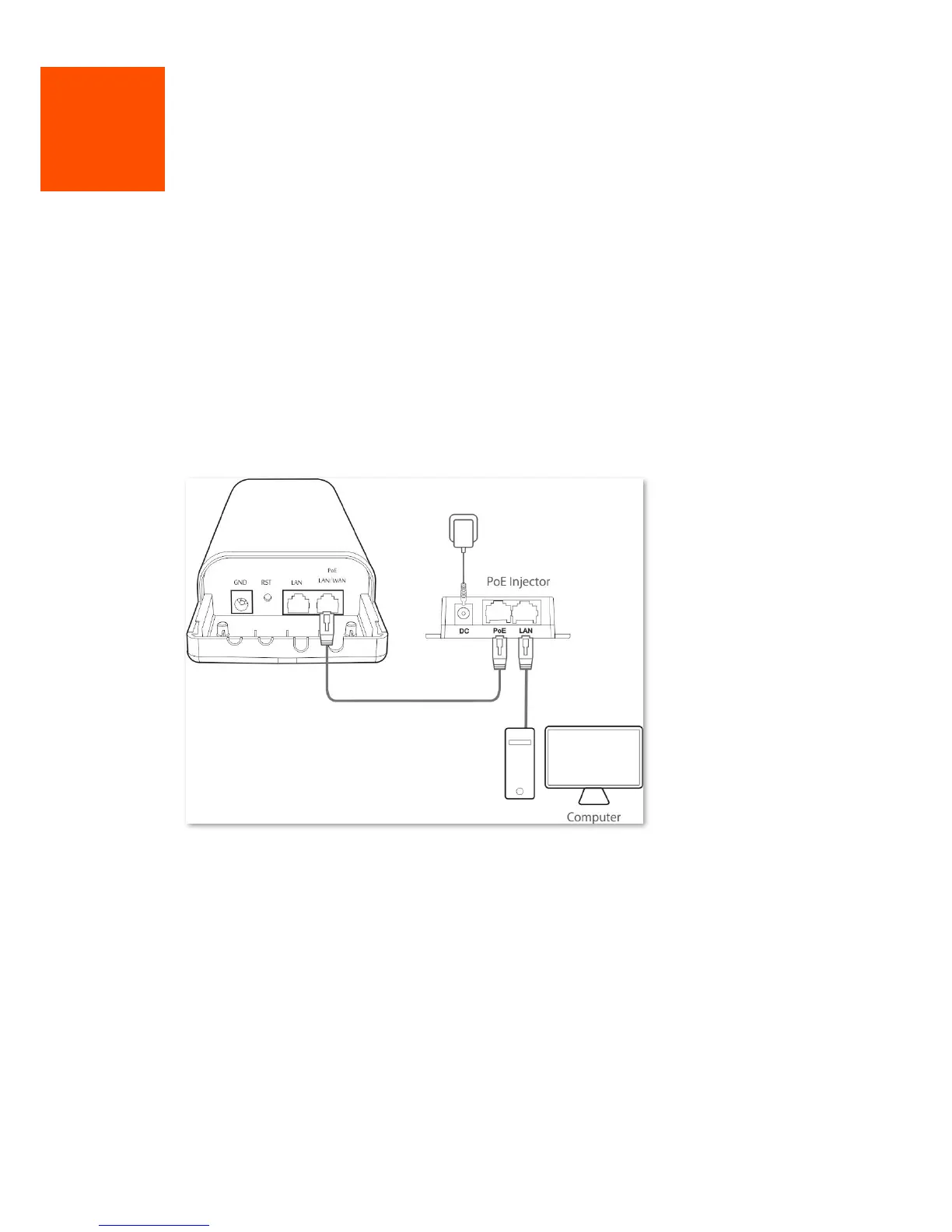

2. Use an Ethernet cable to connect the PoE/LAN/WAN port of the device to the PoE port of the PoE
injector.
3. Use the included power adapter to connect the PoE injector to a power socket. The LAN/WAN LED
indicator of the device lights up.
4. Use an Ethernet cable to connect your computer to the LAN port of the PoE injector.
Step 2 Start a web browser on your computer, and visit 192.168.2.1. Enter your user name and password
(default: admin), and click Login.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
