Tenda O3 User Manual

114
8.2 Diagnose
8.2.1 Overview
Choose Advanced > Diagnose to enter the page.
If the network connection fails, you can use the diagnosis tools included with the CPE to locate the faulty node.
8.2.2 Site Survey
It is used to scan WiFi signals nearby for analysis with SSIDs, MAC addresses, channels and signal strength
marked.
Assume that you want to know the WiFi networks nearby.
Configuration Pocedure
Step 1 Choose Advanced > Diagnose.
Step 2 Select Site Survey in the Diagnose list.
----End

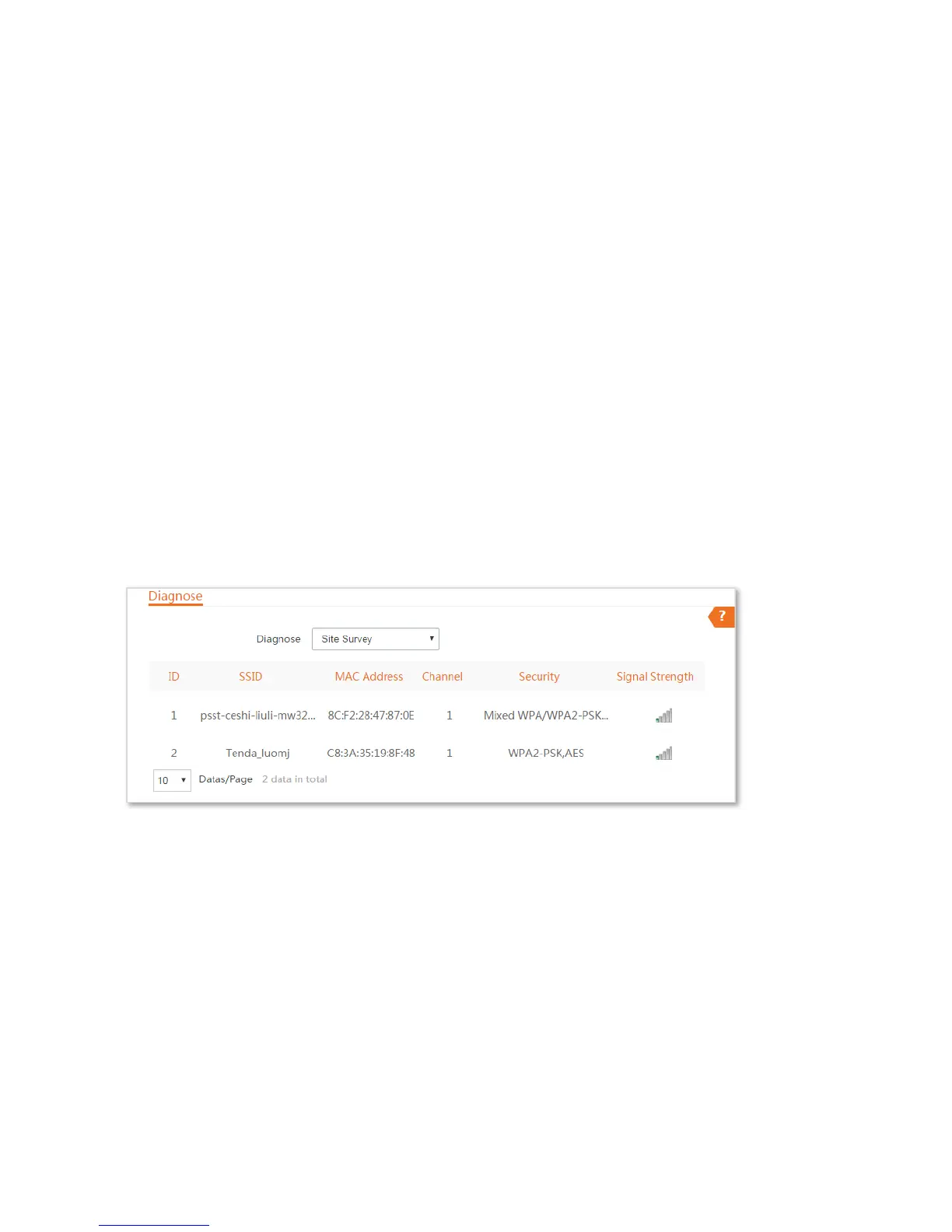

The diagnosis result will be displayed in a few seconds in the list below the Diagnose box. See the following
figure:
According to the diagnosis result, you can select a less interference channel (used by few devices) for the
wireless network of the CPE to improve the transmission efficiency.
8.2.3 Ping
You can use ping to detect the connectivity and quality of network connection.
Assume that you want to know whether the CPE can access google.
Configuration Procedure
Step 1 Choose Advanced > Diagnose.
Step 2 Select Ping in the Diagnose list.

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
