Tenda O3 User Manual

5

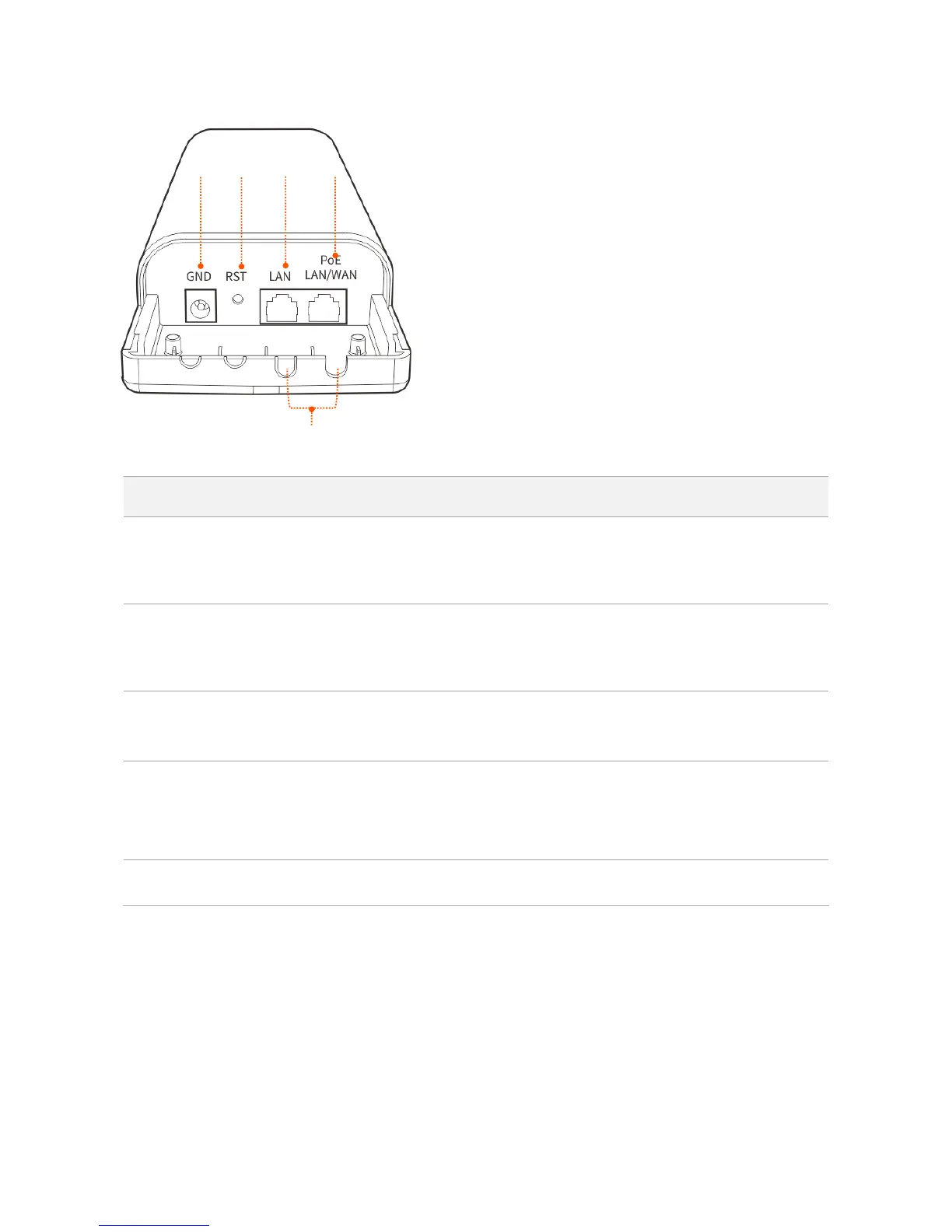

Button and Ports
O3
ID
Port/Button
Description
①
GND
Grounding jack
Use the included grounding screw and cable to connect the device’s grounding jack to a
grounding terminal of building to avoid ESD and lightning damage to the device.
②
RST
Reset Button
After the device is powered on for 1 minute, hold down this button for about 8 seconds.
When all the LED indicators on the device light up, the device is restored factory settings.
③
LAN
10/100 Mbps automatic negotiation RJ45 port.
Used to connect to a switch, computer, or other wired devices.
④
PoE LAN/WAN
It is used to supply power or transmit data.
If the device works in Router mode, it is a WAN port. Otherwise, it is a LAN port.
Use the included PoE injector to supply power to the device.
⑤
/
Ethernet cable inlet.
①
②
③
④
⑤

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
