3
Front Panel and Rear Panel Specifications
The front panel of 16/24-Port Gigabit Ethernet Switch includes 16/24
1000Mbps RJ-45 ports in the right side and LED indicators in the left side.
Each 1000Mbps port has 1 LINK/ACT indicator, 1 1000Mbps indicator; 1
power indicator in the front panel.

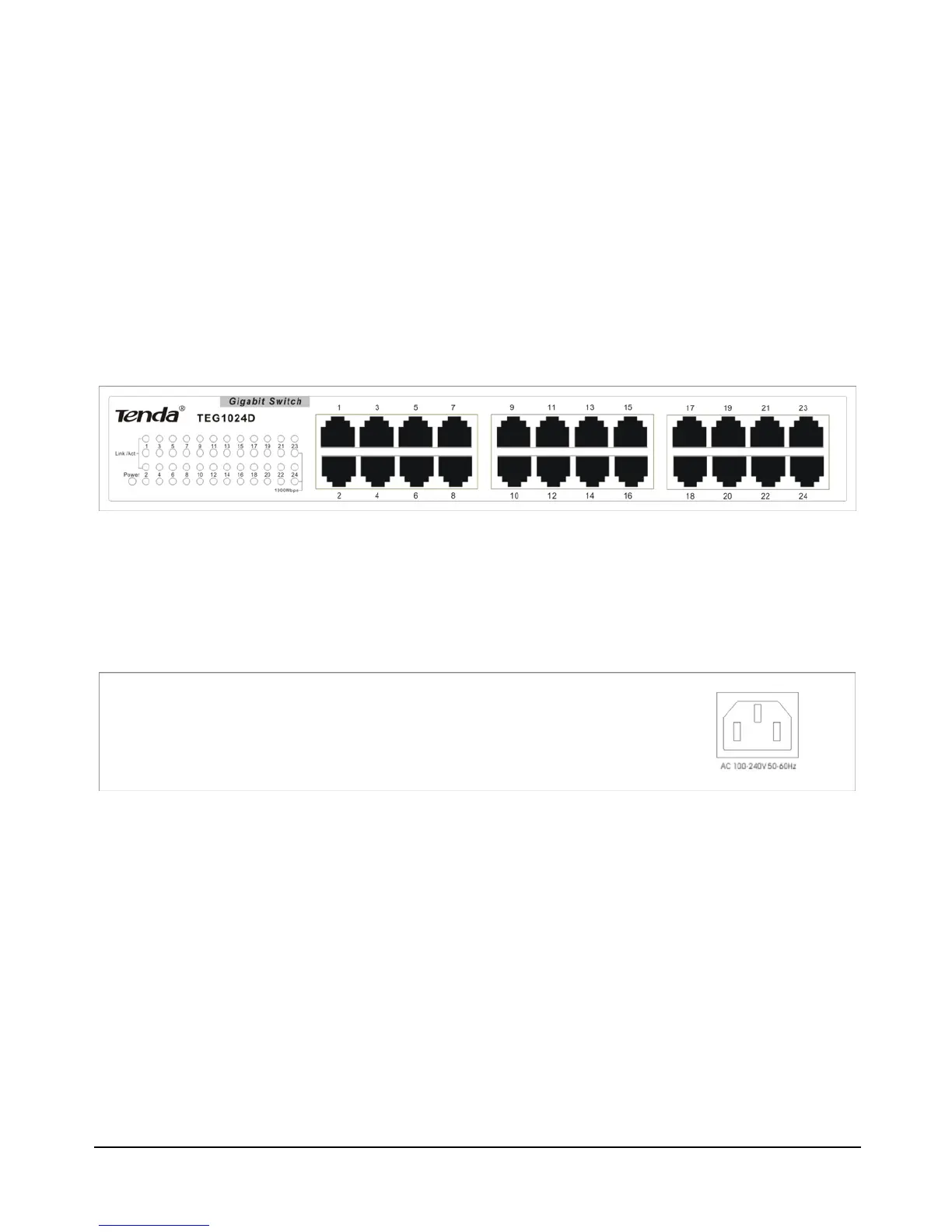

Front panel view of the Switch
The rear panel has 1 AC power port, used for AC power input.
Rear panel view of the Switch
LED Indicator Specifications
The LED indicators of the Switch include Power, Link/ACT and
10/100/1000Mbps indicators. You can see their operating situation through
these LED indicators.
