Tenma 72-3540 - Specifications; Rotary Switch Functions; General Specifications

7

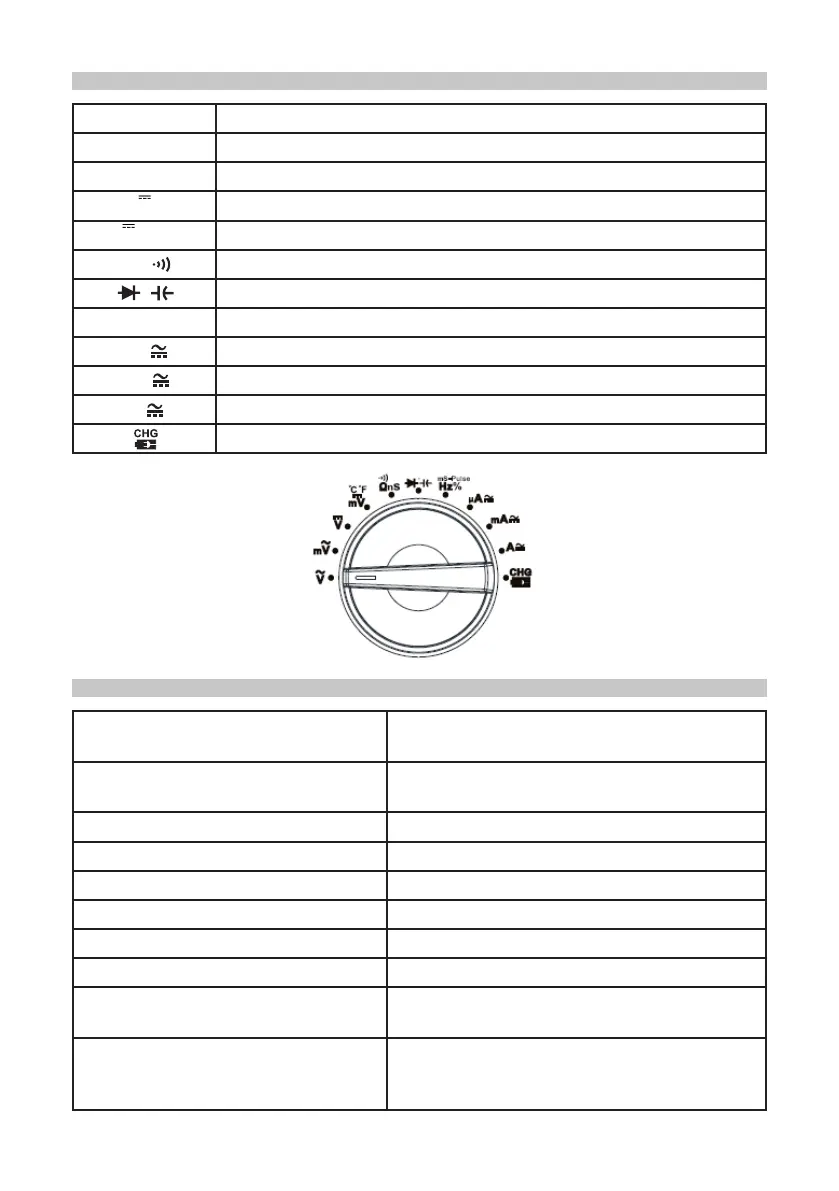

ROTARY SWITCH
Switch Symbol Function
Ṽ Measurement of AC voltage.
mṼ Measuremnt of mV in AC and mV in AC+DC.
V Measurement of voltage in DC and AC+DC.
mV °C °F Measurement of mV in AC and temperature.
ΩnS Measurement of resistance, continuity and specific conductance.
Diode test and capacitance measurement.
Hz% mS-Pulse Measurement of frequency, duty cycle and pulse width.
µA Measurement of µA in AC, DC and AC+DC.
mA Measurement of mA in AC, DC and AC+DC.
A Measurement of ampere in AC, DC and AC+DC.
Battery charge.
GENERAL SPECIFICATION
Max. voltage between any terminal
and ground
1000V
Fuse protection of mA or µA input
terminals
0.8A H 1000V fuse type 6 x 32mm
Fuse protection of A input terminals 10A H 1000V fuse type 10 x 38mm
Max. display 60000
Range Auto/manual
Polarity Auto
Operating temperature -20°C~50°C
Storage temperature -30°C~60°C
Relative humidity
≤80% (0°C~30°C), ≤75% (30°C~40C), ≤45%
(40°C~50C°)
Electromagnetic compatibility
In the RG-eld of 1V/m: overall accuracy =
specied accuracy + 5% of range.
No specied index for the RF-eld over 1V/m.
