Terex GS32MT-101 Service And Repair Manual

Service and Repair Manual August 2021
Power Cables
172 GS
™
-30m • 32m • 30 • 32 • 46 • 55 Part No. 1309020GT
12-1
Drive Motor Power Cables
How to R e place a Dri v e M oto r Pow e r Cabl e - GS-14 32m , GS -1932 m, GS -19 32m Lite, GS -1932 m X H
How to Replace a Drive Motor
Power Cable - Models with
electric drive
Note: Perform this procedure on a firm, level
surface with the machine in the stowed position.
Note: Perform this procedure with all external AC
power disconnected from the machine.
1 Turn the key switch to platform control and
pull out the red Emergency Stop button to the
on position at both the ground and platform
controls.
2 Steer the machine in the direction of the drive
motor power cable to be replaced.
3 At the ground controls, turn the key switch to
the off position and push in the red
Emergency Stop button to the off position.
4 Disconnect the battery pack from the
machine.
Electrocution/burn hazard.
Contact with electrically charged
circuits could result in death or
serious injury. Remove all rings,
watches and other jewelry.

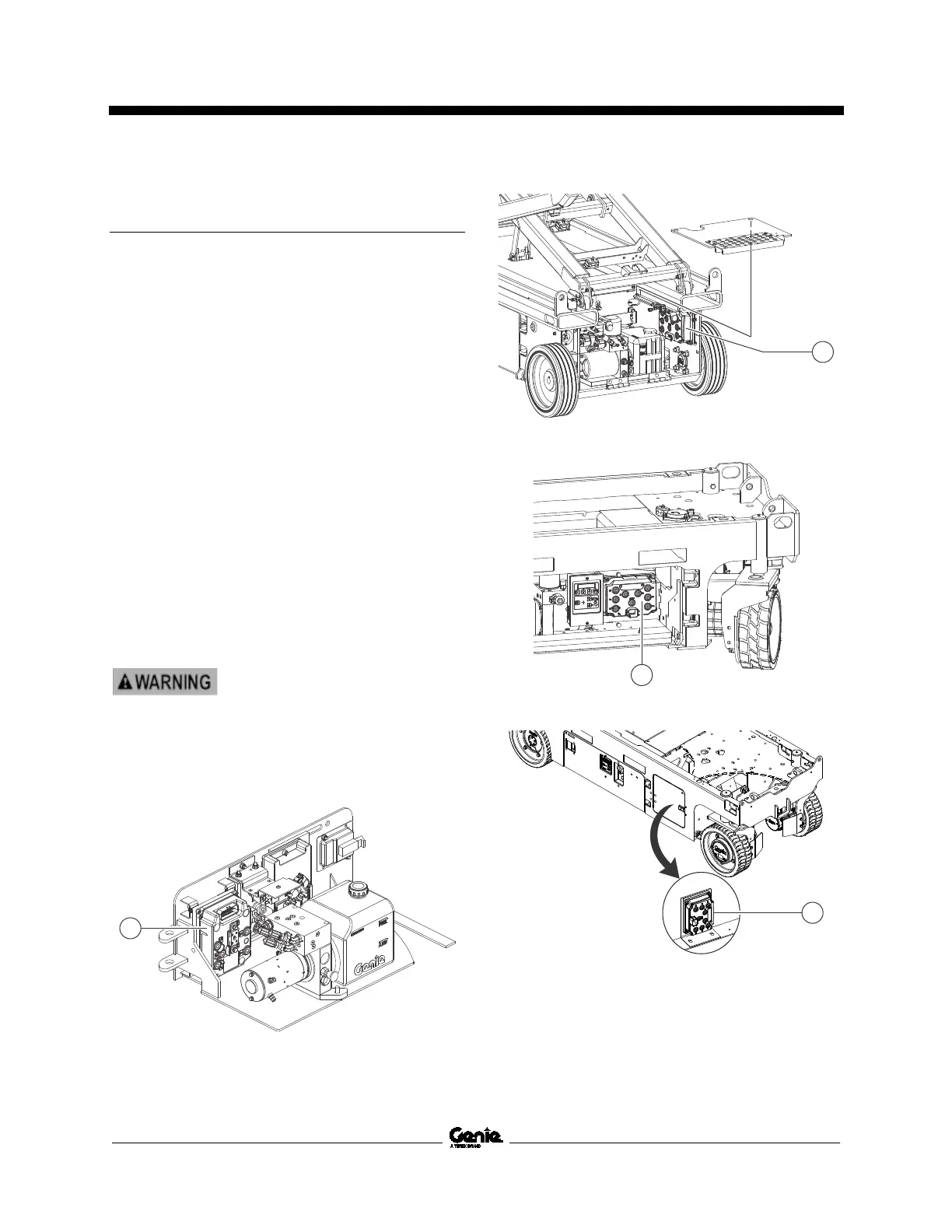

5 Locate the motor controller on the machine.
GS-1330m
GS-1432m, GS-1932m
GS-1530/1532, GS-1930/1932
GS-32, GS-46, GS-55
1 motor controller
1
1
1
1
