Terex GS32MT-101 Service And Repair Manual

August 2021 Service and Repair Manual
Manifolds
Part No. 1309020GT GS
™
-30m • 32m • 30 • 32 • 46 • 55 49
5-3

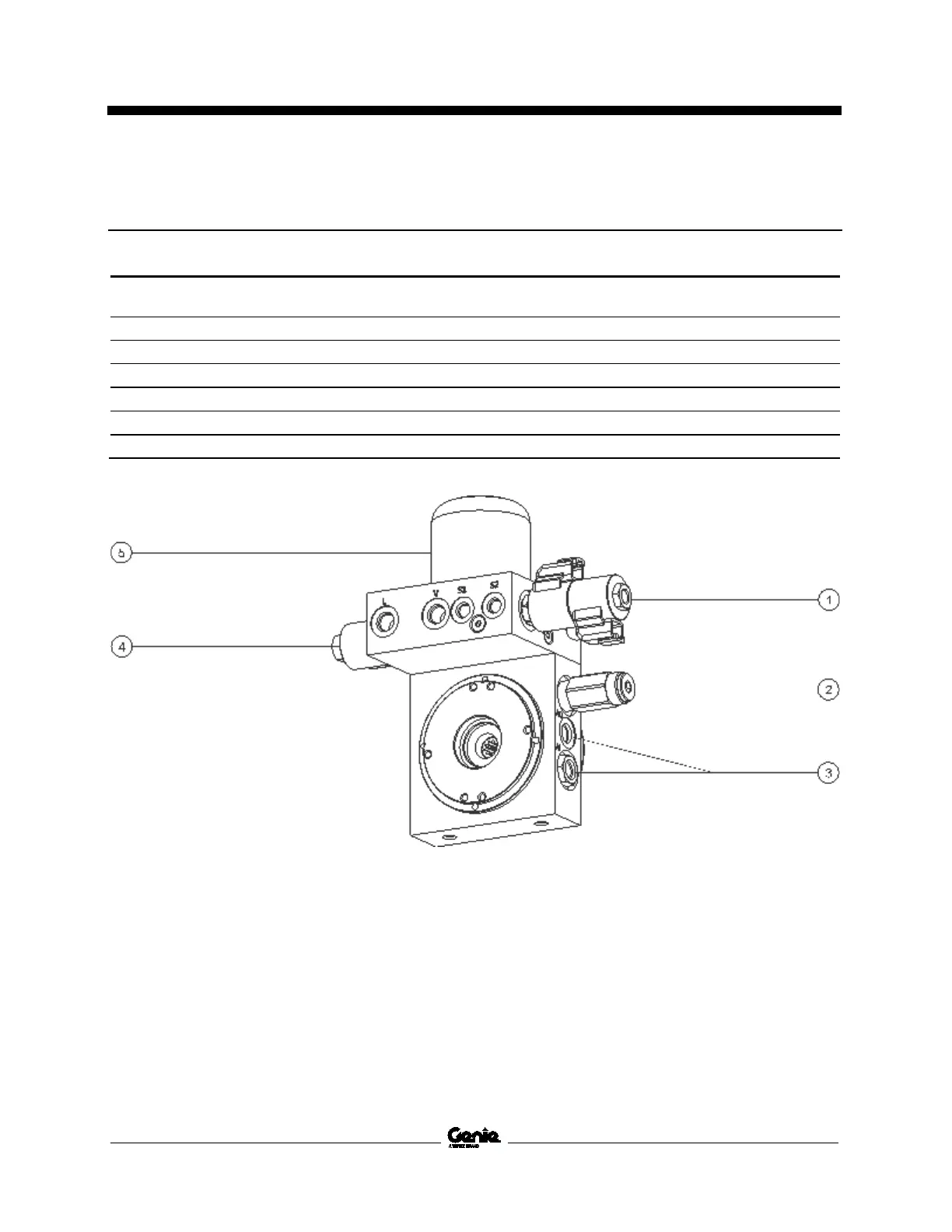

Function Manifold Components – GS-3232
The function manifold is mounted on the hydraulic pump.
Index No. Description
Schematic
Item
Function Torque
1
Solenoid valve, 2 position 4 way
HB
Steer left/right
20 ft-
lbs / 27 Nm
2
Relief valve, 2900 psi / 200 bar
HA
System relief
20 ft-
lbs / 27 Nm
3
Outriggers extend / retract
HE Outrigger circuit ---
4
Solenoid valve,
2 position 4 way HD Platform up
20 ft-lbs / 27 Nm
5
Hydraulic filter, 1
8 psi / 1,2 bar HC Filters hydraulic fluid
13-17 ft-lbs / 18-
23 Nm
---
Coil nut
HB, HD ---
5-7 ft-lbs / 7-
9 Nm
How to Install a Valve Cartridge
1 Dip the cartridge in clean oil to lube the O-rings.
2 Screw the cartridge in by hand until the top O-ring is met, then torque to specifications.
3 If required, install the valve coil(s) onto the valve stem. Install the coil nut onto the valve stem and
torque to specifications.
