Terex GS32MT-101 Service And Repair Manual

August 2021 Service and Repair Manual
Specifications
Part No. 1309020GT GS
™
-30m • 32m • 30 • 32 • 46 • 55 13
Hydraulic Hose and Fitting
Torque Specifications
Your machine is equipped with Parker Seal-Lok™
ORFS or 37° JIC fittings and hose ends. Genie
specifications require that fittings and hose ends
be torqued to specification when they are removed
and installed or when new hoses or fittings are
installed.
Seal-Lok™ Fittings
(hose end - ORFS)
SAE Dash Size
Torque
-4 18 ft-lbs / 25 Nm
-6 30 ft-lbs / 41 Nm
-8
40 ft-lbs / 55 Nm
-10 60 ft-lbs / 81 Nm
-12 85 ft-lbs / 115 Nm
-16 110 ft-lbs / 150 Nm
-20 150 ft-lbs / 205 Nm
-24 230 ft-lbs / 315 Nm
JIC 37° Fittings
(swivel nut or hose connection)
SAE Dash Size
Thread Size
Flats
-4 7/16-20 2
-6 9/16-18 1 1/2
-8 3/4-16 1 1/2
-10 7/8-14 1 1/2
-12 1 1/16-12 1 1/4
-16
1 5/16-12
1
-20 1 5/8-12 1
-24 1 7/8-12 1
SAE O-ring Boss Port
(tube fitting - installed into Aluminum)
(all types)
SAE Dash Size
Torque
-4 14 ft-lbs / 19 Nm
-6 23 ft-lbs / 31,2 Nm
-8
36 ft-lbs / 49 Nm
-10 62 ft-lbs / 84 Nm
-12 84 ft-lbs / 114 Nm
-16 125 ft-lbs / 169,5 Nm
-20 151 ft-lbs / 204,7 Nm
-24 184 ft-lbs / 249,5 Nm

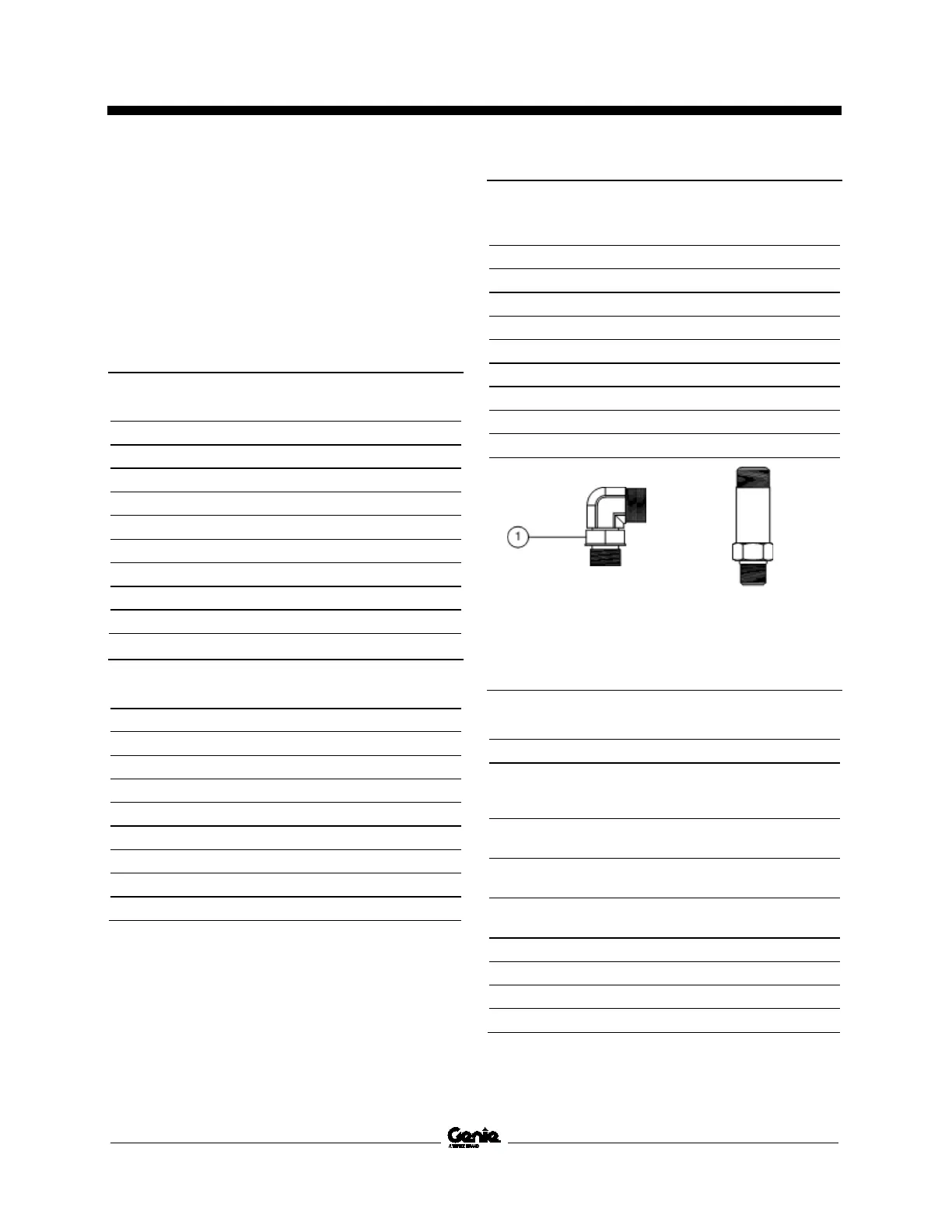

Adjustable Fitting Non-adjustable fitting
1 jam nut
SAE O-ring Boss Port
(tube fitting - installed into Steel)
SAE Dash Size Torque
-4
ORFS / 37° (Adj)
ORFS (Non-adj)
37° (Non-adj)
15 ft-lbs / 20,3 Nm
26 ft-lbs / 35,3 Nm
22 ft-lbs / 30 Nm
-6
ORFS (Adj / Non-adj)
37° (Adj / Non-adj)
35 ft-lbs / 47,5 Nm
29 ft-lbs / 39,3 Nm
-8 ORFS (Adj / Non-adj)
37° (Adj / Non-adj)
60 ft-lbs / 81,3 Nm
52 ft-lbs / 70,5 Nm
-10
ORFS (Adj / Non-adj)
37° (Adj / Non-adj)
100 ft-lbs / 135,6 Nm
85 ft-lbs / 115,3 Nm
-12 (All types)
135 ft-lbs / 183 Nm
-16 (All types)
200 ft-lbs / 271,2 Nm
-20 (All types)
250 ft-lbs / 339 Nm
-24 (All types)
305 ft-lbs / 413,5 Nm
