Operator's Manual First Edition • Second Printing
Legend
16 RL4 Vertical Mast Part No. 1266664

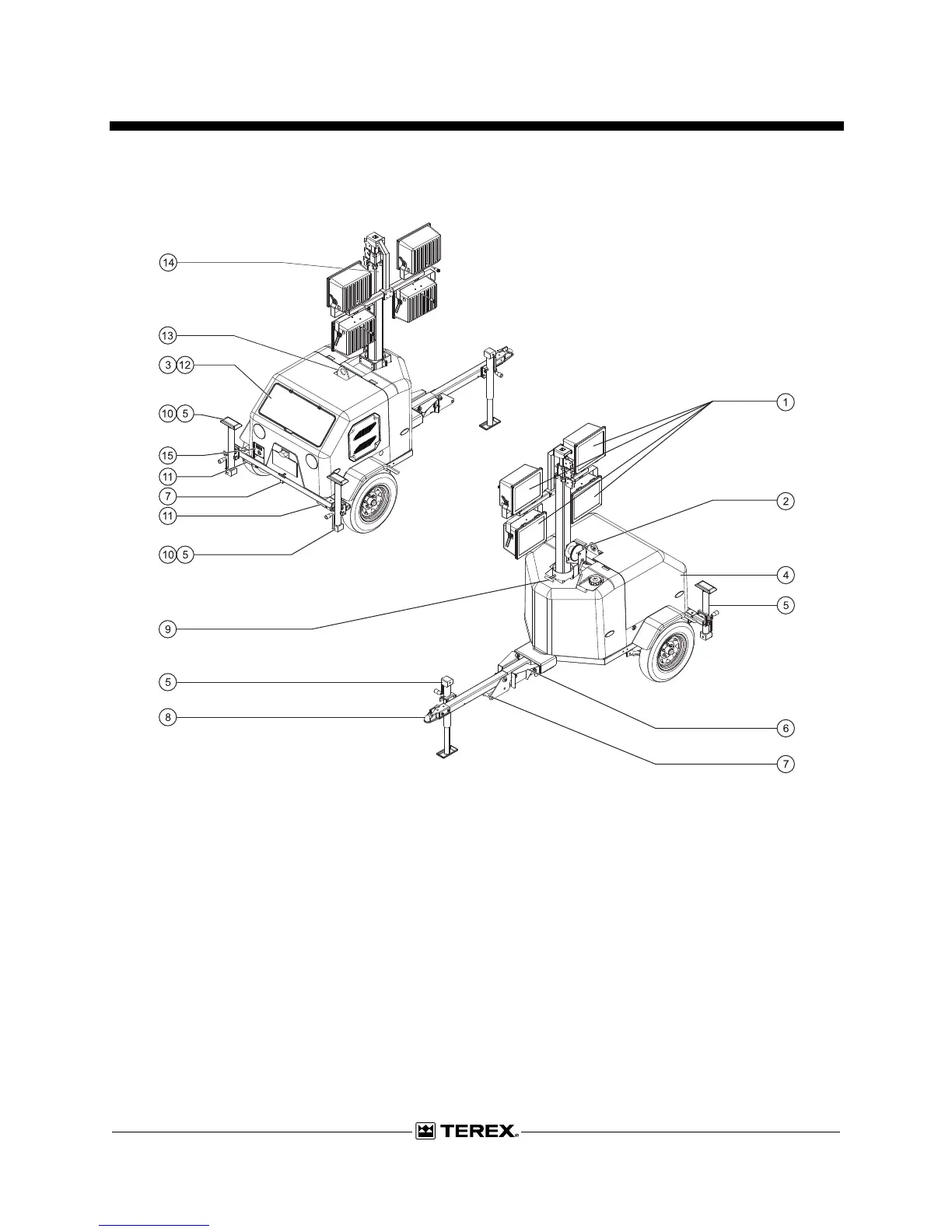

Legend
1 Lamps
2 Winch
3 Control panel (located under access door)
4 Manual storage (located inside cabinet)
5 Leveling jack
6 Kickstand
7 Tie-downs
8 Tongue with trailer hitch
9 T-handle for mast rotation lock
10 Outrigger
11 Forklift pockets
12 Control panel access door
13 Lifting eye
14 Mast
15 GFCI and T-lock receptacle panel

Terex RL4 Specifications

General

Light Type	Metal Halide
Number of Lamps	4
Lamp Wattage	1000 W
Fuel Type	Diesel
Generator Output	6 kW
Voltage	120/240 V
Frequency	60 Hz
Engine	Kubota D1005
Mast Height	30 ft
Weight	2200 lbs
