Operator's Manual First Edition • Second Printing
Inspections
24 RL4 Vertical Mast Part No. 1266664
Function Tests

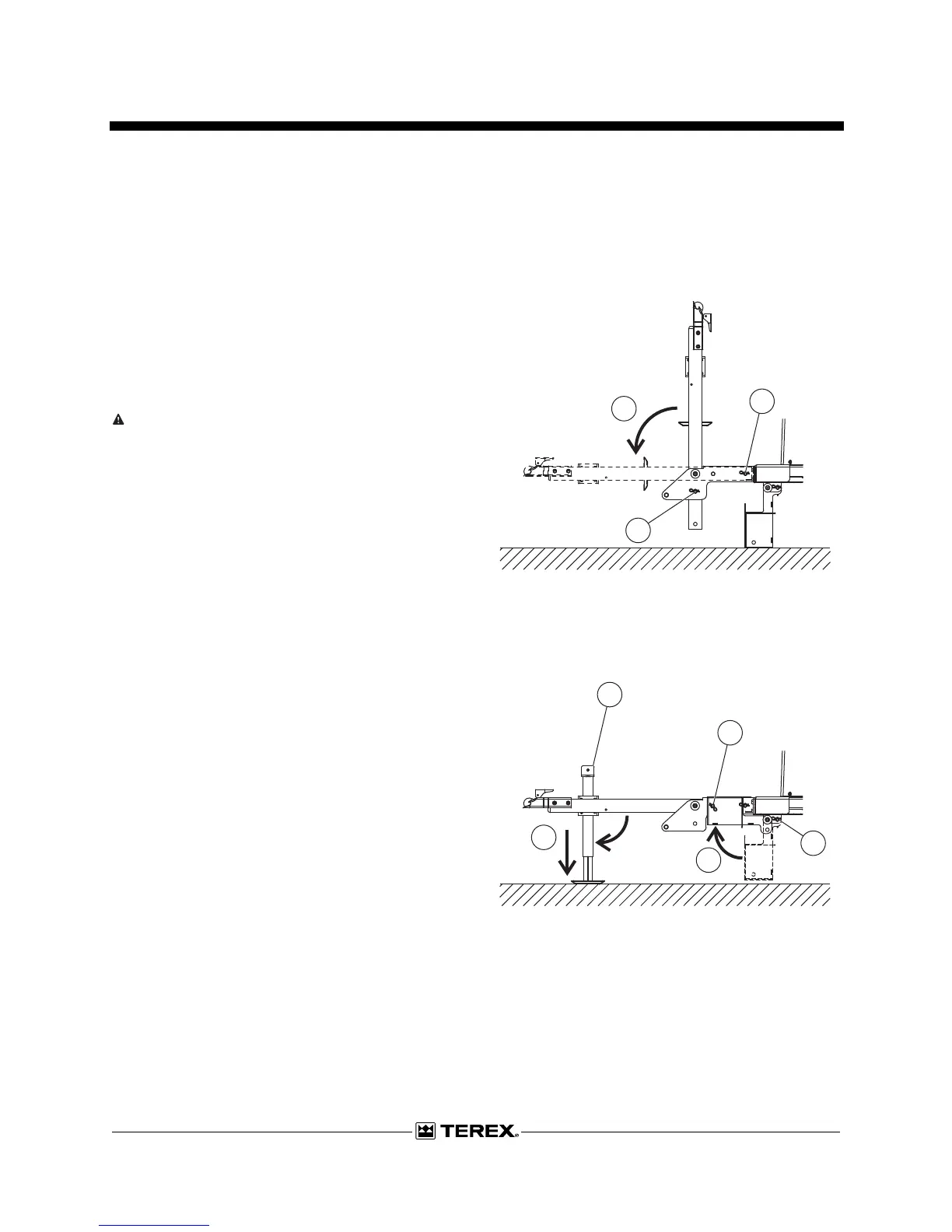

Lowering the tongue for use or towing
This light tower is equipped with a deployable
tongue to maximize shipping units. Before towing
or setting this machine up for operation on a work
site for the first time follow the steps below. If the
tongue has already been deployed properly
proceed to the next section.
Crush/Pinch hazard. Keep hands and fingers
away from any potential crush or pinch points
during procedure.
1 Support the tongue so that it does not fall and
remove the tongue locking clip and pin (1)
shown and retain.
2 Rotate the tongue down into the light tower
operating and towing position.
3 Re-install the locking clip and pin removed in
step 1 to the new position (3). This will secure
the tongue for light tower operation and
towing.
4 Pull the jack release pin and rotate the tongue
jack into vertical position.
5 Turn the leveling jack handle to lower the front
outrigger foot pad and raise the tongue of the
machine until the kickstand is not contacting
the ground.
6 Remove the kickstand locking clip and pin (6)
shown and retain.
7 Rotate the kickstand up into the light tower
operating and towing position.
8 Re-install the locking clip and pin removed in
step 6 to the new position (8). This will secure
the kickstand for light tower operation and
towing.
1
6
5
7
3
2
8
4
To Next Page
