Operator's Manual First Edition • Second Printing
Transport and Lifting Instructions
38 RL4 Vertical Mast Part No. 1266664
Transport and Lif ting Instructions
Observe and Obey:
Terex Corporation provides this securement
information as a recommendation. Drivers are
solely responsible for making sure machines
are properly secured and the correct trailer is
selected pursuant to US Department of
Transportation regulations, other localized
regulations, and their company policy.
Terex customers needing to containerize any
Terex product should source a qualified freight
forwarder with expertise in preparing, loading
and securing construction and lifting
equipment for international shipment.
The transport vehicle must be parked on a
level surface.
The transport vehicle must be secured to
prevent rolling while the machine is being
loaded.
Be sure the vehicle capacity, loading surfaces
and chains or straps are sufficient to withstand
the machine weight. See the serial label for the
machine weight.
Common sense and planning must be applied
to control the movement of the machine when
lifting it with a crane or forklift.
Securing to Truck or Trailer for
Transit
Before loading the light tower onto a trailer refer to
"Raising the tongue or storage and shipping" in the
"Operating Instructions" section of this manual.
Rotate the light bar parallel to the tongue of the
machine and tighten the T-handle, into the notch,
to secure.
Fully lower the mast to the stowed position.
Fully retract, raise and lock all outrigger jacks and
outriggers.
Close and secure the cabinet doors.
Inspect the entire machine for loose or unsecured
items.

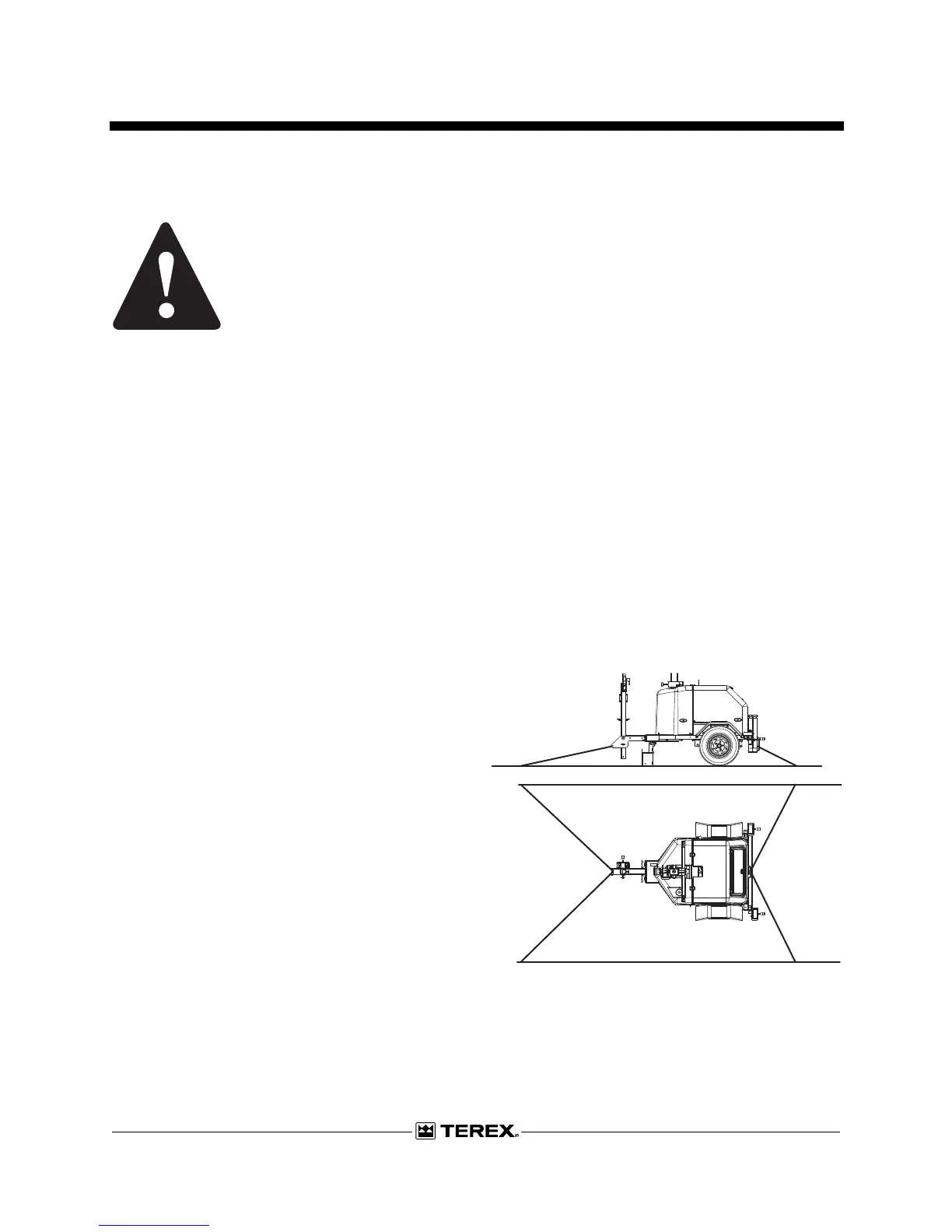

Use the three tie-down points for anchoring down
to the transport surface.
Use a minimum of four chains to secure the light
tower.
Adjust the rigging to prevent damage to the chains.
