Terex RL4000 Operator's Manual

Operator's Manual
First Edition • Second Printing
Part No. 116692 RL4000 • TML-4000 13

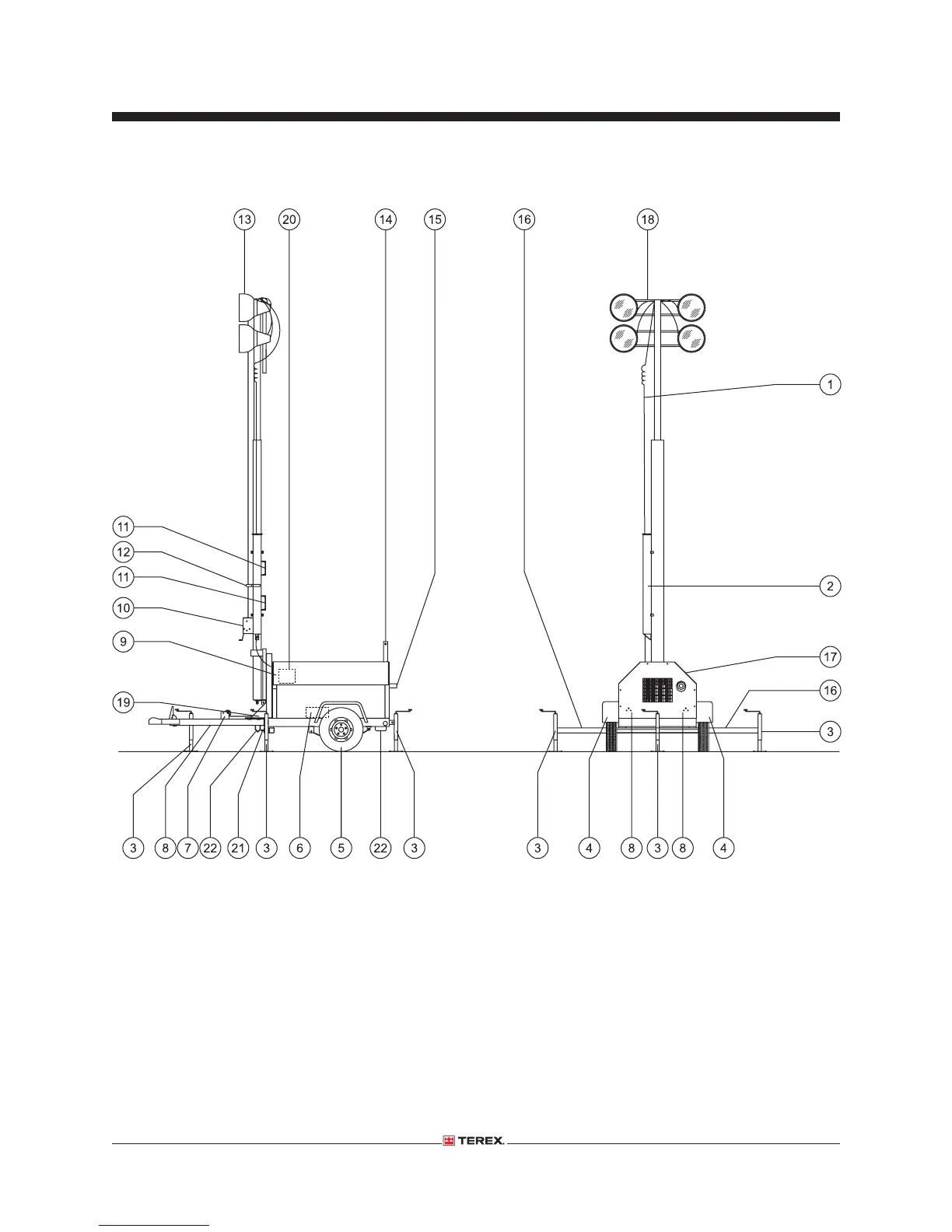

1 Coil cord
2 Coil cord sleeve
3 Leveling jack
4 Fender
5 Tire
6 Ballast (located inside cabinet)
7 Raise/lower winch
8 Tongue
9 Road side door
10 Extent/retract winch
11 Forklift pockets
12 Lifting eye
13 Lamps
14 Upper retaining pin
15 Muffler
16 Outrigger
17 Curb side door
18 Light bar
19 Lower retaining pin
20 Control panel (located inside cabinet)
21 Spring pin
22 Tie-downs
Legend - RL4000 model

Terex RL4000 Specifications

General

Number of Lights	4
Fuel Type	Diesel
Mast Height	9 m (30 ft)
Light Type	LED
Lamps	LED
Illuminated Area	4000 m²
