Terex RL4000 Operator's Manual

Operator's Manual First Edition • Second Printing
16 RL4000 • TML-4000 Part No. 116692

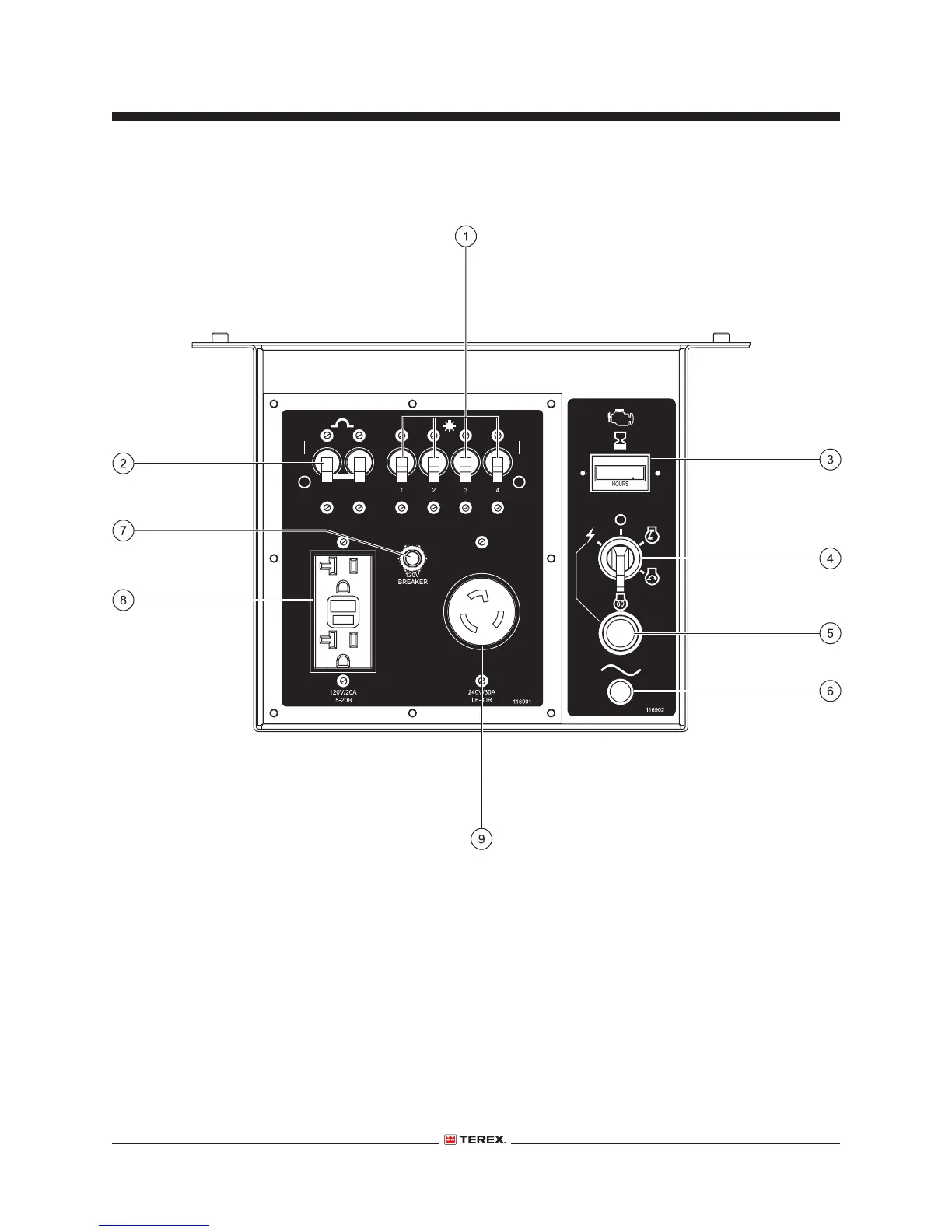

Control Panel
1 Light switches
2 Main circuit breaker
3 Hour meter
4 Ignition switch for engine
Controls - Both Models
5 Engine prime button
6 Alternator failure light
7 Mini breaker, 120V
8 Duplex receptacle with GFI, 120V/20A
9 T-lock receptacle, 240V/30A

Terex RL4000 Specifications

General

Number of Lights	4
Fuel Type	Diesel
Mast Height	9 m (30 ft)
Light Type	LED
Lamps	LED
Illuminated Area	4000 m²
