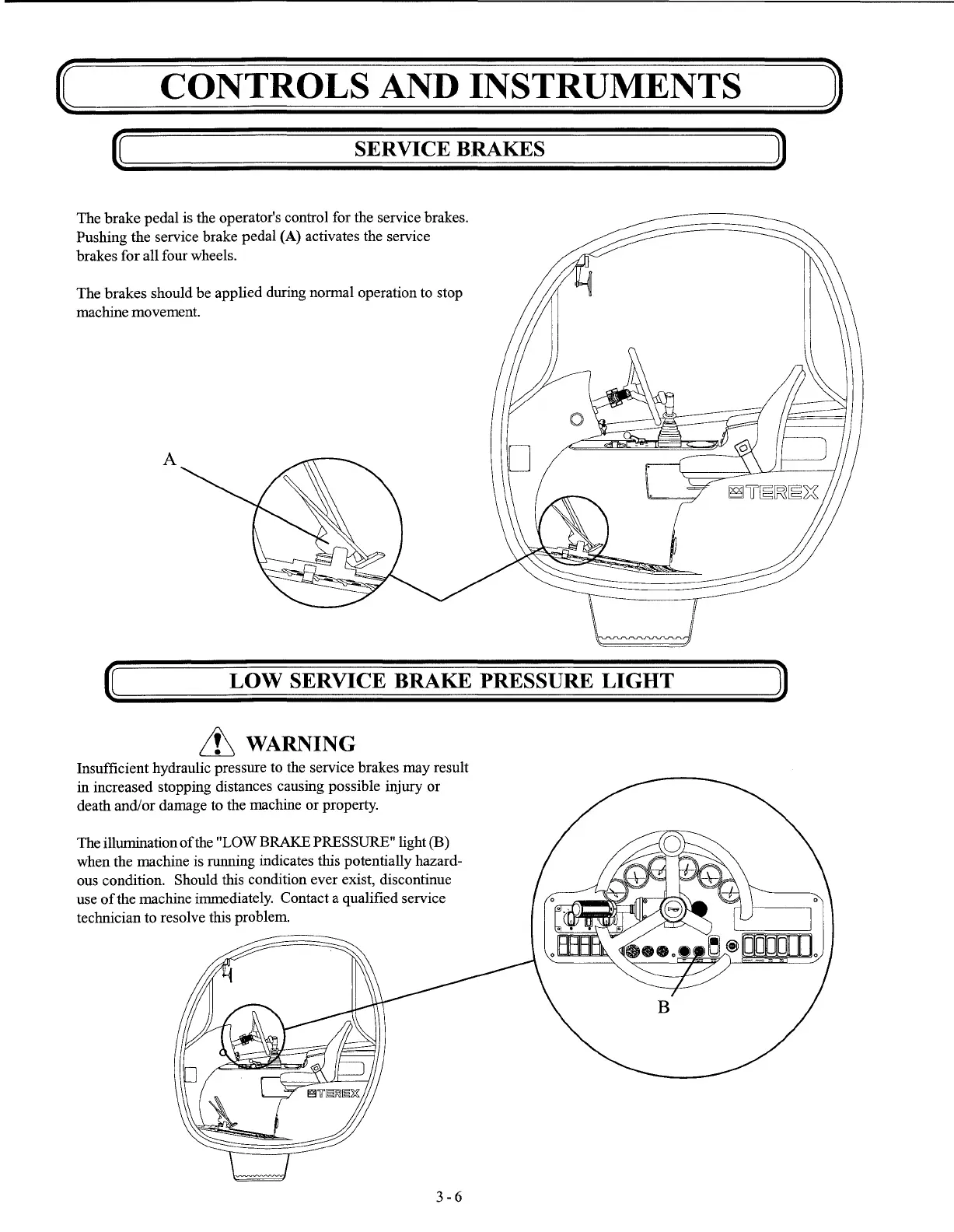

CONTROLS
AND
INSTRUMENTS
SERVICE BRAKES
The brake pedal is the operator's control for the service brakes.
Pushing the service brake pedal
(A) activates the service
brakes for all four wheels.
The brakes should be applied during normal operation to stop
machine movement.
A
LOW SERVICE BRAKE PRESSURE LIGHT
LL
WARNING
Insufficient hydraulic pressure to the service brakes may result
in increased stopping distances causing possible injury
or
death and/or damage to the machine
or
property.
The illumination
of
the "LOW BRAKE PRESSURE" light (B)
when the machine is running indicates this potentially hazard-
ous condition. Should this condition ever exist, discontinue
use
of
the machine immediately. Contact a qualified service
technician to resolve this problem.
3-6
