CONTROLS AND INSTRUMENTS
FRAME SWAY CONTROL
& WARNING
Always ensure that the machine level indicator (B) is at zero (0)
degrees before raising the boom. Raising the boom with an
unlevel machine may cause the machine to overturn, resulting
in injury or death.
LLWARNING
Use the frame sway control to level the machine only when the
boom angle indicator is at
0 degrees or less. Using the frame
sway control when the angle indicator is more than
0 degrees
may cause the machine to overturn, resulting in injury or death.

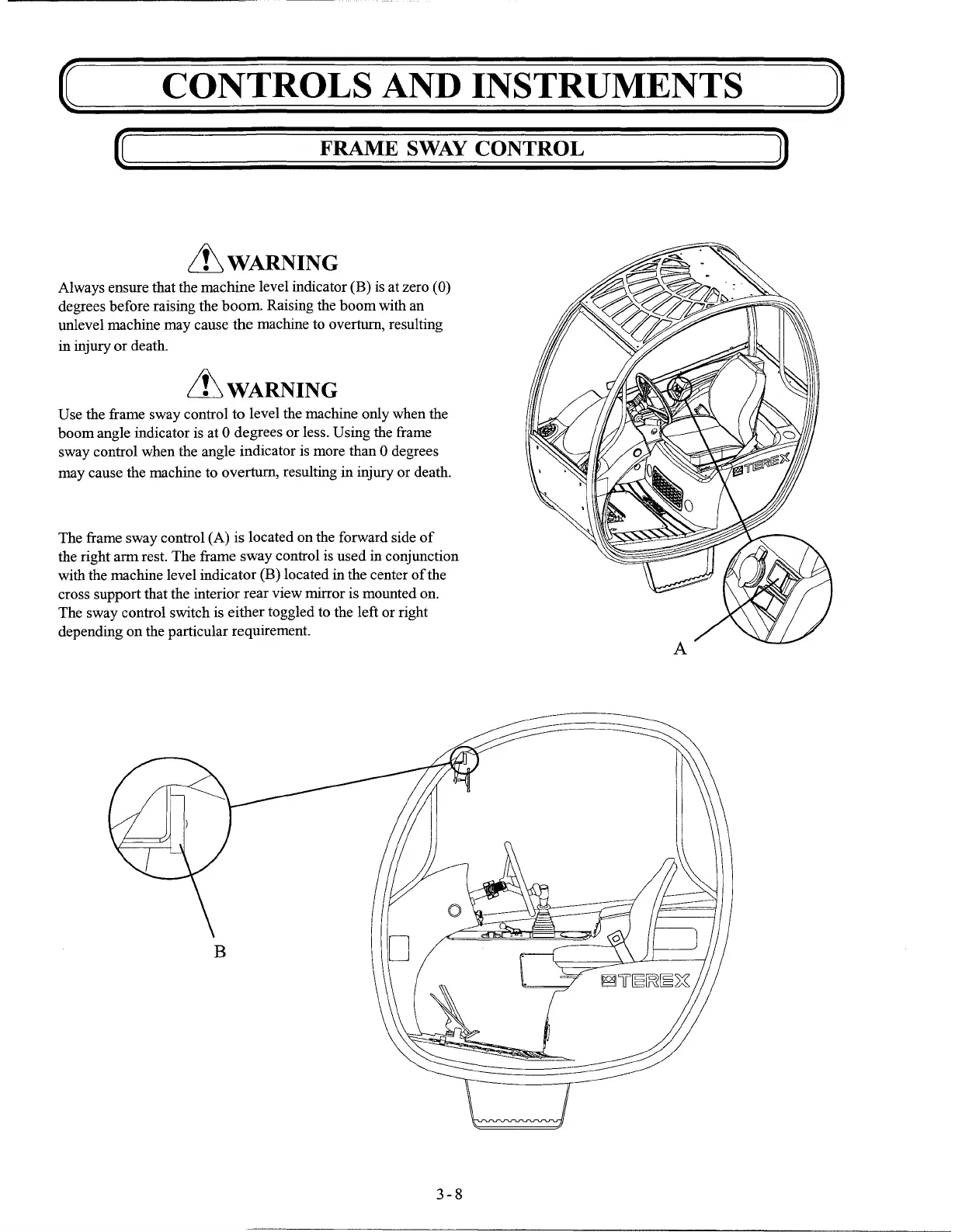

The frame sway control (A) is located on the forward side
of
the right arm rest. The frame sway control is used in conjunction
with the machine level indicator (B) located in the center
ofthe
cross support that the interior rear view mirror is mounted on.
The sway control switch is either toggled to the left or right
depending on the particular requirement.
