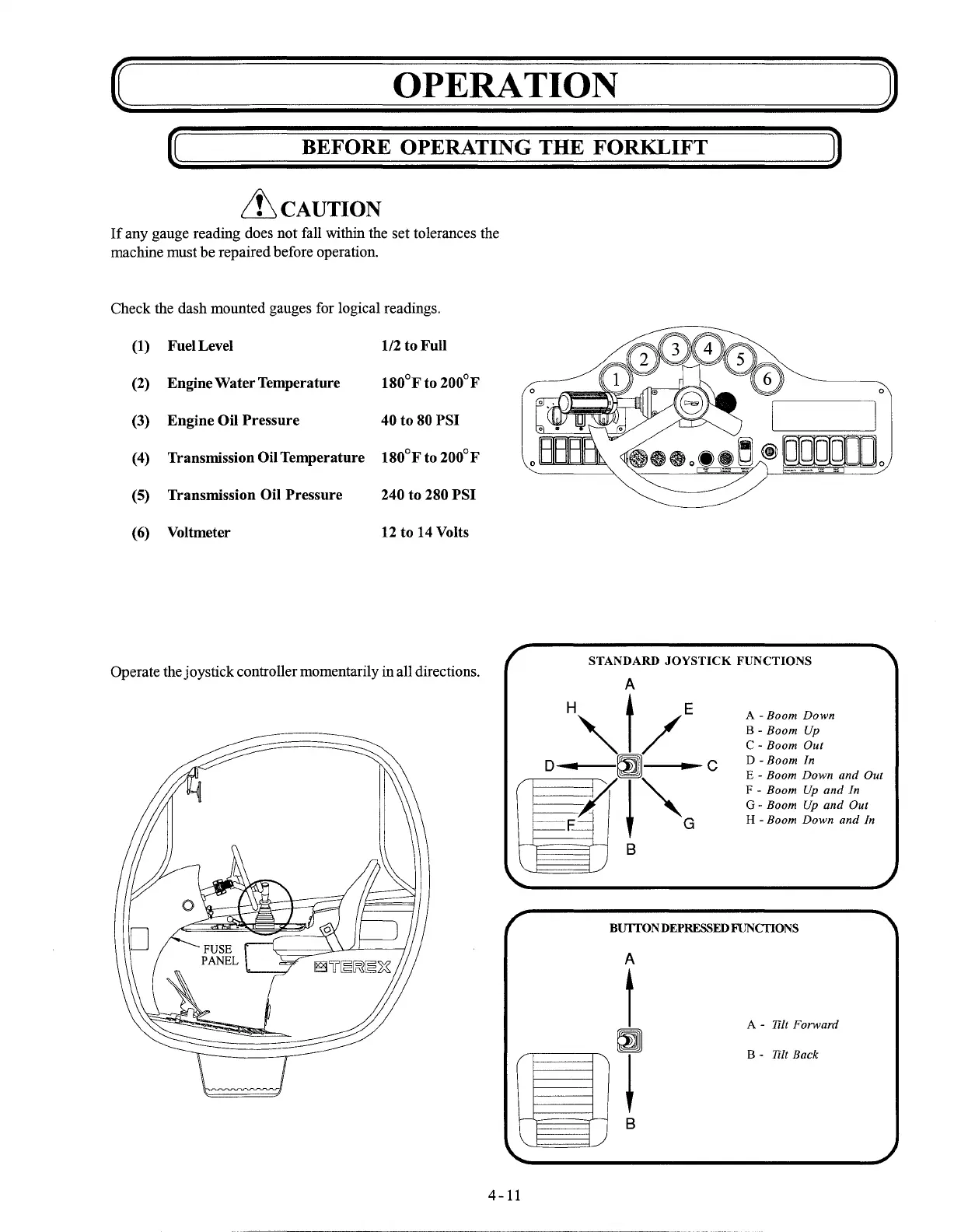

Terex TH644C - Before Operating the Forklift

OPERATION
BEFORE OPERATING THE FORKLIFT
~CAUTION
If any gauge reading does not fall within the set tolerances the
machine must
be repaired before operation.
Check the dash mounted gauges for logical readings.
(1) Fuel Level
112 toFuH
(2) Engine Water Temperature
180°F to 200°F
(3)
Engine Oil Pressure
40 to 80 PSI
(4)
Transmission
Oil Temperature
180°F to 200°F
(5)
Transmission Oil Pressure 240 to 280 PSI
(6)
Voltmeter
12
to 14 Volts
Operate the joystick controller momentarily in all directions.
STANDARD JOYSTICK FUNCTIONS
A
H",t/E
A -Boom Down
B - Boom Up
C - Boom Out
D-BoomIn
o
o
o ... .. C
Ei"'G
E - Boom Down and Out
F - Boom Up and In
G - Boom Up and Out
H - Boom Down and In
BUTTON DEPRESSED FUNCTIONS
A - TIlt Forward
B - TIlt Back
4-11
