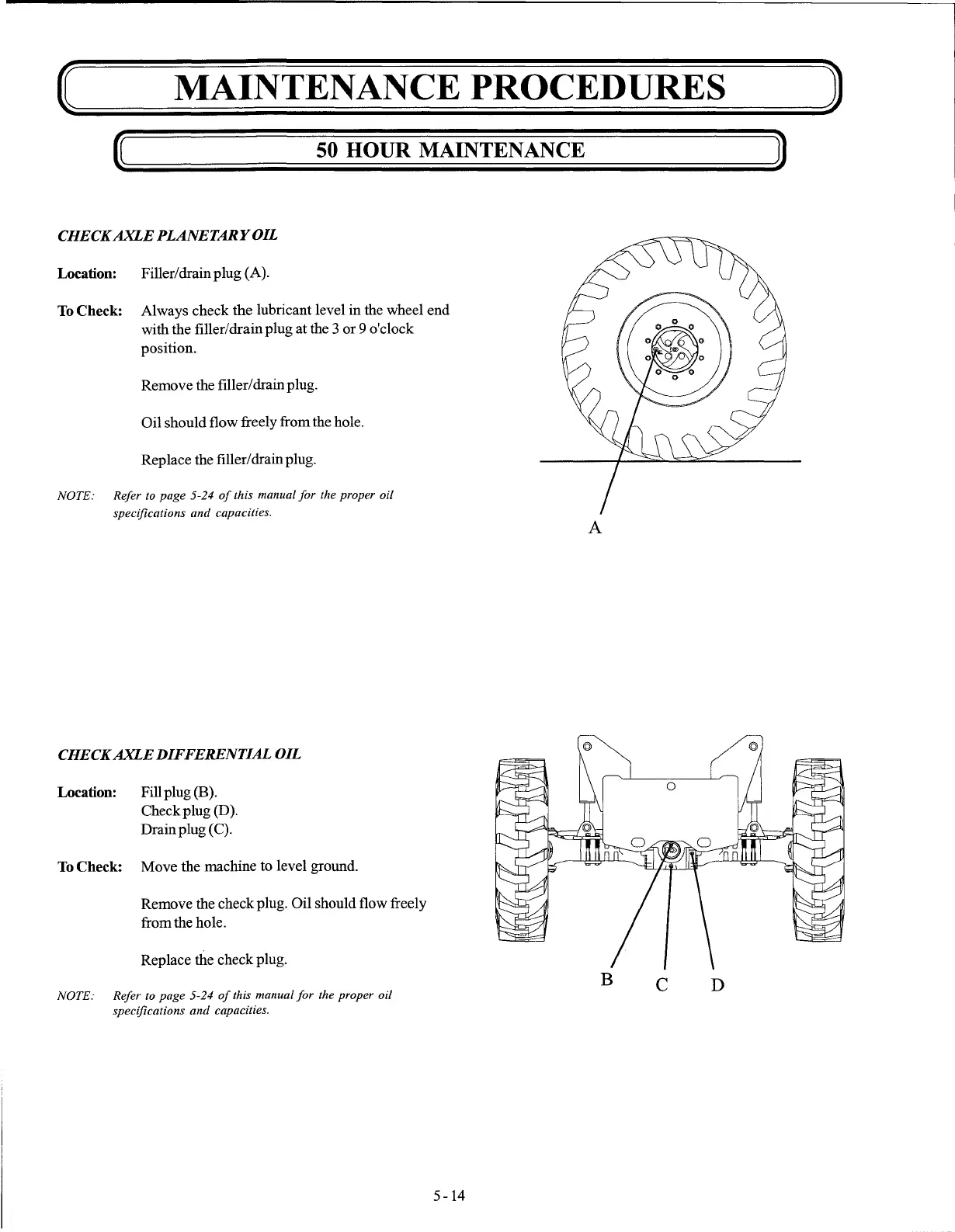

50 HOUR MAINTENANCE
CHECKAXLE
PLANETARY
OIL
Location:
Filler/drain plug (A).
To
Check: Always check the lubricant level in the wheel end
with the filler/drain plug at the 3 or 9 o'clock
position.
Remove the filler/drain plug.
Oil should flow freely from the hole.
Replace the filler/drain plug.
NOTE: Refer
to
page 5-24
of
this manual for the proper oil
specifications and capacities.
CHECK AXLE DIFFERENTIAL OIL
Location:
Fill plug (B).
Check plug (D).
Drainplug (C).
To
Check:
Move the machine to level ground.
Remove the check plug.
Oil should flow freely
from the hole.
Replace the check plug.
NOTE: Refer
to
page 5-24
of
this manual for the proper oil
specifications and capacities.
5-14
A
B
c D
