7 Maintenance and Care
92 TL80
7.9.13.2 Differential of rear axle with transmission
Checking the axle oil level
• Remove the inspection plug (56/1) check and
top up oil if required.
Changing axle oil
The rear axle differential and the
transmission have combined oil filling.
• Park the machine on level ground.
• Open the inspection-filling plug (56/1).
• Open the drain plugs on the differential (56/2)
and the transmission (56/3) and drain oil.
• Flush out the axle if necessary.
• Carefully close the drain plugs.
• Pour in oil using the inspection-filling hole
(56/1) until oil escapes.
• Carefully close the inspection-filling plug.
L834-056
1
X
X
2
3

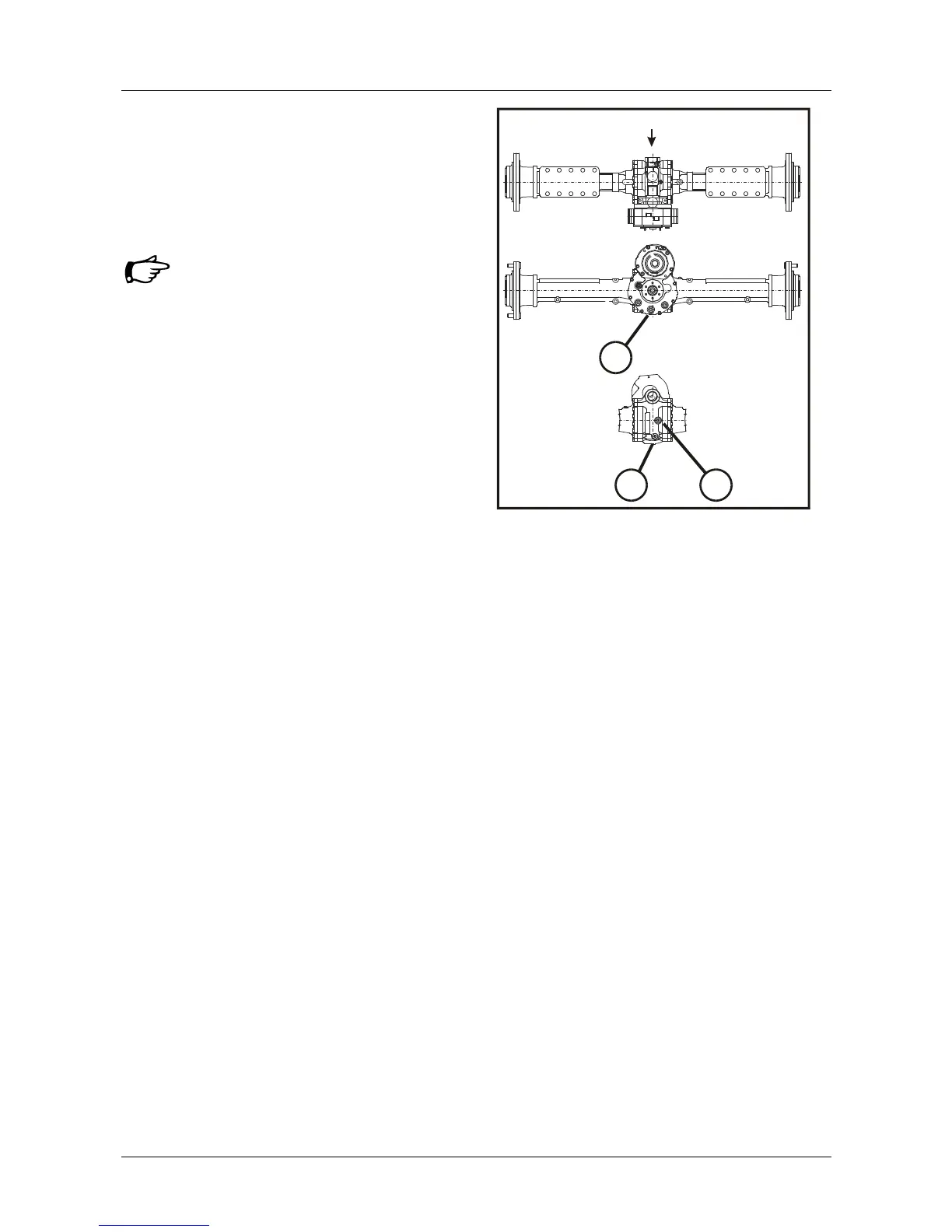

Fig. 56 Rear axle
