Terrasat IBUC 2 - Monitor and Control

System Components | 2-15
Engineered to Endure
• Littelfuse 213 Series. (5x20mm time-lag surge withstand glass body cartridge for
medium current ratings)
• Littelfuse 218 Series
. (5x20mm time-lag glass body cartridge for high current
ratings)
• Littelfuse FLQ Series
. (10x38mm time-delay midget fuse for high voltage, high
current ratings)
• Littelfuse 326 Series
. (6.3x32mm Slo-Blo® Fuse with ceramic body construction
for high interrupting and voltage ratings)
• Littelfuse 332 Series
. (6.3x32mm Very Fast-Acting fuse for solid-state device
protection)

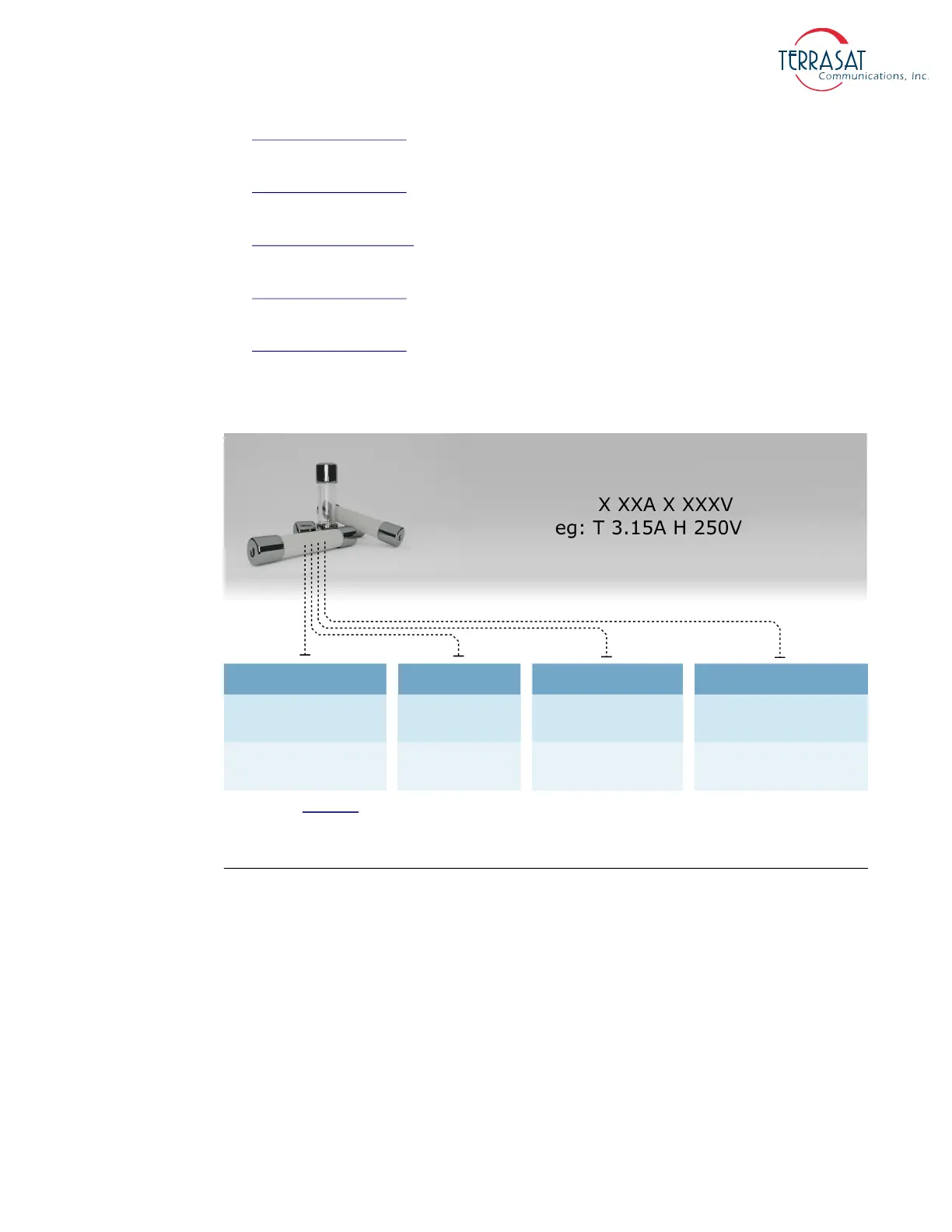

Figure 2.5 explains the fuse marking schema.
Monitor and Control
Each IBUC is equipped with extensive monitor and control (M&C) capabilities. Use
any of the following methods to access those capabilities:
• Via the J2 connector using RS232. This method requires that a separate cable must
be run and connected to J2.
Figure D.1 on page D-2 contains a drawing for fabricating your own cable.
• Via the J4 connector using TCP/IP. This method requires a separate Ethernet
cable.
Figure D.2 on page D-3 contains a drawing for fabricating your own cable.
Fuse Element Speed Current Rating Breaking Capacity Voltage Rating
T: Slow Acting (Träge) 3A: 3 Ampere H: High Breaking
Capacity
250V: 250 Volts or Less
L: Low Breaking
Capacity
Figure 2.5 IEC 127 Compliant Fuse Marking
