General Requirements | 3-11
The Cyber Hardened IBUC 2, IBUC 2e, IBUC 2G, IBUC R or IBUC G have
mounting holes on both sides of the unit that can be used to attach the IBUC to the
antenna. For the location of these mounting holes, see Figure 3.4.

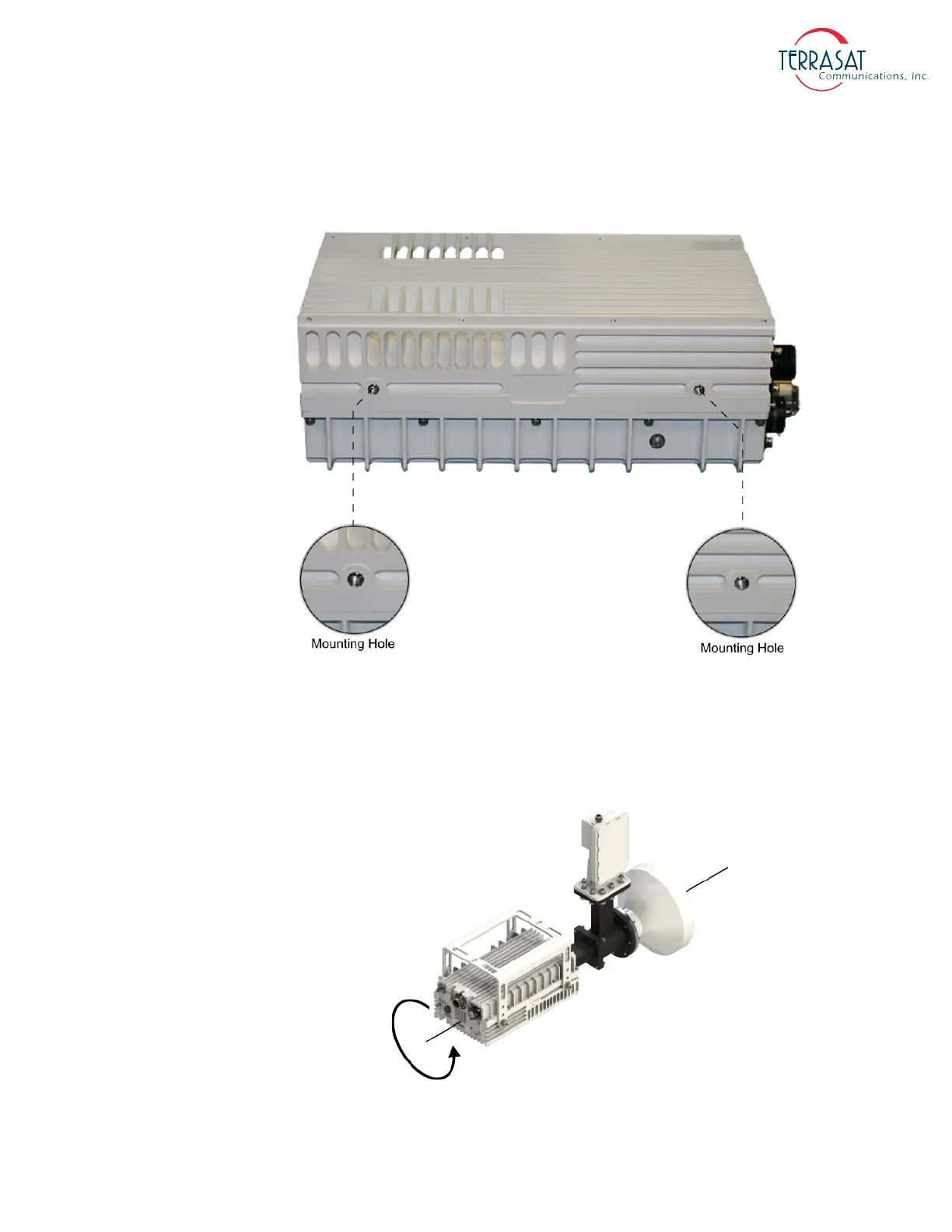

Figure 3.4
Location of Mounting Holes
There is also a single mounting hole located on the front of the IBUC that is identified
in Figure 2.1 to Figure 2.3 on page 2-11. This mounting hole is on the same axis as the
center of the waveguide of the unit (that is, it is in line with the center of the
waveguide). This single mounting hole enables the unit to be rotated when mounted on
the focal point of an antenna.
Figure 3.5
IBUC In Line Mounting Configuration
