System Components | 2-11
Note: The IBUC
2G
pictured in
Figure 2.3
has an N-type connector at J1
.
Note:
For more information about connector types, breather valve system and mounting
options, refer to sections: System Cabling Requirements on page 3-13, System
Pressurization on page 3-12 and Antenna Mounting on page 3-8 respectively
.

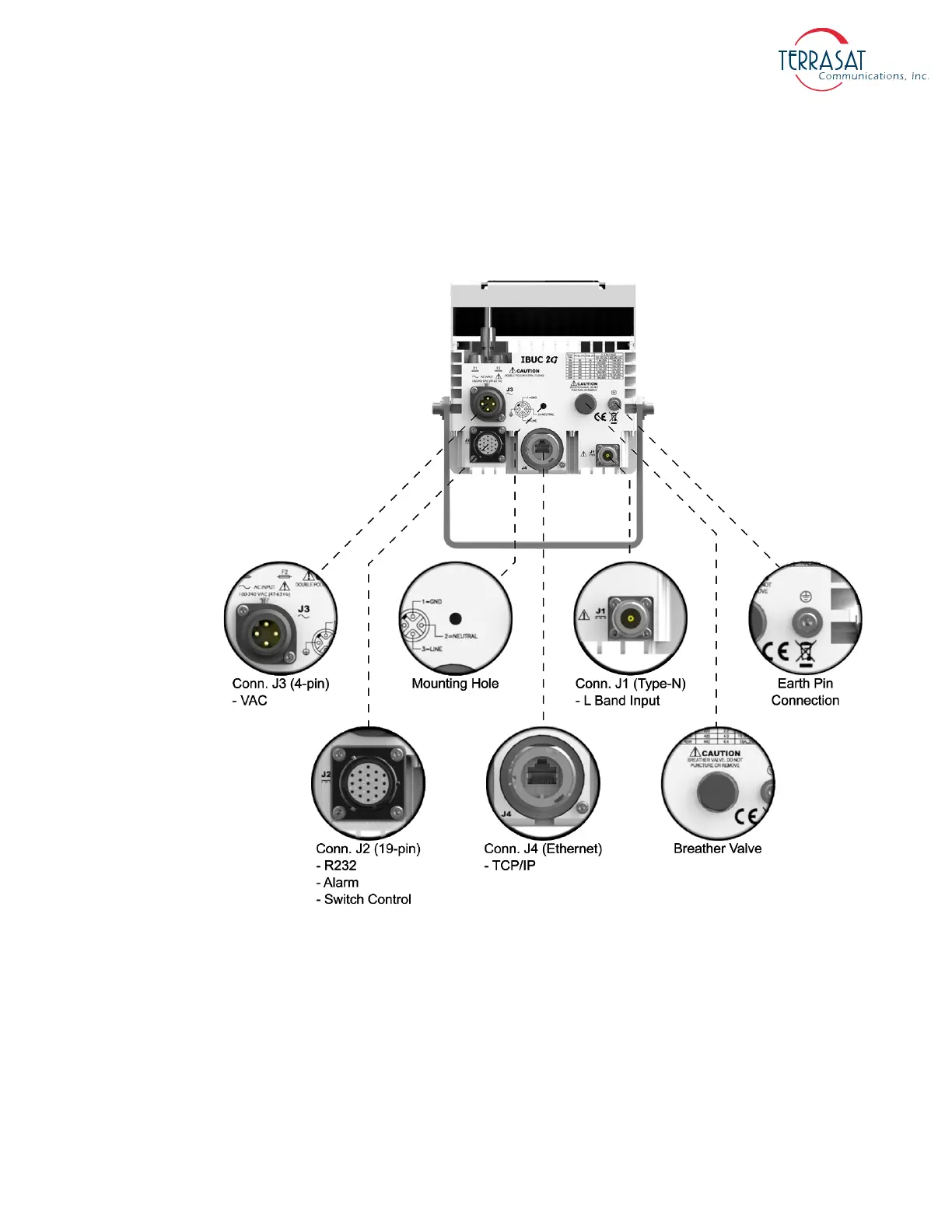

Figure 2.3
Front Panel of an AC-powered IBUC 2G
