2-10 | Cyber Hardened IBUC 2, IBUC 2e, IBUC 2G, IBUC R, IBUC G Operations Manual: Functional Description
Note:
The IBUC 2 pictured in Figure 2.2 has a N-Type connection at connector J1.
Note:
For more information about connector types, breather valve system and mounting
options, refer to sections: System Cabling Requirements on page 3-13, System
Pressurization on page 3-12 and Antenna Mounting on page 3-8 respectively.

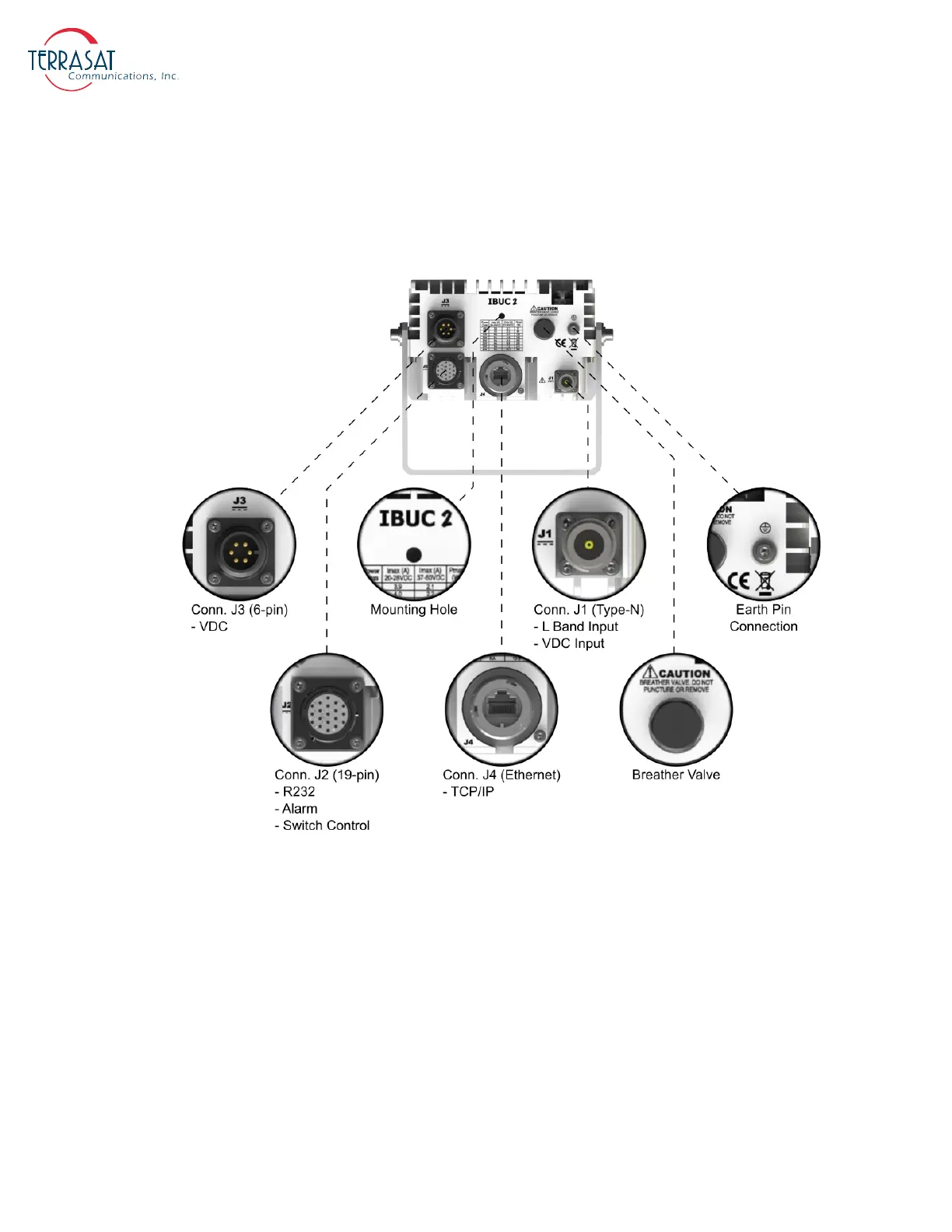

Figure 2.2
Front Panel of a DC-powered IBUC 2
